Defi Link - Meter Fitting Kit

Defi-Link Fitting Kit is to mount a gauge on an A-pillar or a steering column. This product is for 2 1/16"(52mm), 2 3/8"(60mm), and 3 1/8"(80mm) gauges.

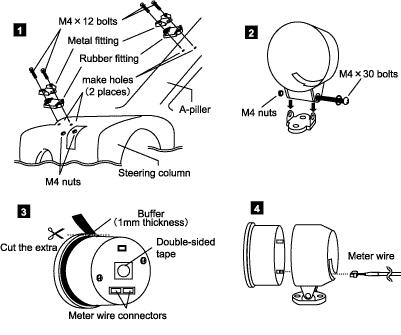

Installation

1 Take the resin part of A-pillar or steering column apart.
2.Drill 2 holes in the resin(0.17in diameter).
3. Fasten the metal fitting and rubber fitting with two M4 x 12 bolts and two nuts to the resin.
4. Fix the resin part where it was.
5. Fix a meter cup(sold separately) to the metal fitting with a M4 x 30 bolt and a nut.
6. Attach the buffer around the meter.
7. Fit the meter into the meter cup(sold separately) and connect wires.
