HKS Turbo Kit - GT-SS - GTR

HKS GT-SS Turbine kit to suit a Nissan Skyline GTR BNR32, BCNR33 and BNR34.

HKS GT Ball-Bearing Sport Turbo Upgrades are bolt-on turbo upgrade kits for factory turbo-charged vehicles. These kits consist of new, larger HKS GT turbos designed to bolt directly on to the stock manifold(s). HKS GT Sport Turbos are designed and sized to promote maximum power and response for maximum airflow throughout the RPM band. From the HKS precision cast turbine and compressor housings to the specially designed blades, each turbo is crafted to provide high levels of performance and quality.

Designed exclusively for the GT-R turbine. Turbine size is within the allowed horsepower of 600ps for a normal engine and it provides enough capacity for maximum performance.

Top output in the high-rpm range is made possible without sacrificing response in the low-rpm range by using a ball bearing turbo as opposed to the metal turbine for the factory-designated unit.

The clearance and shape of the compressor wheel, compressor housing and turbo housing are redesigned to optimum specs. Output in low and medium to high-rpm ranges are now enhanced.

In each kit reinforced adjustable actuators are attached. The spring constant is increased by 50% over the N1 spec. It prevents any pressure drop in the high-boost region. This gives you precise control in the 0.8~1.6km/sq.cm boost range.

The Turbo Kit contains:
- 2 metal- type exhaust manifold gaskets, which is resistant to manifold leak are included.

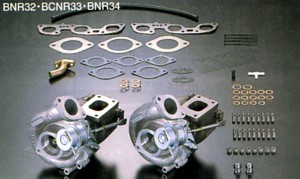

- All gaskets, bolts are included into this kit. Everything that is in the picture.
- Actuators attached

Photographed by nengun performance
