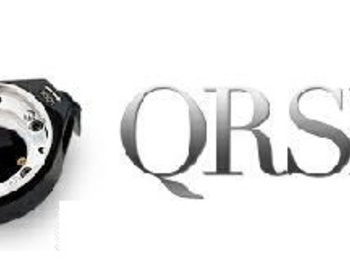

Works Bell Rapfix QRS II

Nengun Introduce the New Rapfix QRS Which has cleared the NAPAC standard (a standard for after market products in Japan).

A screwing test was done to check the operation of steering wheel to radial power. There was not any change in the shape after being tested with live loads of 29.7kg.m (291N.m). Moreover, there was not any change in the shape after a bending test of dead loads of 19.8kg.m (194N.m) in order to examine the effect when a driver impacts the steering wheel in an accident. In the screwing test, there were no damages when a load of 45kg.m (441N.m) was done; and in the bending test, there were no damages when a 28kg.m (274N.m) load is done.


Mechanics

Attach the steering plate with steering wheel and attach Rapfix QRS body with steering boss kit. It is possible to propagate the operation to radical direction by corresponding the overhung steel balls with the four holes in the steering plate. Furthermore, the three steel balls grip to the middle and lock the steering plate firmly by operating the directions of Rapfix QRS’ cover called “roller & ball lock system” (patent pending). Therefore, the operation to thrust direction is done perfectly.

Two foldable levers are designed to make the turning of the cover simple. It is also a safety device because the cover cannot be turned without moving the lever. The electrode installed in the plate and Rapfix QRS body, when aligned together in the “attached” position allows full operation of the horn button.
