Toda High Power Profile Piston - 2ZZ Kit
Toda

The Toda High Power Profile Piston Upgrade Kit for the Toyota 2ZZ increases capacity to 1933cc to enable high power and response from the Toyota engine.

  • Retains its original bore size, but extends stroke from 85 to 91.5mm
  • Two versions are available, one with high compression for N/A and one with low compression for turbo or supercharger use
  • Toyota's 1Z flywheel must be used with this kit, the 2ZZ clutch disk and plate can still be used
  • The Toda Heavy Duty Oil Pump is also recommended when upgrading the 2ZZ engine
  • See more details from the Toda website under Additional Details

Specifications
  • Bore x Stroke: 82 x 91.5mm
  • Displacement: 1833cc
  • Crown Volume: High Comp +1.5cc/-0.34cc - Low Comp -11.5cc/-13.38cc
  • Reference C/R: Standard Head GK t=0.7mm - High Comp 12.0:1 - Low Comp 9.5:1

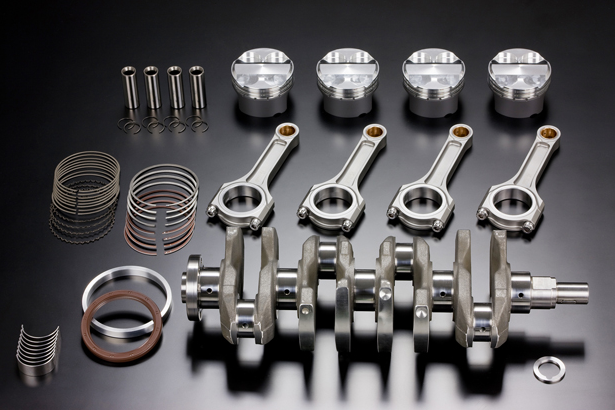

Kit Includes everything in the photo:
  • Toda Forged Piston Kit - 82mm High or Low Compression Spec
  • SPL crankshaft (Long stroke, High accuracy dynamic balanced)
  • I section chrome molly connecting-rods (Fully floating with bush & balanced)
  • Connecting-rod bearings (Bearing clearance has been adjusted)

Vehicle Product Price Order
Celica - ZZT231
Toyota - Celica ZZT231 - 2ZZ-GE - 1933c - 82.0x91.5mm + Flywheel Option
13001-2ZZ-000-I
DISCONTINUED
This part is no longer available
Celica - ZZT231
Toyota - Celica ZZT231 - 2ZZ-GE - 1933c - 82.0x91.5mm + Flywheel Option
13001-2ZZ-000-I
DISCONTINUED
This part is no longer available
Celica - ZZT231
Toyota - Celica ZZT231 - 2ZZ-GE - High Comp - 1933c - 82.0x91.5mm - 12.0:1 + Flywheel Option
13001-2ZZ-000-I
DISCONTINUED
This part is no longer available
Celica - ZZT231
Toyota - Celica ZZT231 - 2ZZ-GE - High Comp - 1933c - 82.0x91.5mm - 12.0:1 + Flywheel Option
13001-2ZZ-000-I
DISCONTINUED
This part is no longer available
Celica - ZZT231
Toyota - Celica ZZT231 - 2ZZ-GE - Low Comp for Turbo/SC - 1933c - 82.0x91.5mm - 9.5:1 + Flywheel Option
13001-2ZZ-T00-I
DISCONTINUED
This part is no longer available
Celica - ZZT231
Toyota - Celica ZZT231 - 2ZZ-GE - Low Comp for Turbo/SC - 1933c - 82.0x91.5mm - 9.5:1 + Flywheel Option
13001-2ZZ-T00-I
DISCONTINUED
This part is no longer available
Celica - ZZT231
Toyota - Celica ZZT231 - 2ZZ-GE - Low Comp for Turbo/SC - 1933c - 82.0x91.5mm - 9.5:1
13001-2ZZ-T00-I
DISCONTINUED
This part is no longer available
Celica - ZZT231
Toyota - Celica ZZT231 - 2ZZ-GE - Low Comp for Turbo/SC - 1933c - 82.0x91.5mm - 9.5:1
13001-2ZZ-T00-I
DISCONTINUED
This part is no longer available
