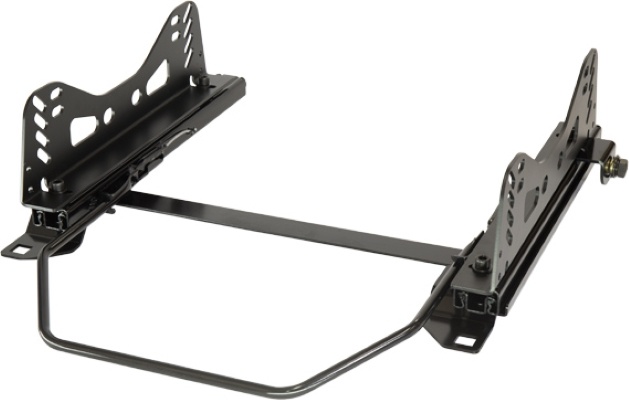

N Sport S1 Seat Rail

Features

• Designed for full bucket seats and other side-mount seats.
• Height adjustments can be made with the side stays alone.
• Ideal for vehicles in which the position of the original-equipment seat can be raised easily, such as those with a low seating position or thin seat surface.
• A Super-low-profile model is available for vehicles requiring the lowest possible seating position.
• The general-purpose side stays accommodate many seat models.
• Distortion of sliders due to welding heat is eliminated, resulting in smoother sliding action.  The sliders and mounting frame are secured with rivets.  The sliders and seat belt buckle stay are secured with rivets.
• General-purpose side stay for many seats
  • Recaro: RS-G series (*1), TS-G series (*1), SP-G series, SP-GT series, SP-GN series, SP-A, PRO RACER SP series
  • Bride: All full bucket seat models (*2)
  • edirb: 031, 042, 067
  • Sparco: REV series, EVO series, PRO2000 series, CIRCUIT series, S-LIGHT series, ADV series (*3), PRO ADV series, QRT-V series (*1), CORSA
  • Cobra: IMOLA series, SUZUKA, EVOLUTION
  • OMP: HTE-ONE (*1), PROTOTIPO (*1), WRC (*1), ARS (*1)
  • Racetech: RT1000, RT1000LB, RT4009, RT9009
  • Naniwaya: All models of full bucket seats
• Seat drop: 10–30 mm for Standard model; 30–50 mm for Super-low-profile model
• Side Stay Adjustment: 1 step / 12 mm
• Mounting size
  • Side stay front and back 290 (± 5) x left and right 355 to 450 mm
  • Side stay front and back 260 (± 5) x left and right 355 to 450 mm
  • Side stay front and back 233 (± 5) x left and right 355 to 450 mm
