Defi Advance CR - Black

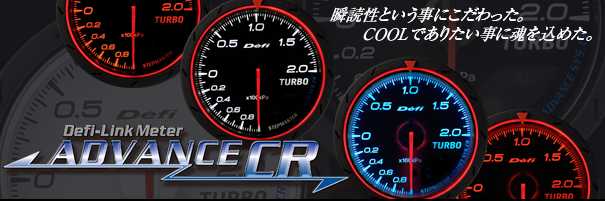

The Defi ADVANCE CR Black Link meters, released in early 2009, feature the distinctive black face when turned off.
Type: Fuel Pressure - Color: Black - Diameter: 60mm - Range: 0 ~ 600kPa - DF09002
Type: Oil Pressure - Color: Black - Diameter: 60mm - Range: 0 ~ 1000kPa - DF08902
Type: Oil Pressure - Color: Black - Diameter: 60mm - Range: 0 ~ 1000kPa - DF08902
Type: Oil Temperature - Color: Black - Diameter: 60mm - Range: 50 ~ 150C - DF09102
Type: Tachometer - Color: Black - Diameter: 60mm - Range: 0 ~ 9000rpm - DF09404
Type: Turbo 200kPa - Color: Black - Diameter: 52mm - Range: -100 ~ +200kPa - DF07802
Type: Water Temperature - Color: Black - Diameter: 52mm - Range: 20 ~ 120C - DF08402
Type: Water Temperature - Color: Black - Diameter: 60mm - Range: 20 ~ 120C - DF09202
Type: Water Temperature - Color: Black - Diameter: 60mm - Range: 20 ~ 120C - DF09202
Type: Oil Pressure - Color: Black - Diameter: 52mm - Range: 0 ~ 1000kPa - DF08102
Type: Oil Temperature - Color: Black - Diameter: 52mm - Range: 50 ~ 150C - DF08302
The Defi ADVANCE CR Black Link meters, released in early 2009, feature the distinctive black face when turned off combined with multi illumination colors and distinctive new design.
Features
- Black face when switched off for high security
- Black Face can display in Amber backlight or White backlit
- White Face can display in Amber backlight or Blue backlight
- Both models have a red ring around the outside at night
- Features Warning Buzzer, peak function and up to 3 minutes replay
- English Instruction Manual also available in PDF format
- Can be combined with 60mm ADVANCE CR meters for the complete set.
Notes

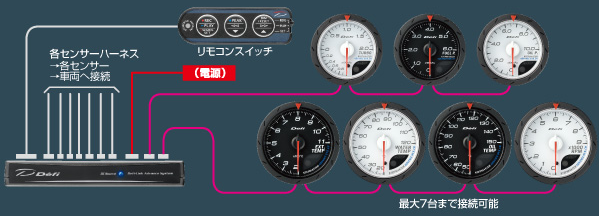

Requires the new Defi Link ADVANCE Control Unit for operation which features a new remote for easy operation.
| Type | Color | Diameter | Range | Price | Order | |
|---|---|---|---|---|---|---|
| DF09302 | ||||||
| Exhaust Temperature | Black | 60 mm | 200 ~ 1100C | | DISCONTINUED This part is no longer available | |
| DF09002 | ||||||
| Fuel Pressure | Black | 60 mm | 0 ~ 600kPa | | DISCONTINUED This part is no longer available | |
| DF08802 | ||||||
| Intake Manifold Pressure | Black | 60 mm | -100 ~ +20kPa | | DISCONTINUED This part is no longer available | |
| DF08102 | ||||||
| Oil Pressure | Black | 52 mm | 0 ~ 1000kPa | | DISCONTINUED This part is no longer available | |
| DF08902 | ||||||
| Oil Pressure | Black | 60 mm | 0 ~ 1000kPa | | DISCONTINUED This part is no longer available | |
| DF08302 | ||||||
| Oil Temperature | Black | 52 mm | 50 ~ 150C | | DISCONTINUED This part is no longer available | |
| DF09102 | ||||||
| Oil Temperature | Black | 60 mm | 50 ~ 150C | | DISCONTINUED This part is no longer available | |
| DF09404 | ||||||
| Tachometer | Black | 60 mm | 0 ~ 9000rpm | | DISCONTINUED This part is no longer available | |
| DF08702 | ||||||
| Turbo 120kPa | Black | 60 mm | -100 ~ 120kPa | | DISCONTINUED This part is no longer available | |
| DF07802 | ||||||
| Turbo 200kPa | Black | 52 mm | -100 ~ +200kPa | | DISCONTINUED This part is no longer available | |
| DF08602 | ||||||
| Turbo 200kPa | Black | 60 mm | -100 ~ 200kPa | | DISCONTINUED This part is no longer available | |
| DF08402 | ||||||
| Water Temperature | Black | 52 mm | 20 ~ 120C | | DISCONTINUED This part is no longer available | |
| DF09202 | ||||||
| Water Temperature | Black | 60 mm | 20 ~ 120C | | DISCONTINUED This part is no longer available | |
About Defi
Defi is the aftermarket brand of Nippon Seiki Co., Ltd., which was founded in December 1946 in Nagaoka, Niigata Prefecture, to make clocks and instrument gauges. A project team formed in 1995 to bring its gauge technology to tuners, and the Defi brand launched in 1996 with a retrofit head-up display.
In 1998 it introduced the Defi-Link Meter, and in 2018 the DSDF data logger added a GNSS lap timer. Defi makes gauges, displays and sensors for Japanese cars, and tests them at circuit events.
