ATS Carbon Hybrid LSD

The ATS Carbon Hybrid LSD is designed to provide the best of both a carbon LSD and a metal LSD.

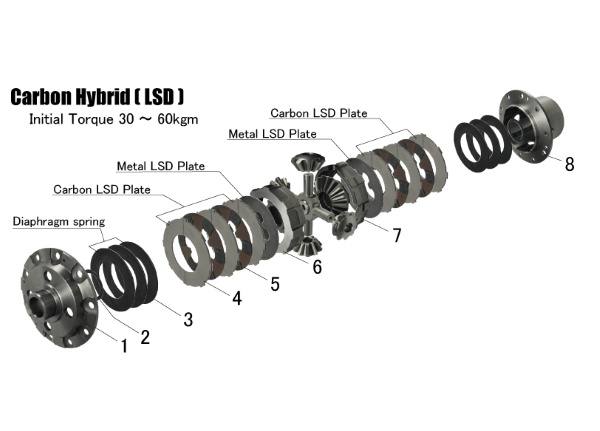

The ATS Carbon Hybrid LSD is designed to provide the best of both a carbon LSD and a metal LSD.  The Carbon Hybrid LSD will reduce the wear on the carbon plates and extend the life of your LSD, while also reducing the initial torque of the unit with arranging the placing metal plates between the carbon plates.  So the Carbon Hybrid LSD feels like a cull carbon LSD, but provides improved durability.

Features

  • Full Carbon LSD feel with improved durability
  • Since the plate in contact with the cam ring wears out quickly, the two carbon plates are replaced with metal plates in the hybridization.
  • Arrange the metal plate and carbon plate symmetrically with respect to the cross axis.
  • There is a difference in thickness between the metal plate and the carbon plate, so adjust this difference by changing the thickness of the spacer or bevel washer.
  • The initial torque is adjusted in the range of 30-60Kg/m based on the experience and achievements gained by ATS.
Vehicle Type Position Price Order
CNRB109161
Fairlady Z - 370Z - Z34
2008/12~2021/09 - VQ37VHR - AT
1.5 Way
Rear
USD $ 1,423.67
USD $ 1,482.99
223,872 JPY
CNRA109161
Fairlady Z - 370Z - Z34
2008/12~2021/09 - VQ37VHR - AT
2 Way
Rear
USD $ 1,423.67
USD $ 1,482.99
223,872 JPY
Vehicle Type Position Price Order
CHFC8793T
Civic Type R - FD2
2007/3~2010/8
1 Way
Front
USD $ 1,416.95
USD $ 1,475.99
222,816 JPY
CHFB8793T
Civic Type R - FD2
2007/3~2010/8
1.5 Way
Front
USD $ 1,302.79
USD $ 1,357.07
204,864 JPY
Vehicle Part Type Position Price Order
CSRB9511
Impreza WRX - GC8
Applied D~G - 1996/9~2000/8
1.5 Way
Rear
USD $ 1,228.92
USD $ 1,280.12
193,248 JPY
CSRA9511
Impreza WRX - GC8
Applied D~G - 1996/9~2000/8
2 Way
Rear
USD $ 1,228.92
USD $ 1,280.12
193,248 JPY
CSFB9523
Impreza WRX STI - GDB
2000/10~2007/05 - EJ20 Turbo - Spec C
Extended oil hole type
1.5 Way
Front
USD $ 1,544.54
USD $ 1,608.90
242,880 JPY
CSRB9511
Impreza WRX STI - GDB
Applied A~G - 2000/10~2007/5
1.5 Way
Rear
USD $ 1,228.92
USD $ 1,280.12
193,248 JPY
CSRA9511
Impreza WRX STI - GDB
Applied A~G - 2000/10~2007/5
2 Way
Rear
USD $ 1,228.92
USD $ 1,280.12
193,248 JPY
CSRB9511
Impreza WRX STI - GRB
2007/10~
1.5 Way
Rear
USD $ 1,228.92
USD $ 1,280.12
193,248 JPY
CSRA9511
Impreza WRX STI - GRB
2007/10~
2 Way
Rear
USD $ 1,228.92
USD $ 1,280.12
193,248 JPY
Yes! We ship to the United States and 150 other countries worldwide!

Add parts to your shopping cart and begin checkout to select from Japan Post EMS & ePacket, FedEx, DHL and more shipping options.

About ATS

ATS

ATS, short for Active Traction Service, is a maker of limited-slip differentials and clutches in Okayama. ATS was established in October 1995 as an LSD specialist, and also makes cross-ratio and final gears.

The ATS range includes metal and carbon LSDs and metal, carbon and hybrid clutches, with carbon versions made together with CFC Design and sold from 2001, for cars including the GT-R, Civic Type R, GR Yaris and 86/BRZ.
