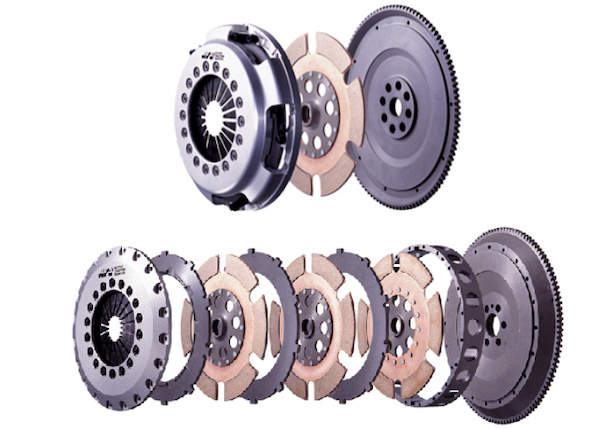

ATS Metal Clutch - Twin Plate

The ATS Metal Clutch series are a high performance clutch for the street an competition

The ATS Metal Clutch series are a high performance clutch for the street an competition.

By using a 230mm (9") ultra large disk, which is the largest in class, they have dramatically improved the torque capacity of their metal clutch series.  At the same time, ATS have managed to achieve a significant weight savings through the use of high quality components and manufacturing processing technology.  Thus providing low vibration, reliability and outstanding performance in big power transmissions.  With single, twin and triple plate options available, you can be sure to find the right balance of shifting comfort and response.  Even in high demand situations, the ATS Metal Clutch Series constantly demonstrates stable clutch performance.

Features

  • By adopting the world's largest 230mm (9") friction discs, the torque transmission capacity is greatly improved.
  • Thorough weight reduction of the disk produces an excellent shift feel and outstanding response.
  • High precision assembly realizes low vibration. It has a structure that minimizes center blur and supports high power.
  • Outstanding durability by thorough testing of such things as the material of the component parts, and examination of heat treatment.
  • It has proven high performance and high durability to withstand 1200 horsepower driving at the test stage.
  • By adopting a large diameter plate, suppressing heat generation due to heavy use of half clutch.
  • Easy to handle by choosing the field, there is no breakage defect due to thermal deformation of the plate.
  • Secure wide half clutch area by independent processing of surround spring and related parts.
  • It also possesses characteristics that make judder very hard to occur.
  • It is possible to change from triple to twin depending on the number of inner plates. Also, by changing the flywheel.

Vehicle Part Price Order
Supra A80 MKIV - JZA80
2JZ-GE
RT23210-11
USD $ 999.71
USD $ 1,110.78
146,520 JPY
Supra A80 MKIV - JZA80
2JZ-GE
RT23210-11
USD $ 999.71
USD $ 1,110.78

Vehicle Part Type Operation Clamping Force Price Order
Lancer Evolution IV - CN9A
4G63T - 5MT or 6MT
RPM23H230-13S
Spec 2 Pull Type 1300kg
USD $ 1,260.89
USD $ 1,313.43
184,800 JPY
Lancer Evolution IX - CT9A
4G63T - 5MT or 6MT
RPM23H230-13S
Spec 2 Pull Type 1300kg
USD $ 1,260.89
USD $ 1,313.43
184,800 JPY
Lancer Evolution V - CP9A
4G63T - 5MT or 6MT
RPM23H230-13S
Spec 2 Pull Type 1300kg
USD $ 1,260.89
USD $ 1,313.43
184,800 JPY
Lancer Evolution VI - CP9A
4G63T - 5MT or 6MT
RPM23H230-13S
Spec 2 Pull Type 1300kg
USD $ 1,260.89
USD $ 1,313.43
184,800 JPY
Lancer Evolution VII - CT9A
4G63T - 5MT or 6MT
RPM23H230-13S
Spec 2 Pull Type 1300kg
USD $ 1,260.89
USD $ 1,313.43
184,800 JPY
Lancer Evolution VIII - CT9A
4G63T - 5MT or 6MT
RPM23H230-13S
Spec 2 Pull Type 1300kg
USD $ 1,260.89
USD $ 1,313.43
184,800 JPY
Lancer Evolution IV - CN9A
4G63T - 5MT or 6MT
Type Spec 2
Operation Pull Type
Clamping Force 1300kg
RPM23H230-13S
USD $ 1,260.89
USD $ 1,313.43
Lancer Evolution IX - CT9A
4G63T - 5MT or 6MT
Type Spec 2
Operation Pull Type
Clamping Force 1300kg
RPM23H230-13S
USD $ 1,260.89
USD $ 1,313.43
Lancer Evolution V - CP9A
4G63T - 5MT or 6MT
Type Spec 2
Operation Pull Type
Clamping Force 1300kg
RPM23H230-13S
USD $ 1,260.89
USD $ 1,313.43
Lancer Evolution VI - CP9A
4G63T - 5MT or 6MT
Type Spec 2
Operation Pull Type
Clamping Force 1300kg
RPM23H230-13S
USD $ 1,260.89
USD $ 1,313.43
Lancer Evolution VII - CT9A
4G63T - 5MT or 6MT
Type Spec 2
Operation Pull Type
Clamping Force 1300kg
RPM23H230-13S
USD $ 1,260.89
USD $ 1,313.43
Lancer Evolution VIII - CT9A
4G63T - 5MT or 6MT
Type Spec 2
Operation Pull Type
Clamping Force 1300kg
RPM23H230-13S
USD $ 1,260.89
USD $ 1,313.43

Vehicle Part Clamping Force Price Order
Civic Type R - FK2
RH232130-11
1100kg
USD $ 1,486.05
USD $ 1,651.17
217,800 JPY
Civic Type R - FK2
RH232130-14
1350kg
USD $ 1,350.95
USD $ 1,501.06
198,000 JPY
Civic Type R - FK8
RH232130-11
1100kg
USD $ 1,486.05
USD $ 1,651.17
217,800 JPY
Civic Type R - FK8
RH232130-14
1350kg
USD $ 1,350.95
USD $ 1,501.06
198,000 JPY
Civic Type R - FK2
Clamping Force 1100kg
RH232130-11
USD $ 1,486.05
USD $ 1,651.17
Civic Type R - FK2
Clamping Force 1350kg
RH232130-14
USD $ 1,350.95
USD $ 1,501.06
Civic Type R - FK8
Clamping Force 1100kg
RH232130-11
USD $ 1,486.05
USD $ 1,651.17
Civic Type R - FK8
Clamping Force 1350kg
RH232130-14
USD $ 1,350.95
USD $ 1,501.06
