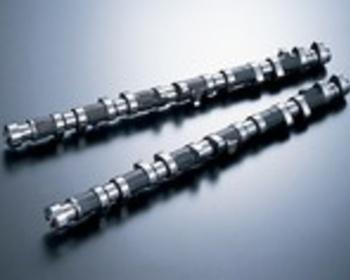

HKS Camshafts - Toyota

HKS high performance camshafts for Toyota vehicles are CAD designed to optimize torque and horsepower.

HKS high performance camshafts are CAD designed to optimize torque and horsepower over the widest possible power band. Each camshaft application is offered in multiple profiles, each with their own lift & duration characteristics to suit various levels of tuning. Lower profiles offer substantial gains in power and a broad useable power band with little compromise in drivability. Higher profiles offer greater increases in power, but are tailored for the higher RPM range and racing applications.

Features

HKS camshafts are not reground OEM units; they are machined from new billet cores which are constructed from a high nickel content iron alloy. By manufacturing all camshafts from billet cores, HKS is able to produce camshafts that equal or exceed the quality of the OEM units they are designed to replace. HKS camshafts are direct replacements and are designed to be compatible with the factory valve train components. However, due to the higher profile of HKS camshafts, HKS high performance valve springs are highly recommended, and required in certain applications.

Vehicle Part Type Duration Lift Price Order
1JZ-G(T)E
2202-RT078
Exhaust 264deg 9.0mm
USD $ 382.05
USD $ 405.13
1JZ-G(T)E
2202-RT080
Exhaust 272deg 9.0mm
USD $ 382.05
USD $ 405.13
1JZ-G(T)E
Not VVT-i
2202-RT077
Intake 264deg 9.0mm
USD $ 382.05
USD $ 405.13
1JZ-G(T)E
Not VVT-i
2202-RT079
Intake 272deg 9.3mm
USD $ 382.05
USD $ 405.13
1JZ-G(T)E
VVT-i
22002-AT003
Intake 264deg 8.6mm
USD $ 461.64
USD $ 489.54
1JZ-G(T)E
Type Exhaust
Duration 264deg
Lift 9.0mm
2202-RT078
USD $ 382.05
USD $ 405.13
1JZ-G(T)E
Type Exhaust
Duration 272deg
Lift 9.0mm
2202-RT080
USD $ 382.05
USD $ 405.13
1JZ-G(T)E
Not VVT-i
Type Intake
Duration 264deg
Lift 9.0mm
2202-RT077
USD $ 382.05
USD $ 405.13
1JZ-G(T)E
Not VVT-i
Type Intake
Duration 272deg
Lift 9.3mm
2202-RT079
USD $ 382.05
USD $ 405.13
1JZ-G(T)E
VVT-i
Type Intake
Duration 264deg
Lift 8.6mm
22002-AT003
USD $ 461.64
USD $ 489.54

Vehicle Part Type Duration Lift   Price Order
2JZ-G(T)E
2202-RT084
Exhaust 264deg 9.0mm
USD $ 382.05
USD $ 405.13
2JZ-G(T)E
2202-RT086
Exhaust 272deg 9.3mm
USD $ 382.05
USD $ 405.13
2JZ-G(T)E
22002-AT002
Exhaust 280deg 9.3mm
USD $ 382.05
USD $ 405.13
2JZ-G(T)E
Not VVT-i
2202-RT083
Intake 264deg 9.0mm
USD $ 382.05
USD $ 405.13
2JZ-G(T)E
Not VVT-i
2202-RT085
Intake 272deg 9.3mm
USD $ 382.05
USD $ 405.13
2JZ-G(T)E
VVT-i
22002-AT004
Intake 264deg 8.6mm
USD $ 461.64
USD $ 489.54
2JZ-G(T)E
Type Exhaust
Duration 264deg
Lift 9.0mm
2202-RT084
USD $ 382.05
USD $ 405.13
2JZ-G(T)E
Type Exhaust
Duration 272deg
Lift 9.3mm
2202-RT086
USD $ 382.05
USD $ 405.13
2JZ-G(T)E
Type Exhaust
Duration 280deg
Lift 9.3mm
22002-AT002
USD $ 382.05
USD $ 405.13
2JZ-G(T)E
Not VVT-i
Type Intake
Duration 264deg
Lift 9.0mm
2202-RT083
USD $ 382.05
USD $ 405.13
2JZ-G(T)E
Not VVT-i
Type Intake
Duration 272deg
Lift 9.3mm
2202-RT085
USD $ 382.05
USD $ 405.13
2JZ-G(T)E
VVT-i
Type Intake
Duration 264deg
Lift 8.6mm
22002-AT004
USD $ 461.64
USD $ 489.54

Vehicle Part Type Duration Lift Price Order
3S-GTE
Outer Shim Only (Early/Mid SW20/ST20#)
2202-RT064
Exhaust 264deg 9.0mm
USD $ 286.53
USD $ 303.85
3S-GTE
Outer Shim Only (Early/Mid SW20/ST20#)
Type Exhaust
Duration 264deg
Lift 9.0mm
2202-RT064
USD $ 286.53
USD $ 303.85

Vehicle Part Type Duration Lift Price Order
FA20
Applied A
22002-AT005
In stock and ready to ship!
Intake & Exhaust IN 260deg EX 266deg 11.7mm
USD $ 1,575.93
USD $ 1,671.18
FA20
Applied B-E
22002-AT006
Intake & Exhaust IN 260deg EX 266deg 11.7mm
USD $ 1,496.33
USD $ 1,586.78
FA20
Applied A
Type Intake & Exhaust
Duration IN 260deg EX 266deg
Lift 11.7mm
22002-AT005
In stock and ready to ship!
USD $ 1,575.93
USD $ 1,671.18
FA20
Applied B-E
Type Intake & Exhaust
Duration IN 260deg EX 266deg
Lift 11.7mm
22002-AT006
USD $ 1,496.33
USD $ 1,586.78
