Kakimoto Racing Muffler Gasket

Name: Kakimoto Racing - Muffler Gasket - Graphite - 2 - 14mm - 36mm - -
Brand: Kakimoto Racing
SKU: NC73937
Price: 1467 JPY
Availability: InStock
Rating: 5 (4 reviews)

The Kakimoto Muffler Gaskets are designed to replace the standard gaskets to ensure proper seal when replacing or reinstalling exhaust components.

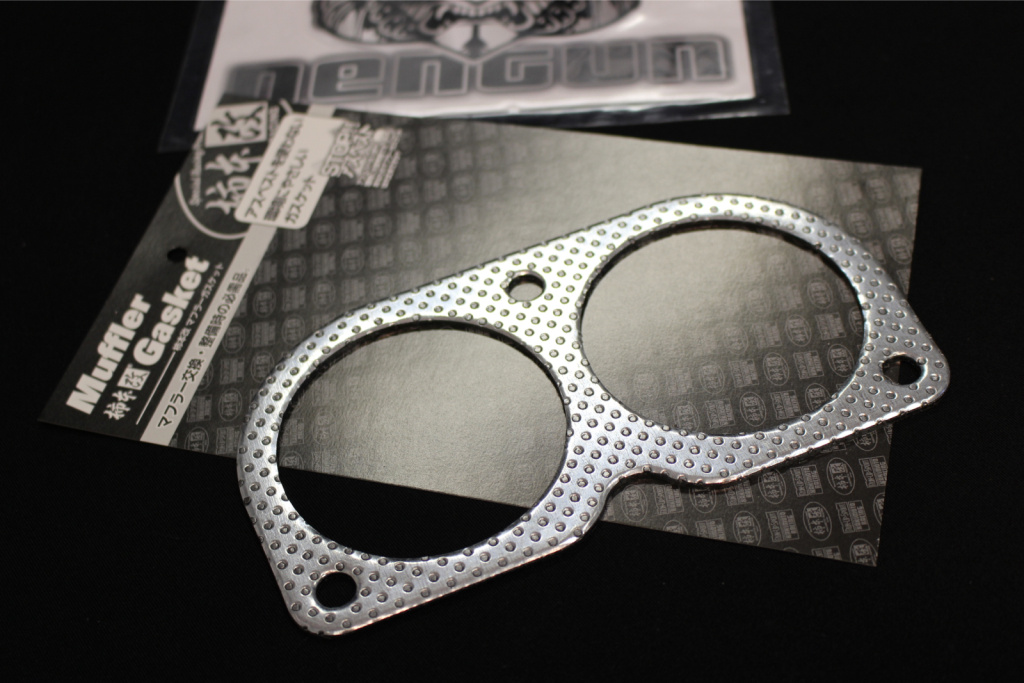

GK70203

Kakimoto Racing - Muffler Gasket

The Kakimoto Muffler Gaskets are designed to replace the standard gaskets to ensure proper seal when replacing or reinstalling exhaust components.

Features

All gaskets are manufactured in non-asbestos graphite
Operating temperature range from -240C to 500C
Maximum Pressure rated to 5.0MPa
Available in a large range of sizes and configurations
See the Kakimoto website reference below, please contact us if there are gaskets not available on our website you require

This part usually ships 11 days after payment.

Parts

Part	Material	Bolts	ID	Pitch1	Pitch2	Price
Ring Gasket - OD: 45mm x T: 5.6mm GKR04501	-	-	35mm	-	-	USD $ 10.54 1,654 JPY

Ring Gasket - OD:54mm x T: 6.0mm GKR05001	-	-	43.8mm	-	-	USD $ 10.54 1,654 JPY

Ring Gasket - OD: 62mm x T: 4.8mm GKR06501	-	-	50mm	-	-	USD $ 10.54 1,654 JPY

Ring Gasket - OD: 70mm x T: 2.5mm GK052202			52mm			USD $ 10.54 1,654 JPY

GK014201	Graphite	2	14mm	36mm	-	USD $ 9.35 1,467 JPY

GK043202	Graphite	2	43mm	70mm	74mm	USD $ 10.54 1,654 JPY

GK050203	Graphite	2	50mm	74mm	86mm	USD $ 10.54 1,654 JPY

GK052201	Graphite	2	52mm	90mm	101mm	USD $ 10.54 1,654 JPY

GK058001	Graphite	2	58mm	88mm	93mm	USD $ 10.54 1,654 JPY

GK060226	Graphite	2	60mm	84mm	88mm	USD $ 10.54 1,654 JPY

GK060215 Last one in stock!	Graphite	2	60mm	88mm	97mm	USD $ 10.54 1,654 JPY

GK060227	Graphite	2	60mm	102mm	108mm	USD $ 10.54 1,654 JPY

GK065203	Graphite	2	65mm	93mm	-	USD $ 10.54 1,654 JPY

GK065204	Graphite	2	65mm	105mm	-	USD $ 10.54 1,654 JPY

GK065205	Graphite	2	65mm	111mm	-	USD $ 10.54 1,654 JPY

GK070214	Graphite	2	70mm	95mm	107mm	USD $ 10.54 1,654 JPY

GK070215	Graphite	2	70mm	102mm	-	USD $ 10.54 1,654 JPY

GK070220	Graphite	2	70mm	119mm	-	USD $ 10.54 1,654 JPY

GK076201	Graphite	2	76mm	105mm	-	USD $ 10.54 1,654 JPY

GK080203	Graphite	2	80mm	105mm	-	USD $ 10.54 1,654 JPY

GK080204	Graphite	2	80mm	110mm	-	USD $ 10.30 1,616 JPY

GK050204	Graphite	3	50mm	64mm	-	USD $ 10.54 1,654 JPY

GK050202	Graphite	3	50mm	70mm	74mm	USD $ 10.54 1,654 JPY

GK060224	Graphite	3	60mm (x2)	121mm		USD $ 11.14 1,748 JPY

GK060004	Graphite	3	60mm (x2)	145mm	-	USD $ 11.14 1,748 JPY

GK060212	Graphite	3	60mm	50mm	-	USD $ 10.54 1,654 JPY

GK060216	Graphite	3	60mm	67mm	-	USD $ 10.54 1,654 JPY

GK060214	Graphite	3	60mm	75.5mm	-	USD $ 10.54 1,654 JPY

GK060228	Graphite	3	60mm	75mm	80mm	USD $ 10.54 1,654 JPY

GK060208 Last one in stock!	Graphite	3	60mm	78mm	-	USD $ 10.54 1,654 JPY

GK060218	Graphite	3	60mm	101mm		USD $ 10.54 1,654 JPY

GK060222	Graphite	3	60mm	112mm	-	USD $ 10.54 1,654 JPY

GK070203	Graphite	3	70mm (x2)	145mm		USD $ 10.86 1,704 JPY

GK070206	Graphite	3	70mm	69mm	-	USD $ 10.54 1,654 JPY

GK070221	Graphite	3	70mm	84mm	88mm	USD $ 10.54 1,654 JPY

GK070209	Graphite	3	70mm	88mm	-	USD $ 10.54 1,654 JPY

GK070213	Graphite	3	70mm	101mm	-	USD $ 10.54 1,654 JPY

GK070216	Graphite	3	70mm	103mm	-	USD $ 10.54 1,654 JPY

GK070219	Graphite	3	70mm	112mm	-	USD $ 10.54 1,654 JPY

GK080205	Graphite	3	80mm	111mm	-	USD $ 10.54 1,654 JPY

GK090202	Graphite	3	90mm	104mm	-	USD $ 11.14 1,748 JPY

GK060205	Graphite	4	60.8mm	85.5mm	-	USD $ 10.86 1,704 JPY

GK070205	Graphite	4	70.8mm	95.3mm	-	USD $ 10.86 1,704 JPY

GK080202	Graphite	4	80mm	106mm	-	USD $ 10.86 1,704 JPY

GK090201	Graphite	4	90mm	115mm	-	USD $ 11.14 1,748 JPY

Impreza Exclusive Gasket GK070210	Graphite	5	70mm	-	-	USD $ 11.14 1,748 JPY

Ring Gasket - OD: 45mm x T: 5.6mm

Material	-
Bolts	-
ID	35mm
Pitch1	-
Pitch2	-

GKR04501

USD $ 10.54

1,654 JPY

Ring Gasket - OD:54mm x T: 6.0mm

Material	-
Bolts	-
ID	43.8mm
Pitch1	-
Pitch2	-

GKR05001

USD $ 10.54

1,654 JPY

Ring Gasket - OD: 62mm x T: 4.8mm

Material	-
Bolts	-
ID	50mm
Pitch1	-
Pitch2	-

GKR06501

USD $ 10.54

1,654 JPY

Ring Gasket - OD: 70mm x T: 2.5mm

ID

52mm

GK052202

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	2
ID	14mm
Pitch1	36mm
Pitch2	-

GK014201

USD $ 9.35

1,467 JPY

Material	Graphite
Bolts	2
ID	43mm
Pitch1	70mm
Pitch2	74mm

GK043202

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	2
ID	50mm
Pitch1	74mm
Pitch2	86mm

GK050203

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	2
ID	52mm
Pitch1	90mm
Pitch2	101mm

GK052201

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	2
ID	58mm
Pitch1	88mm
Pitch2	93mm

GK058001

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	2
ID	60mm
Pitch1	84mm
Pitch2	88mm

GK060226

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	2
ID	60mm
Pitch1	88mm
Pitch2	97mm

GK060215

Last one in stock!

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	2
ID	60mm
Pitch1	102mm
Pitch2	108mm

GK060227

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	2
ID	65mm
Pitch1	93mm
Pitch2	-

GK065203

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	2
ID	65mm
Pitch1	105mm
Pitch2	-

GK065204

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	2
ID	65mm
Pitch1	111mm
Pitch2	-

GK065205

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	2
ID	70mm
Pitch1	95mm
Pitch2	107mm

GK070214

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	2
ID	70mm
Pitch1	102mm
Pitch2	-

GK070215

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	2
ID	70mm
Pitch1	119mm
Pitch2	-

GK070220

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	2
ID	76mm
Pitch1	105mm
Pitch2	-

GK076201

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	2
ID	80mm
Pitch1	105mm
Pitch2	-

GK080203

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	2
ID	80mm
Pitch1	110mm
Pitch2	-

GK080204

USD $ 10.30

1,616 JPY

Material	Graphite
Bolts	3
ID	50mm
Pitch1	64mm
Pitch2	-

GK050204

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	3
ID	50mm
Pitch1	70mm
Pitch2	74mm

GK050202

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	3
ID	60mm (x2)
Pitch1	121mm

GK060224

USD $ 11.14

1,748 JPY

Material	Graphite
Bolts	3
ID	60mm (x2)
Pitch1	145mm
Pitch2	-

GK060004

USD $ 11.14

1,748 JPY

Material	Graphite
Bolts	3
ID	60mm
Pitch1	50mm
Pitch2	-

GK060212

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	3
ID	60mm
Pitch1	67mm
Pitch2	-

GK060216

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	3
ID	60mm
Pitch1	75.5mm
Pitch2	-

GK060214

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	3
ID	60mm
Pitch1	75mm
Pitch2	80mm

GK060228

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	3
ID	60mm
Pitch1	78mm
Pitch2	-

GK060208

Last one in stock!

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	3
ID	60mm
Pitch1	101mm

GK060218

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	3
ID	60mm
Pitch1	112mm
Pitch2	-

GK060222

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	3
ID	70mm (x2)
Pitch1	145mm

GK070203

USD $ 10.86

1,704 JPY

Material	Graphite
Bolts	3
ID	70mm
Pitch1	69mm
Pitch2	-

GK070206

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	3
ID	70mm
Pitch1	84mm
Pitch2	88mm

GK070221

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	3
ID	70mm
Pitch1	88mm
Pitch2	-

GK070209

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	3
ID	70mm
Pitch1	101mm
Pitch2	-

GK070213

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	3
ID	70mm
Pitch1	103mm
Pitch2	-

GK070216

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	3
ID	70mm
Pitch1	112mm
Pitch2	-

GK070219

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	3
ID	80mm
Pitch1	111mm
Pitch2	-

GK080205

USD $ 10.54

1,654 JPY

Material	Graphite
Bolts	3
ID	90mm
Pitch1	104mm
Pitch2	-

GK090202

USD $ 11.14

1,748 JPY

Material	Graphite
Bolts	4
ID	60.8mm
Pitch1	85.5mm
Pitch2	-

GK060205

USD $ 10.86

1,704 JPY

Material	Graphite
Bolts	4
ID	70.8mm
Pitch1	95.3mm
Pitch2	-

GK070205

USD $ 10.86

1,704 JPY

Material	Graphite
Bolts	4
ID	80mm
Pitch1	106mm
Pitch2	-

GK080202

USD $ 10.86

1,704 JPY

Material	Graphite
Bolts	4
ID	90mm
Pitch1	115mm
Pitch2	-

GK090201

USD $ 11.14

1,748 JPY

Impreza Exclusive Gasket

Material	Graphite
Bolts	5
ID	70mm
Pitch1	-
Pitch2	-

GK070210

USD $ 11.14

1,748 JPY

Yes! We ship to the United States and 150 other countries worldwide!

Add parts to your shopping cart and begin checkout to select from Japan Post EMS & ePacket, FedEx, DHL and more shipping options.
