Monster Sport F100-M Turbo Kit Ver2 for Cappuccino

Monster Sport offer their F100-M Turbo Kit Ver2 for the Cappuccino (F6A).

Monster Sport offer their F100-M Turbo Kit Ver2 for the Cappuccino (F6A).  This kit has been reborn with new type of multi-hole injection and an ECU with an overall improved map.  With this kit a stable 100ps (73.6kw) rating was achieved by optimum fuel injection and ignition timing control.  This kit includes all gaskets necessary for mounting the turbos to ensure a reliable installation.  This kit requires an ECU trade-in, so you will need to send in your current ECU prior to this kit being shipped.  This helps to ensure the best possible price for you.

Features

  • Improved Version 2
  • Increased power

Specifications

Full range computer product specification

  • Speed ​​limiter: Release
  • Rotation limiter (rpm): 9300
  • Corresponding boost pressure (kgf / cm2): About 1.2
  • Boost limiter: Release
  • Injector (cc / min): 295
  • Injector color: Engine color
  • Plug: #9

Turbocharger product specifications () Normal value

  • Maker: IHI
  • Model: RHB31FW
  • Design output (ps): 90 to 100 (60 to 80)
  • Compressor inlet diameter (mm): 30 (25)
  • Compressor outer diameter (mm): 40 (36)
  • Turbine outer diameter (mm): 39 (36)
  • Turbine outlet diameter (mm): 32 (28)
  • A/R: 9
  • Compressor trim: 74
  • Bearing: floating

Actuator specification

  • Adjustment: Yes
  • Spring: Enhancement
  • Factory relief pressure adjustment value (kgf / cm2): About 0.9

Available Vehicles Important

  • Gasoline: Lead-free, high-octane
  • Air Cleaner: Open type or pure exchange
  • Compression ratio: normal

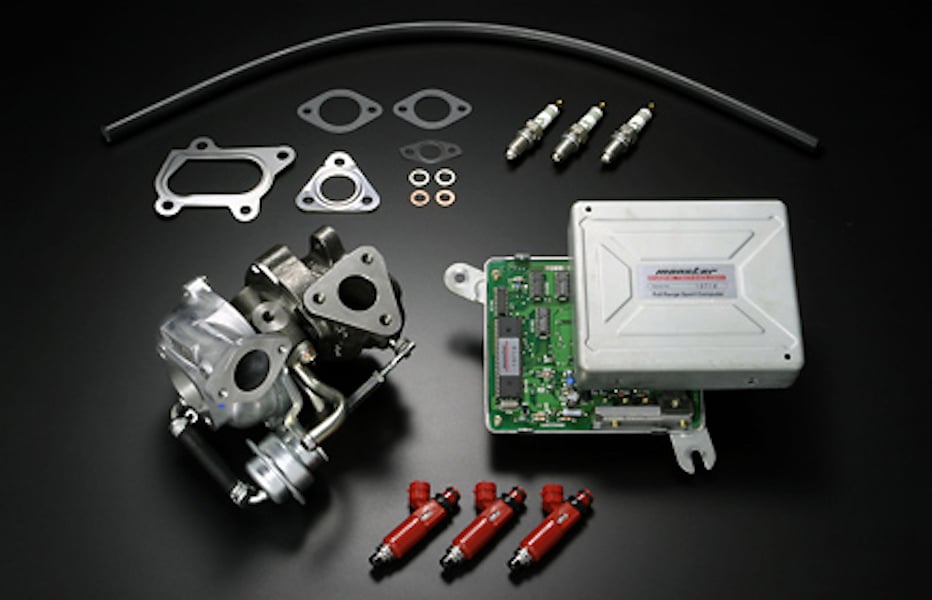

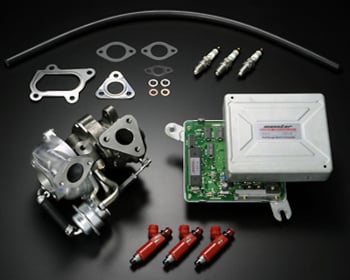

Kit Includes

  • RHB31 turbocharger × 1
  • Turbo gasket set × 1
  • Full range sports computer × 1 (ECU will be trade-in system)
  • Injector × 3
  • Iridium plug # 9 × 3
  • Water hose × 1

Notes

  • It is mandatory to send in your current ECU before your order can be processed.  Not all ECUs are eligible for the trade-in program, so please ask before placing your order.
  • Competition Parts Only
