Toda 3SG(SXE10) Increased Capacity 2200 KIT I Type Low Comp (for TURBO/SC)

TODA have developed the 3SG(SXE10) kits to increase the capacity of your engine to either 2161cc or 2211cc, depending on the kit you choose.  These are designed specifically for cars with Turbos or Superchargers.

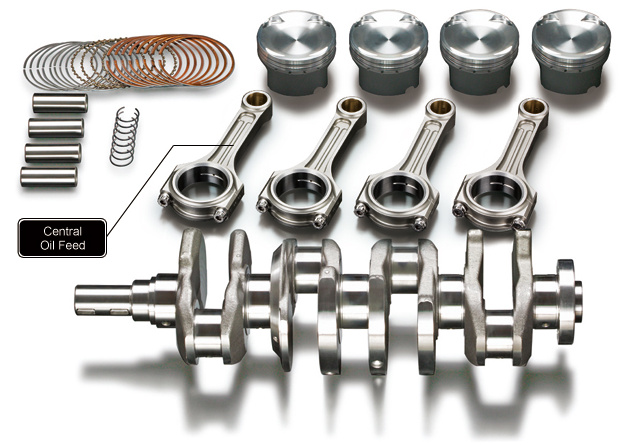

KIT Contents:

• TODA forged piston KIT ø86.00mm/ø87.00mm (2161cc/2211cc)
• TODA Special crankshaft (Long stroke, High accuracy dynamic balanced)
• TODA I Section Strengthened Connecting-rods (Fully floating with bush & balanced)

13001-3SG-2T0-I

• Bore×Stroke: ø86.00×93mm
• Displacement: 2161cc
• Crown Volume (*1): -25.7cc/-33.3cc
• Projection Height (*2): -1.3mm
• Reference C/R (*3): Standard head ≈ 8.6:1

13001-3SG-2T1-I

• Bore×Stroke: ø87.00×93mm
• Displacement: 2211cc
• Crown Volume (*1): -25.7cc/-33.4cc
• Projection Height (*2): -1.3mm
• Reference C/R (*3): Standard head ≈ 8.8:1

*1:Crown volume is measured "from the piston shoulder"/"from the deck of the block".

*2:Piston shoulder height is measured from the deck of the block.

*3:The compression ratios given above are only to be taken as a guide, measurements are required.
