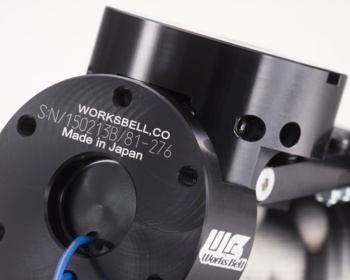

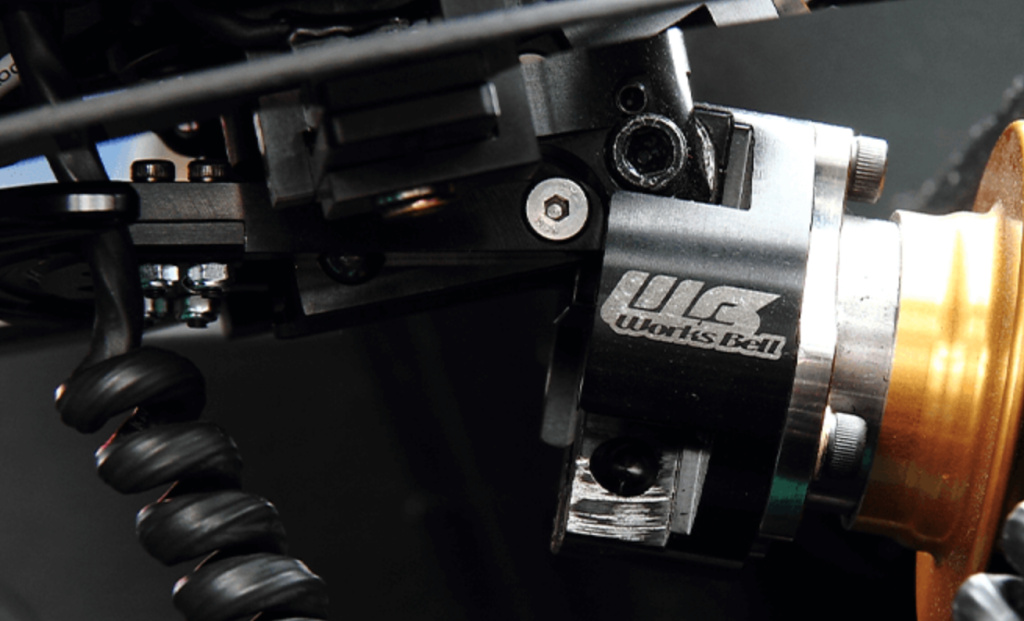

Works Bell RAPFIX GTC-R
The Works Bell RAPFIX GTC-R has been developed for racing where driver changing takes place.
Works Bell - RAPFIX - GTC-R
Works Bell - RAPFIX - GTC-R
Works Bell - RAPFIX - GTC-R
Works Bell - RAPFIX - GTC-R
Works Bell - RAPFIX - GTC-R
Works Bell - RAPFIX - GTC-R
Works Bell - RAPFIX - GTC-R

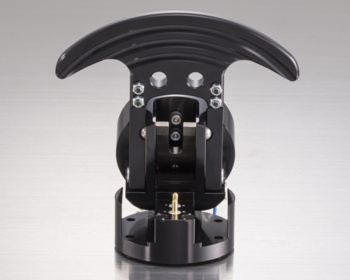

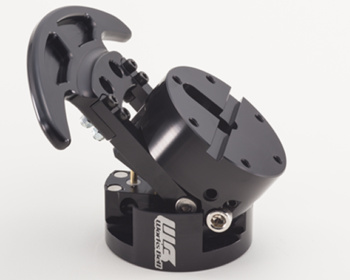

The Works Bell RAPFIX GTC-R has been developed for racing where driver changing takes place. Instead of attaching and detaching the Quick Release products, bouncing the steering wheel (tilt up) is much easier to complete driver-changing action.
In order to meet the need, we renew the Rapfix GTC which was released for cars designed for street use to Rapfix GTC-R as a special parts used for competition.
Features
- For competition cars Applicable steering wheels :
- Any wheel matching a PCD 50.8mm, three holes Attachment style
- PCD50.8mm M5×P0.8 internal thread setting Main materials
- Plug = aluminum alloy A2024T4, ball=steel SUJ2 Size
- Length 46.5mm, diameter 60mm (basic diameter)
- Plane shape : width 120mm, depth 111.6mm Weight : 300g (plan)

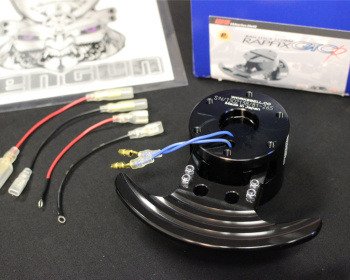

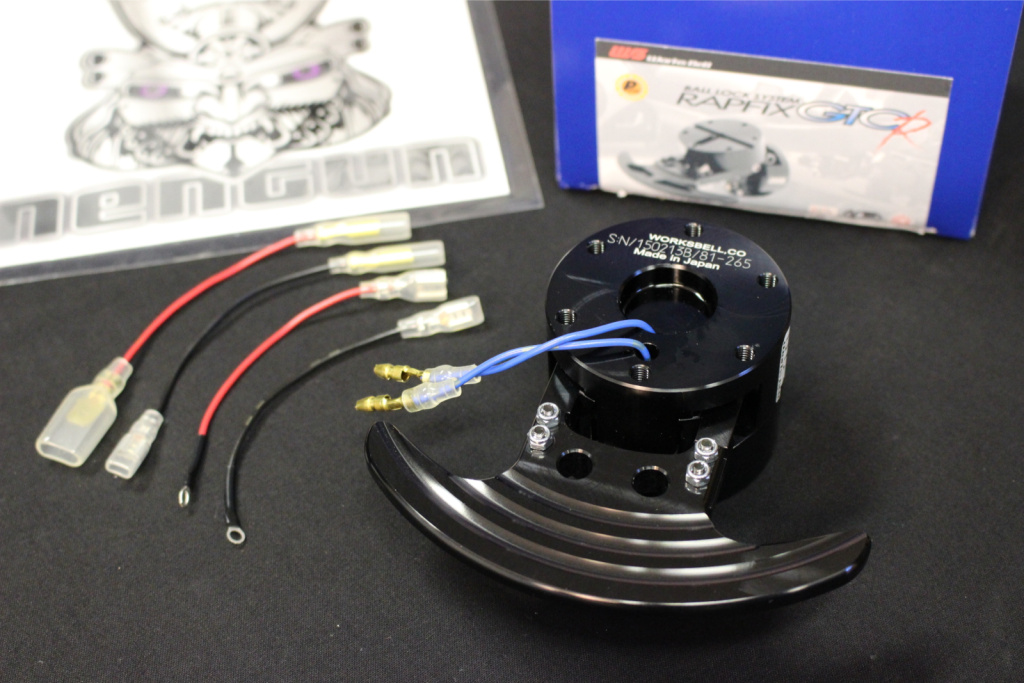

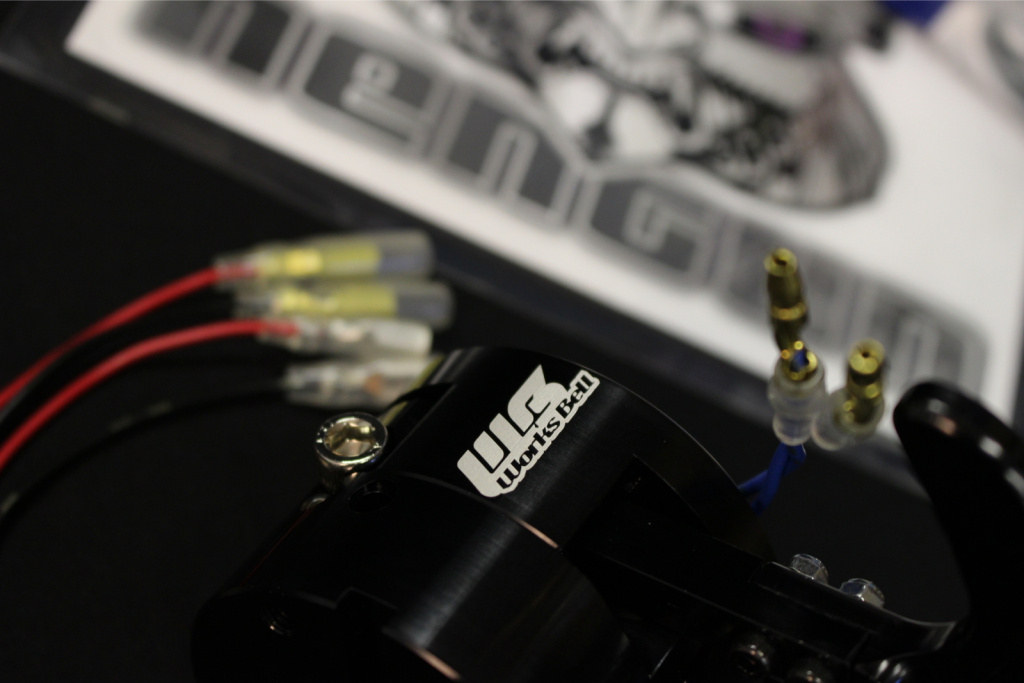

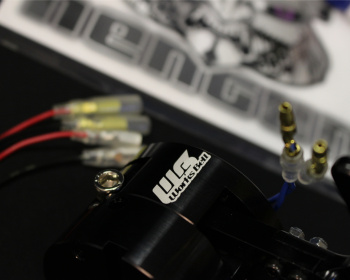

- It is developed especially for competition cars. Three PCD50.8mm M5P0.8 screw holes are stored in the installation side of the plug that is attached to the car side. The same Six PCD50.8mm M5P0.8 tap holes are stored in the installation side of the steering wheel. Two electric points are set up for option in order to correspond to various electric functions. Furthermore, wiring is set up on the installation side of the steering wheel in order to fulfil the convenience.
- The NAPAC standard test (a standard for after market products in Japan) has been done. A screwing test was done to check the operation of steering wheel to radial power. There was not any change in the shape after being pounded by dead loads of 29.7kg.m (291N.m). Moreover, there was not any change in the shape after a bending test of dead loads of 19.8kg.m (194N.m) in order to examine the effect when a driver impacts the top of the steering wheel in an accident.

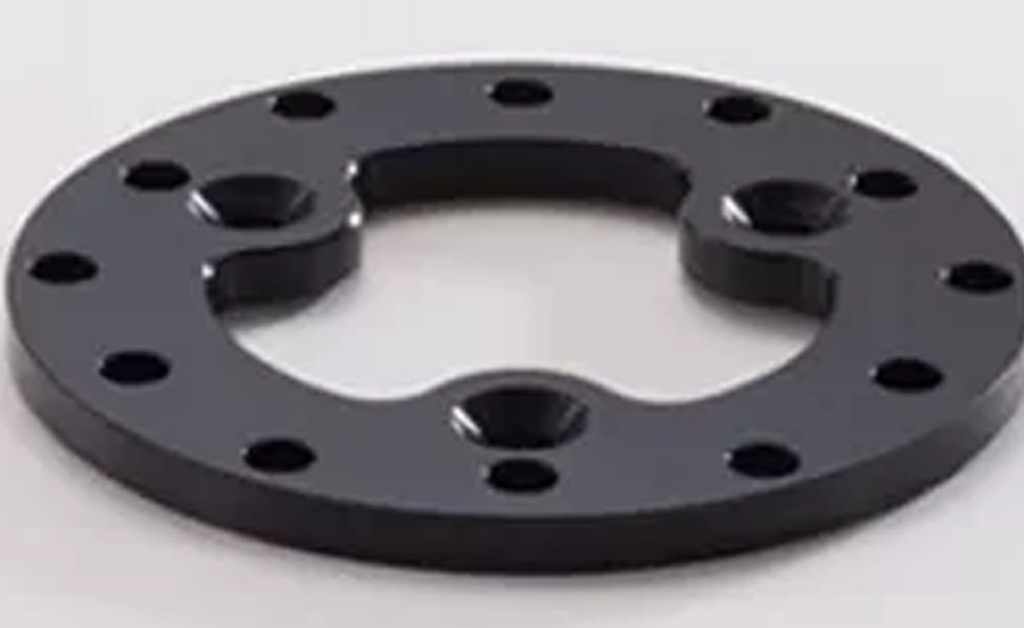

- If you would like to use for street use than the 3H-6H exchange adapter is needed. GTC-R RAPFIX Racing 3 holes 6 holes
We ship to the United States and 150 other countries.
Japan Post EMS & ePacket, FedEx, DHL and more.
| Vehicle | Part | Price | Order | |
|---|---|---|---|---|
| GTC-R-3H-6H | ||||

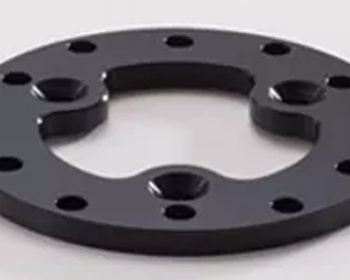

| Universal | Optional 3-hole to 6-hole conversion adapter | | | |
| Color | Price | Order | |
|---|---|---|---|

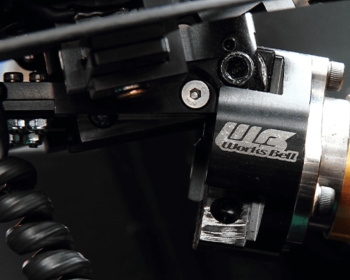

| GTC-R | |||
| Black | | DISCONTINUED This part is no longer available | |
About Works Bell
Works Bell is a steering boss maker established in February 1983, with its head office in Setagaya, Tokyo, and a factory in Chino, Nagano. Its roots go back to 1950, as a machining workshop in Meguro, Tokyo.
It is known for the Rapfix quick-release steering hub, launched in 2001, and the SRD kit, which keeps a car's factory steering-wheel switches working after a wheel swap. Its products fit cars such as the Subaru WRX STI, and it also makes paddle shifters and steering wheels.
