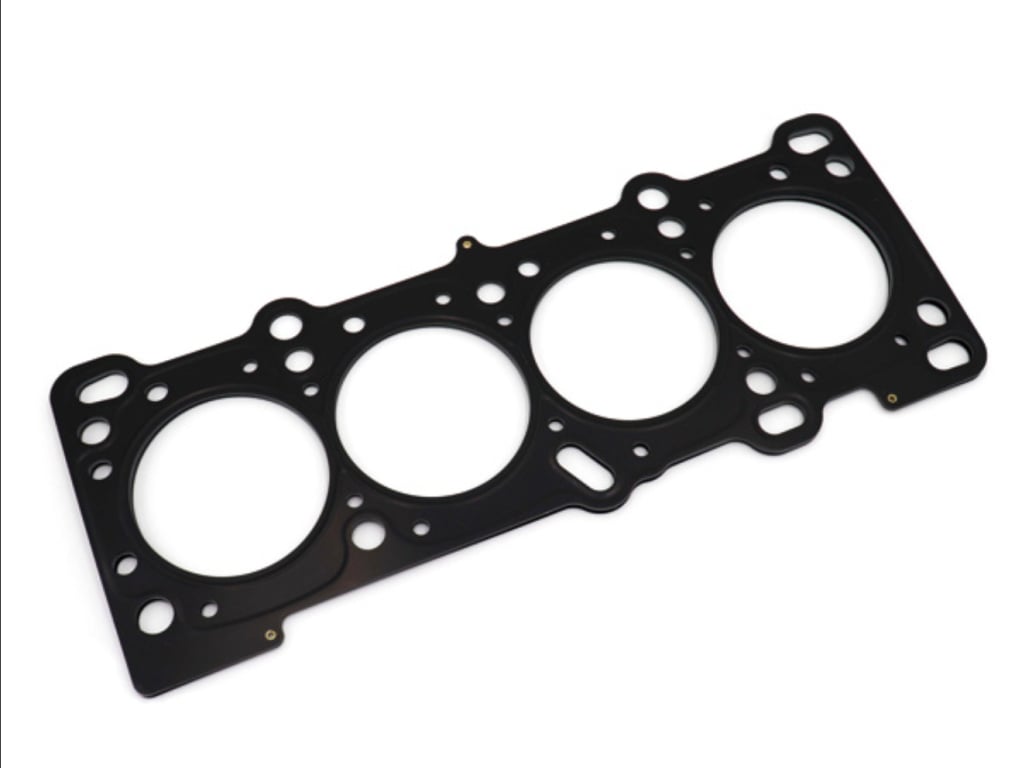

Maruha Motors Metal Head Gasket for Mazda BP

Maruha Motors offer their Metal Head Gasket for the Mazda BP engine in the Roadster.

Maruha Motors offer their Metal Head Gasket for the Mazda BP engine in the Roadster.  Available in different specs to suit your build.

Features

  • Bead Type:  Using stainless material and pressing technique we make a bead.  The bead part generates stress on the head/block’s bonding surface and the sealing becomes better.  The contact pressure becomes uniform and can get a stable holding power.  Stable sealing.
  • Stopper Type:  To be able to resist the supercharger the stopper is a very important measurement to prevent blow-by.  The surrounding of the bore of the plate that bears the core of the gasket is bent back.  It is different from the grommet type. The stopper's bending occurs only on one side and the side where there is no bending becomes flat.  The bead is being adjusted to the flat metal part and the sealing is being controlled.  Because of the optimal ramp from the stopper the cylinder’s surrounding can better resist the contact pressure and the strength of the supercharger.  It is a gasket that aims for a turbo car’s long life.
  • Metal Material:  It is very convenient because of the thermal conductivity of the metal.  The heat cannot accumulate easily and the heat from the combustion chamber is being smoothly conducted to the block side and blow-by caused by melting can be prevented.  The plate on the top of the bead produces a more stable sealing effect thanks to the resistive force.

Notes

  • For reference: Genuine product: 84.5mm 0.8mm

Vehicle Product Thickness Bore Price Order
Roadster - NA8C
for supercharger
mar0000005
2.0mm 83.5mm
USD $ 199.15
Roadster - NA8C
for supercharger
mar0000006
2.0mm 86.0mm
USD $ 199.15
Roadster - NA8C
mar0000003
0.6mm 86.0mm
USD $ 199.15
Roadster - NA8C
mar0000004
0.8mm 86.0mm
USD $ 199.15
Roadster - NA8C
mar10012802
1.2mm 86.0mm
USD $ 199.15
Roadster - NB8C
for supercharger
mar0000005
2.0mm 83.5mm
USD $ 199.15
Roadster - NB8C
for supercharger
mar0000006
2.0mm 86.0mm
USD $ 199.15
Roadster - NB8C
mar0000003
0.6mm 86.0mm
USD $ 199.15
Roadster - NB8C
mar0000004
0.8mm 86.0mm
USD $ 199.15
Roadster - NB8C
mar10012802
1.2mm 86.0mm
USD $ 199.15
Product Order
Roadster - NA8C
for supercharger
Thickness: 2.0mm
Bore: 83.5mm
mar0000005
USD $ 199.15
Roadster - NA8C
for supercharger
Thickness: 2.0mm
Bore: 86.0mm
mar0000006
USD $ 199.15
Roadster - NA8C
Thickness: 0.6mm
Bore: 86.0mm
mar0000003
USD $ 199.15
Roadster - NA8C
Thickness: 0.8mm
Bore: 86.0mm
mar0000004
USD $ 199.15
Roadster - NA8C
Thickness: 1.2mm
Bore: 86.0mm
mar10012802
USD $ 199.15
Roadster - NB8C
for supercharger
Thickness: 2.0mm
Bore: 83.5mm
mar0000005
USD $ 199.15
Roadster - NB8C
for supercharger
Thickness: 2.0mm
Bore: 86.0mm
mar0000006
USD $ 199.15
Roadster - NB8C
Thickness: 0.6mm
Bore: 86.0mm
mar0000003
USD $ 199.15
Roadster - NB8C
Thickness: 0.8mm
Bore: 86.0mm
mar0000004
USD $ 199.15
Roadster - NB8C
Thickness: 1.2mm
Bore: 86.0mm
mar10012802
USD $ 199.15

Product Thickness Bore Price Order
mar07030501
1.0mm 86.0mm
USD $ 199.15
Product Order
Thickness: 1.0mm
Bore: 86.0mm
mar07030501
USD $ 199.15
