Drivetrain

Corolla - EL31

EL31

Genuine Drivetrain parts for the Corolla OEM parts supplied direct from Toyota Japan and shipped worldwide.

Part		Price
Bolt (for Clutch Release Cylinder Setting)
91611-60825	Bolt (for Clutch Release Cylinder Setting)	DISCONTINUED
Bolt USD $ 1.82
91611-60840	Bolt	USD $ 1.82 288 JPY
Nut
94110-40800	Nut	DISCONTINUED
Screw USD $ 1.41
93540-14012	Screw	USD $ 1.41 223 JPY
Bolt USD $ 1.21
91611-60814	Bolt	USD $ 1.21 192 JPY

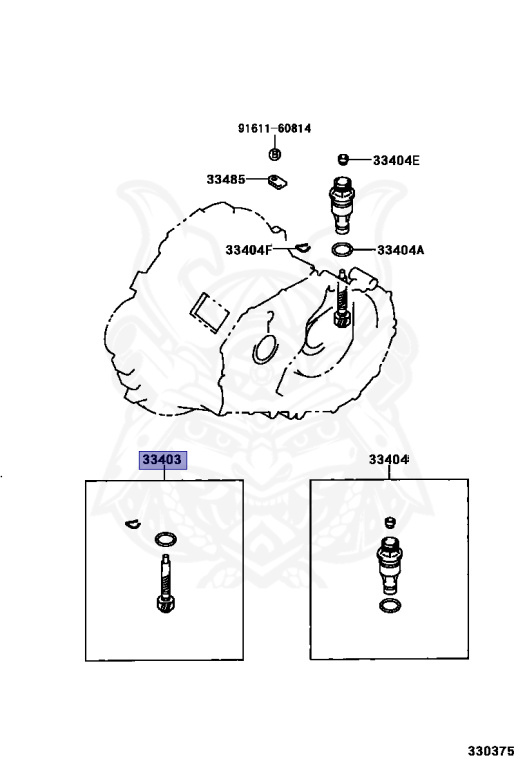

Gear Sub-assy, Speedometer Driven (mtm) USD $ 13.33
33403-19285	Gear Sub-assy, Speedometer Driven (mtm)	USD $ 13.33 2,112 JPY
WASHER USD $ 1.87
94622-11000	WASHER	USD $ 1.87 296 JPY
Clip USD $ 1.75
96991-10080	Clip	USD $ 1.75 277 JPY
Pin, Straight (for Front Drive Shaft) USD $ 1.62
90250-06003	Pin, Straight (for Front Drive Shaft)	USD $ 1.62 256 JPY
Pin, Ring (for Manual Transmission Case) USD $ 1.37
90253-15001	Pin, Ring (for Manual Transmission Case)	USD $ 1.37 217 JPY
Ring, Shaft Snap (for Select Spring No. 2 Seat) USD $ 1.10
90520-12003	Ring, Shaft Snap (for Select Spring No. 2 Seat)	USD $ 1.10 174 JPY
Lever, Shift, Inner No.1
33251-10050	Lever, Shift, Inner No.1	DISCONTINUED
PIN USD $ 1.23
90254-05002	PIN	USD $ 1.23 195 JPY
GASKET USD $ 1.52
90430-12008	GASKET	USD $ 1.52 241 JPY
Ball, Shift Detent, No.2 USD $ 1.62
90360-10003	Ball, Shift Detent, No.2	USD $ 1.62 256 JPY
PLUG (FOR DIFFERENTIAL LOCK SHIFT FORK SHAFT) USD $ 2.02
90341-12004	PLUG (FOR DIFFERENTIAL LOCK SHIFT FORK SHAFT)	USD $ 2.02 320 JPY
CONTROL SHAFT COVER USD $ 27.84
33506-12061	CONTROL SHAFT COVER	USD $ 27.84 4,412 JPY
Boot, Dust (for Shift & Select Lever Shaft) USD $ 5.53
33531-12020	Boot, Dust (for Shift & Select Lever Shaft)	USD $ 5.53 876 JPY

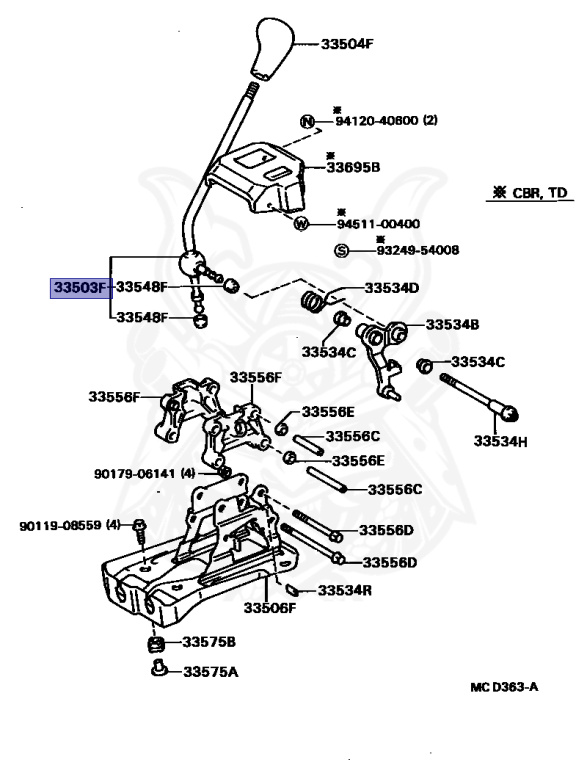

SHIFT LEVER SUB-ASSY (FOR FLOOR SHIFT) USD $ 22.23
33503-16150	SHIFT LEVER SUB-ASSY (FOR FLOOR SHIFT)	USD $ 22.23 3,522 JPY
BUSH (FOR SELECTING BELLCRANK NO.1) USD $ 2.34
90386-12013	BUSH (FOR SELECTING BELLCRANK NO.1)	USD $ 2.34 370 JPY

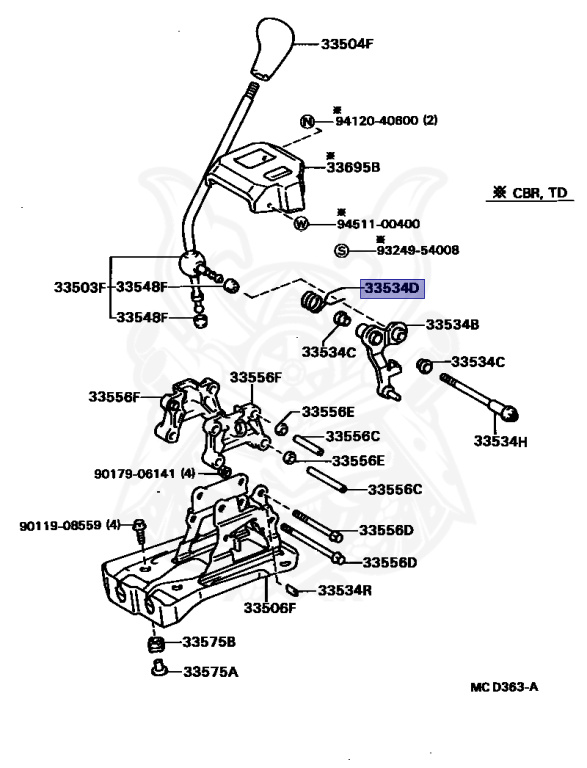

TORSION SPRING (FOR SELECTING BELLCRANK NO.1) USD $ 2.10
90508-20083	TORSION SPRING (FOR SELECTING BELLCRANK NO.1)	USD $ 2.10 332 JPY
Bush, No.1, Shift Lever (for Floor Shift) USD $ 3.24
33548-12021	Bush, No.1, Shift Lever (for Floor Shift)	USD $ 3.24 513 JPY
CUSHION (FOR TRANSMISSION SHIFT LEVER BALL SEAT) USD $ 2.10
90540-08016	CUSHION (FOR TRANSMISSION SHIFT LEVER BALL SEAT)	USD $ 2.10 332 JPY
Pin, Straight (for Rear Differential Carrier) USD $ 2.09
90250-08120	Pin, Straight (for Rear Differential Carrier)	USD $ 2.09 331 JPY
Ring, Hole Snap (for Output Shaft Rear Bearing) USD $ 2.22
90520-57002	Ring, Hole Snap (for Output Shaft Rear Bearing)	USD $ 2.22 352 JPY
Bearing (for Input Shaft Front) USD $ 13.58
90365-25021	Bearing (for Input Shaft Front)	USD $ 13.58 2,152 JPY
SHAFT SNAP RING (FOR INPUT SHAFT REAR BEARING) USD $ 1.41
90520-22010	SHAFT SNAP RING (FOR INPUT SHAFT REAR BEARING)	USD $ 1.41 224 JPY
RING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING) USD $ 2.36
90520-64002	RING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING)	USD $ 2.36 374 JPY
NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) USD $ 2.36
90179-18005	NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)	USD $ 2.36 374 JPY
Bearing (for Output Shaft Front) USD $ 28.20
90365-33005	Bearing (for Output Shaft Front)	USD $ 28.20 4,468 JPY
Bearing, Needle Roller (for 2nd Gear) USD $ 15.51
90364-32014	Bearing, Needle Roller (for 2nd Gear)	USD $ 15.51 2,458 JPY
Spacer (for 2nd Gear Bearing) USD $ 1.75
90560-32008	Spacer (for 2nd Gear Bearing)	USD $ 1.75 277 JPY
BEARING, NEEDLE ROLLER USD $ 14.22
90364-31002	BEARING, NEEDLE ROLLER	USD $ 14.22 2,253 JPY
BEARING, NEEDLE ROLLER (FOR 4TH GEAR) USD $ 11.31
90364-29002	BEARING, NEEDLE ROLLER (FOR 4TH GEAR)	USD $ 11.31 1,792 JPY
SPACER (FOR 4TH GEAR BEARING) USD $ 1.62
90560-29001	SPACER (FOR 4TH GEAR BEARING)	USD $ 1.62 256 JPY
BEARING, NEEDLE ROLLER (FOR 1ST GEAR) USD $ 17.86
90364-38007	BEARING, NEEDLE ROLLER (FOR 1ST GEAR)	USD $ 17.86 2,830 JPY
Gear, 5th
33036-12010	Gear, 5th	DISCONTINUED
SPACER (FOR 5TH GEAR BEARING) USD $ 1.62
90560-25006	SPACER (FOR 5TH GEAR BEARING)	USD $ 1.62 256 JPY
WASHER, 1ST GEAR THRUST USD $ 4.11
33348-12010	WASHER, 1ST GEAR THRUST	USD $ 4.11 651 JPY
Pin Or Ball (for 1st Gear Thrust Washer) USD $ 1.21
90360-05012	Pin Or Ball (for 1st Gear Thrust Washer)	USD $ 1.21 192 JPY
HUB, TRANSMISSION CLUTCH, NO.1 USD $ 42.83
33361-12030	HUB, TRANSMISSION CLUTCH, NO.1	USD $ 42.83 6,786 JPY
Ring, Shaft Snap (for Clutch Hub No. 1) USD $ 1.75
90520-29018	Ring, Shaft Snap (for Clutch Hub No. 1)	USD $ 1.75 277 JPY
HUB, TRANSMISSION CLUTCH, NO.2 USD $ 38.70
33362-12020	HUB, TRANSMISSION CLUTCH, NO.2	USD $ 38.70 6,132 JPY
RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) USD $ 1.69
90520-27046	RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)	USD $ 1.69 267 JPY
RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) USD $ 1.69
90520-27047	RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)	USD $ 1.69 267 JPY
RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) USD $ 1.69
90520-27048	RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)	USD $ 1.69 267 JPY
RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) USD $ 1.69
90520-27049	RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)	USD $ 1.69 267 JPY
RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) USD $ 1.69
90520-27050	RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)	USD $ 1.69 267 JPY
RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) USD $ 1.69
90520-27051	RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)	USD $ 1.69 267 JPY
SPRING, SYNCHROMESH SHIFTING KEY, NO.1 USD $ 2.22
33371-12020	SPRING, SYNCHROMESH SHIFTING KEY, NO.1	USD $ 2.22 351 JPY
SPRING, SYNCHROMESH SHIFTING KEY USD $ 1.89
33391-12030	SPRING, SYNCHROMESH SHIFTING KEY	USD $ 1.89 299 JPY
RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) USD $ 1.62
90520-18002	RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)	USD $ 1.62 256 JPY
RING, SHAFT SNAP USD $ 1.62
90520-18003	RING, SHAFT SNAP	USD $ 1.62 256 JPY
RING, SHAFT SNAP USD $ 1.62
90520-18004	RING, SHAFT SNAP	USD $ 1.62 256 JPY
RING, SHAFT SNAP USD $ 1.62
90520-18006	RING, SHAFT SNAP	USD $ 1.62 256 JPY
RING, SHAFT SNAP USD $ 1.62
90520-18007	RING, SHAFT SNAP	USD $ 1.62 256 JPY
RING, SHAFT SNAP USD $ 1.62
90520-18008	RING, SHAFT SNAP	USD $ 1.62 256 JPY
RING, SHAFT SNAP USD $ 1.62
90520-18009	RING, SHAFT SNAP	USD $ 1.62 256 JPY
SPACER, OUTPUT GEAR USD $ 7.43
33431-12010	SPACER, OUTPUT GEAR	USD $ 7.43 1,178 JPY
Gear, Speedometer Drive (mtm) USD $ 3.57
33481-12040	Gear, Speedometer Drive (mtm)	USD $ 3.57 565 JPY
Ring (for Clutch Master Cylinder Reservoir) USD $ 1.74
96151-02200	Ring (for Clutch Master Cylinder Reservoir)	USD $ 1.74 276 JPY
Nut USD $ 1.17
94120-40800	Nut	USD $ 1.17 185 JPY
Clutch pedal spring
90507-14003	Clutch pedal spring	DISCONTINUED
BUSH USD $ 1.75
90386-13192	BUSH	USD $ 1.75 277 JPY
