Defi ADVANCE RSII Gauges
Defi-Link Meter ADVANCE RSⅡ is a gauge series which needs to be connected to Defi-Link ADVANCE Control Unit SE/ADVANCE Control Unit.
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
Defi - ADVANCE RSII Gauges
The Defi ADVANCE RSII series of gauges is designed to complement Japanese vintage cars with a nostalgic atmosphere. The dial is available in black or white, with two illumination color variations for each dial color. The white dial is available with 80s Green or 90s Red illumination, while the black dial is available with 80s Green or 70s White. The illumination color is fixed and cannot be changed.
Features
- Design matches well with Japanese vintage cars with nostalgic features.
- Interactive communication advanced system is implemented. What is ADVANCE System?
- Gauges can be controlled from distance with the included switch unit.
- Flat glass and precise graduation scale give more needle accuracy and high visibility.
- Anti-reflective glass is used to reduce reflections on the glass and improve visibility.
- Opening and closing modes can be selected from 2 variations.
- The installation of additional gauges is easy. Just connect it with the other two gauges and attach the wire to Advance Control Unit.
- The light-emitting gauge always provides clear visibility with high contrast.
- The needle pointer driven by original stepping motor has a smooth instantaneous response to rapid acceleration of high performance vehicles.
- Self-diagnosis system turns the warning LED on to indicate any wire disconnection, short circuit and serial communication errors.
- Warning by buzzer sound when the warning LED is on (buzzer sound can be turned on / off).
- Peak value and warning value during driving are stored. Driving data can be stored and replayed up to 3 minutes.
- A mounting bracket, meter cup, regular position bezel are provided with this product.
- With both fuel pressure gauge and turbo installed, differential pressure can be monitored on the fuel pressure gauge screen.
Specifications
- The gauge diameter is 52mm and 60mm. Turbo 200kPa, intake manifold pressure, oil pressure, fuel pressure, oil temperature, water temperature, exhaust temperature, and tachometer are lined up.
- Four illumination color variations are available. The illumination color is fixed and cannot be switched. The brightness is turned down to make a nostalgic mood.
- Nippon Seiki’s NS logo is printed on the dial face instead of Defi logo. It’s because the NS logo used to be printed on our OEM gauges.
- The needle pointer is white while the illumination OFF and red while the illumination is ON.
- One ADVANCE Control Unit operates up to 7 gauges or displays in total.
- ADVANCE Control Unit necessary
- Anti-reflective glass is used on all models.
- Commercial attachment necessary
- Stepping motor: VS2
- Illumination color: White dial : 80s Green or 90s Red. Black dial : 80s Green or 70s White.
- The illumination color is fixed and cannot be changed.
- Illumination ON/OFF: interlocked with vehicle illumination switch
- LED illumination
- Indicator output
- Built-in indicators
- Opening mode/Ending mode
- Size: 52mm/60mm
- Applicable number of cylinders: 1, 2, 3, 4, 5, 6, and 8
- Mounting bracket attached
We ship to the United States and 150 other countries.
Japan Post EMS & ePacket, FedEx, DHL and more.

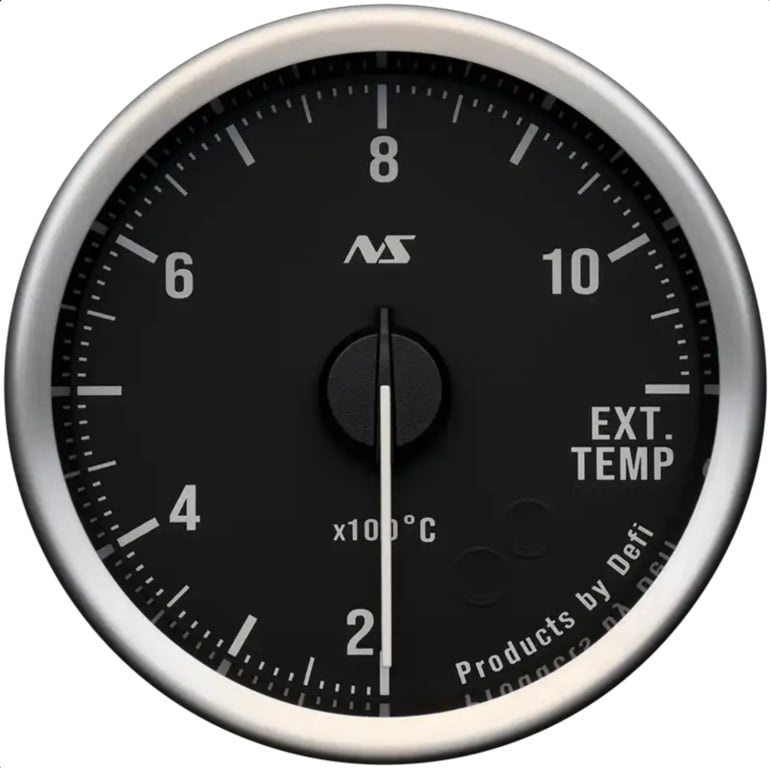

| Vehicle | Color | Diameter | Range | Price | Order | |
|---|---|---|---|---|---|---|
| DF21102 | ||||||

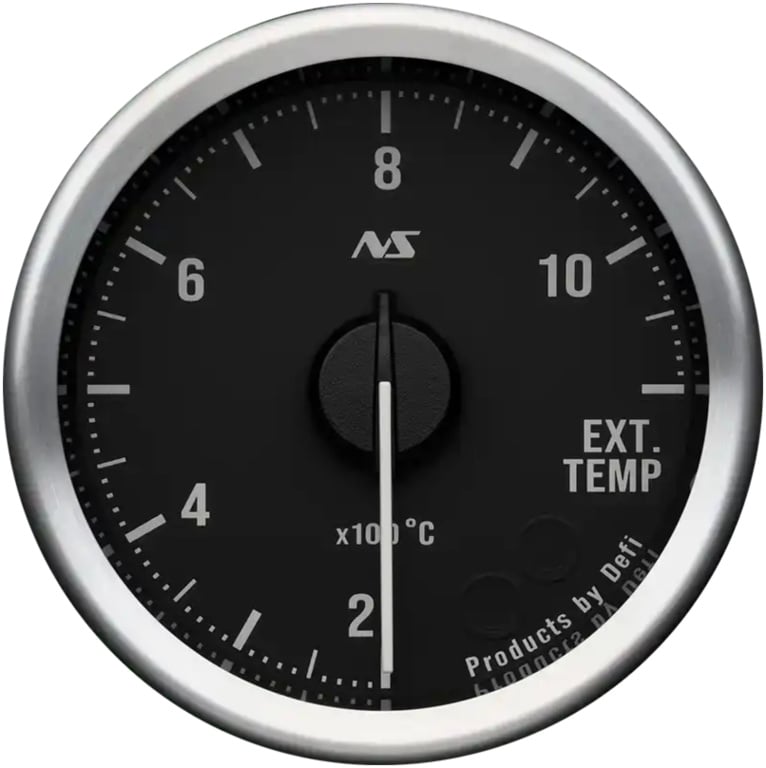

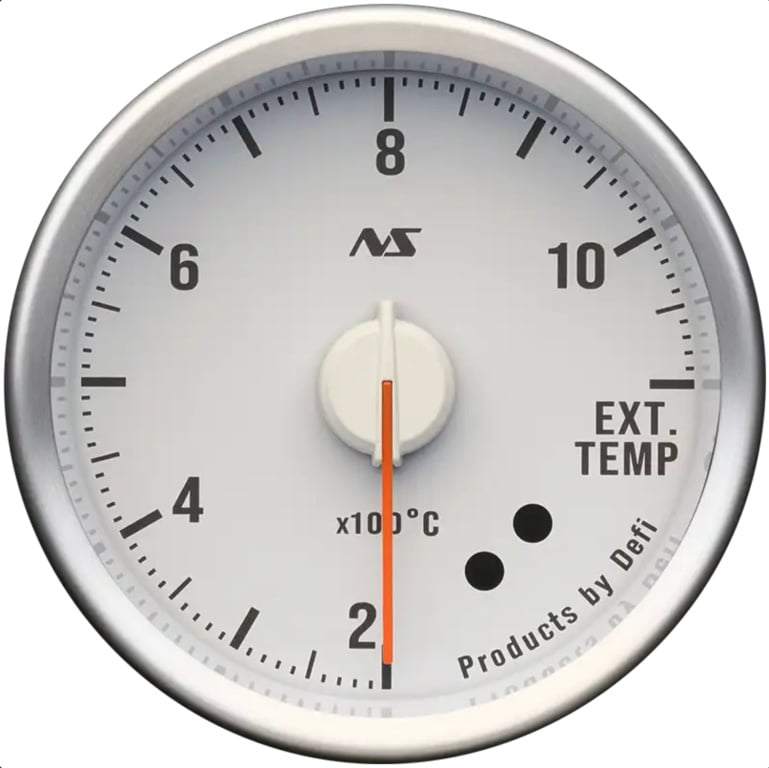

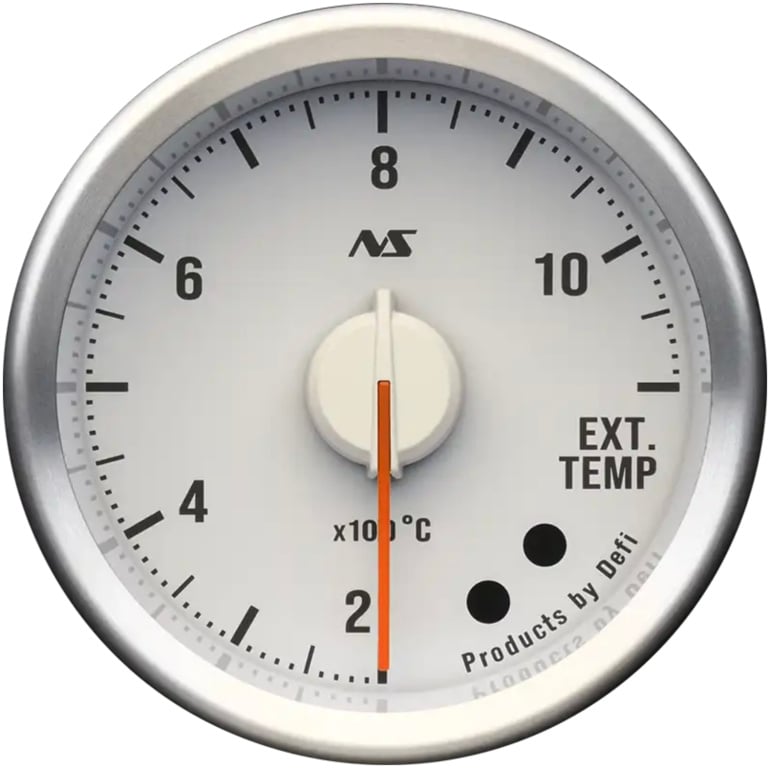

| Universal | Black / 70s White | 52 mm | 200℃ to 1100℃ | | | |
| DF21802 | ||||||
| Universal | Black / 70s White | 60 mm | 200℃ to 1100℃ | | | |
| DF21101 | ||||||
| Universal | Black / 80s Green | 52 mm | 200℃ to 1100℃ | | | |
| DF21801 | ||||||
| Universal | Black / 80s Green | 60 mm | 200℃ to 1100℃ | | | |
| DF21103 | ||||||
| Universal | White / 80s Green | 52 mm | 200℃ to 1100℃ | | | |
| DF21803 | ||||||
| Universal | White / 80s Green | 60 mm | 200℃ to 1100℃ | | | |
| DF21104 | ||||||
| Universal | White / 90s Red | 52 mm | 200℃ to 1100℃ | | | |
| DF21804 | ||||||
| Universal | White / 90s Red | 60 mm | 200℃ to 1100℃ | | | |

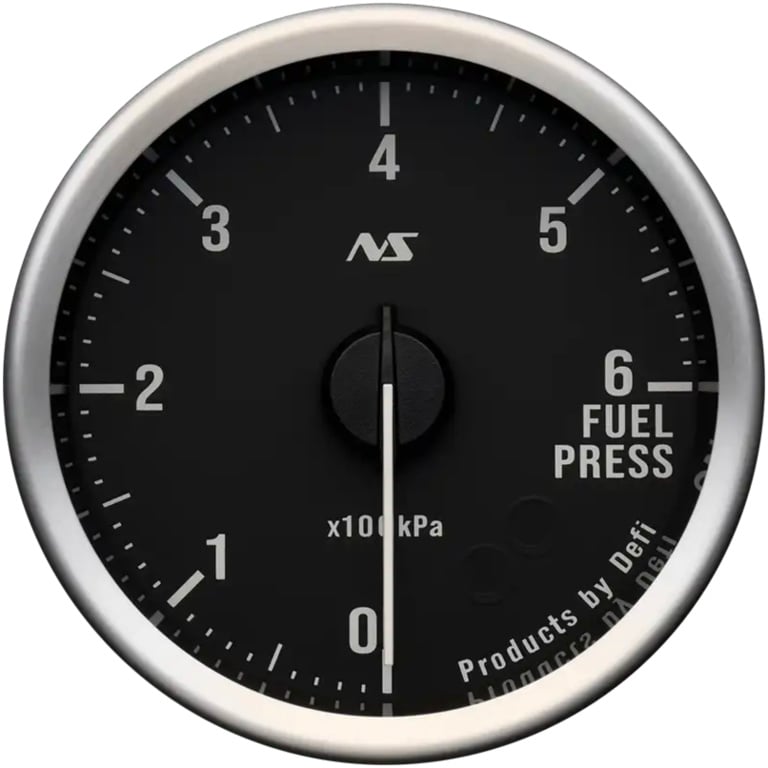

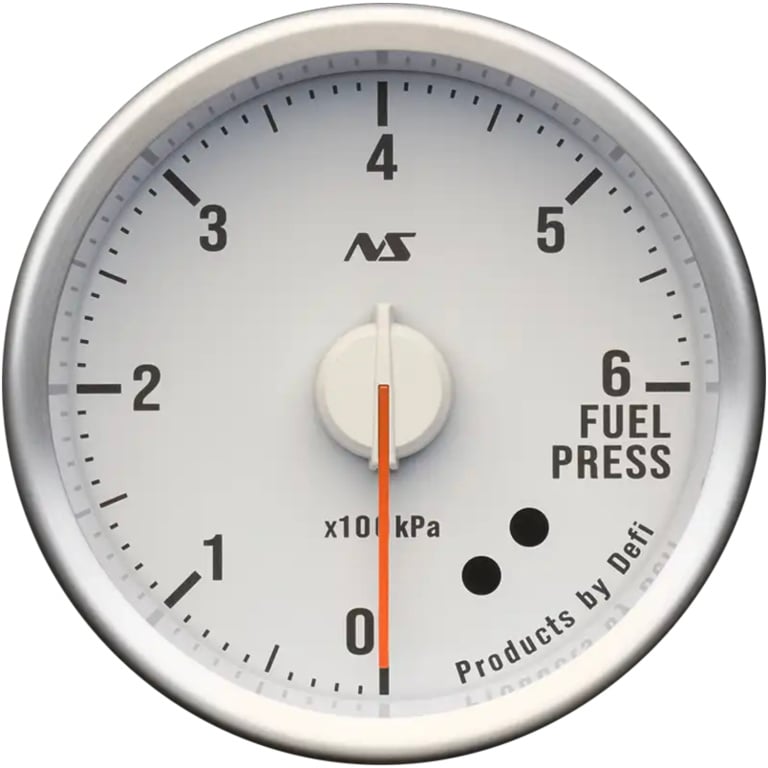

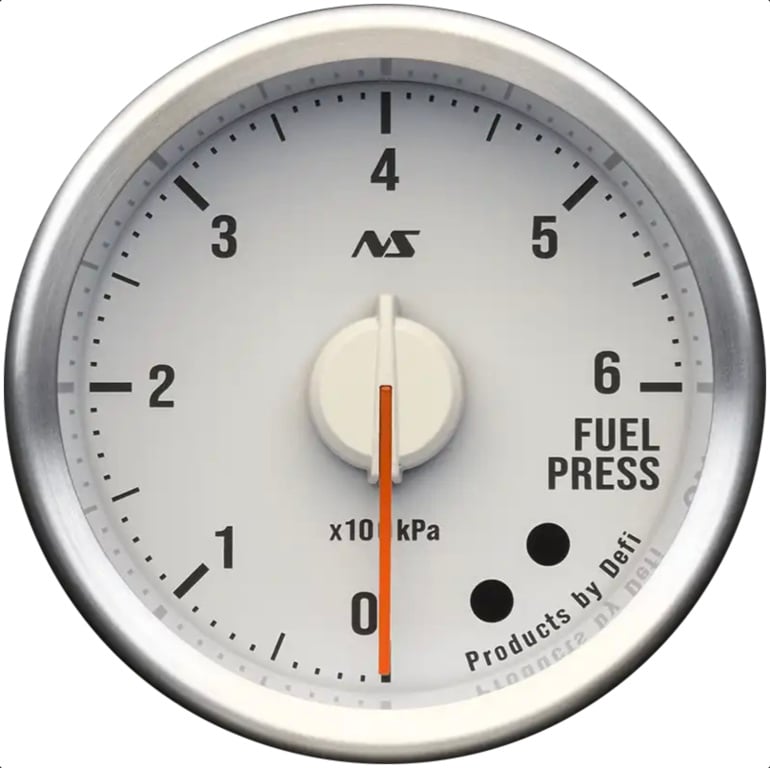

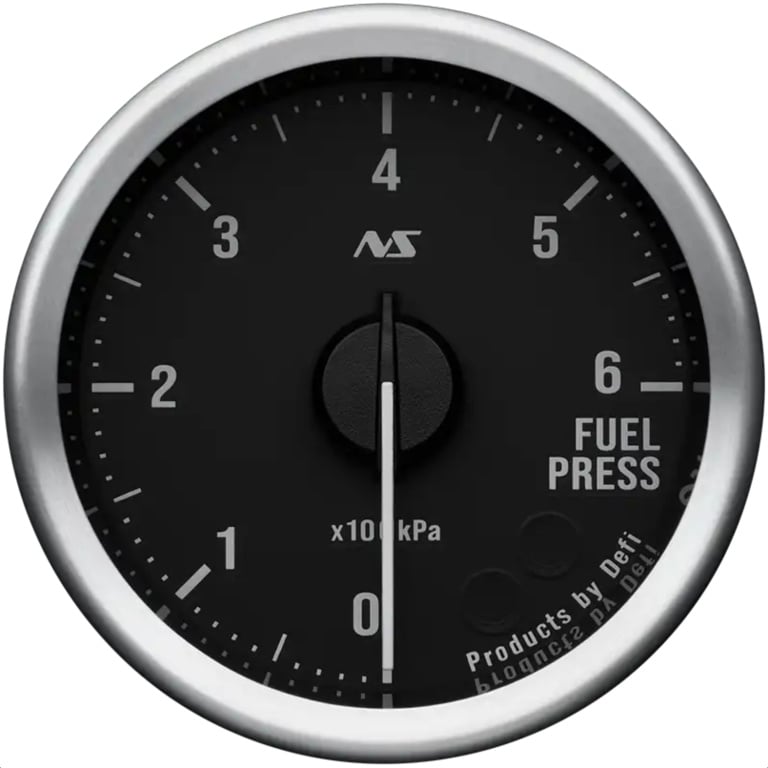

| Vehicle | Color | Diameter | Range | Price | Order | |
|---|---|---|---|---|---|---|
| DF20802 | ||||||
| Universal | Black / 70s White | 52 mm | 0kPa to 600kPa | | | |
| DF21502 | ||||||
| Universal | Black / 70s White | 60 mm | 0kPa to 600kPa | | | |
| DF20801 | ||||||
| Universal | Black / 80s Green | 52 mm | 0kPa to 600kPa | | | |
| DF21501 | ||||||
| Universal | Black / 80s Green | 60 mm | 0kPa to 600kPa | | | |
| DF20803 | ||||||
| Universal | White / 80s Green | 52 mm | 0kPa to 600kPa | | | |
| DF21503 | ||||||
| Universal | White / 80s Green | 60 mm | 0kPa to 600kPa | | | |
| DF20804 | ||||||
| Universal | White / 90s Red | 52 mm | 0kPa to 600kPa | | | |
| DF21504 | ||||||
| Universal | White / 90s Red | 60 mm | 0kPa to 600kPa | | | |

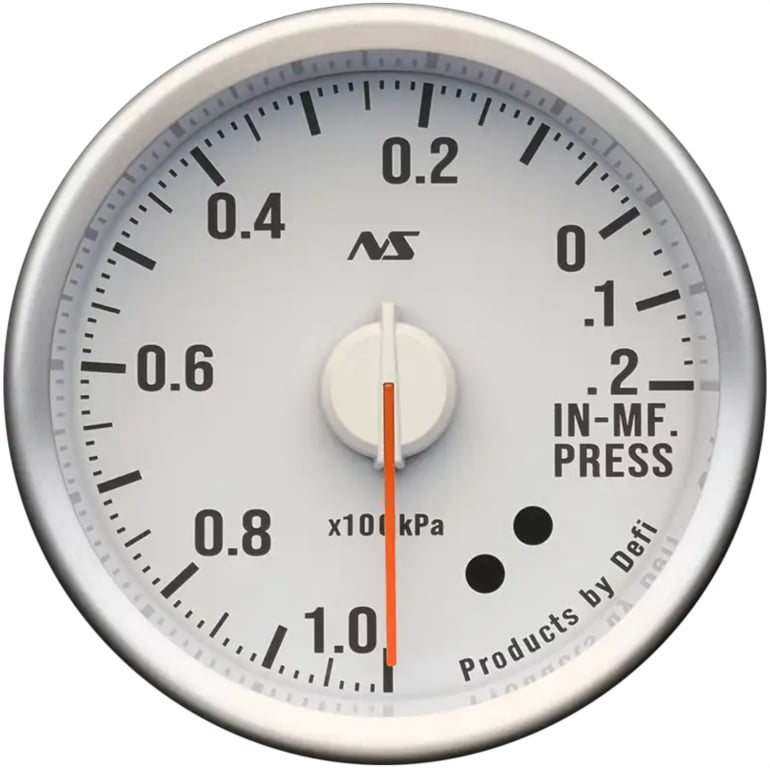

| Vehicle | Color | Diameter | Range | Price | Order | |
|---|---|---|---|---|---|---|
| DF20602 | ||||||

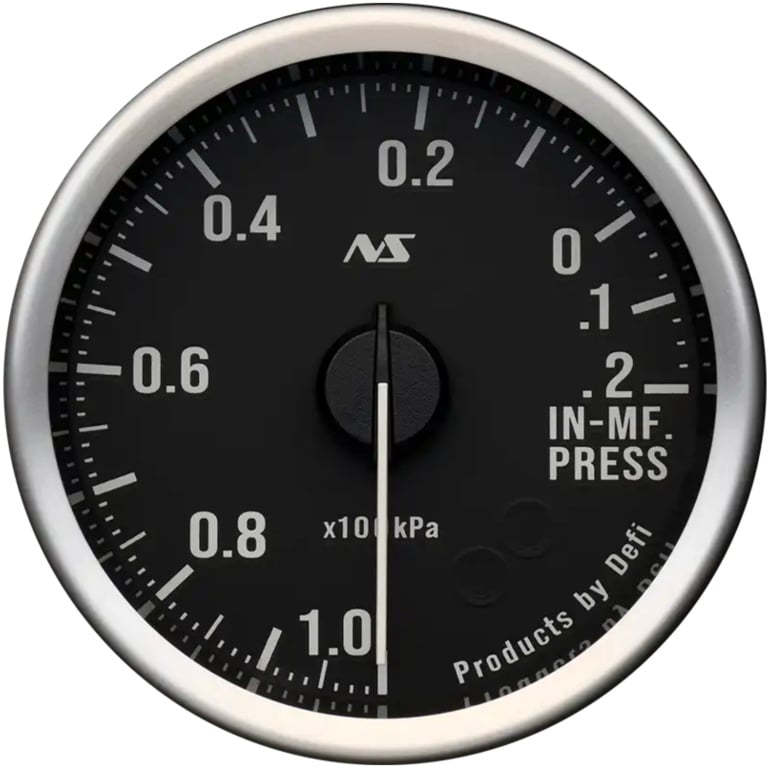

| Universal | Black / 70s White | 52 mm | -100kPa to +20kPa | | | |
| DF21302 | ||||||
| Universal | Black / 70s White | 60 mm | -100kPa to +20kPa | | | |
| DF20601 | ||||||
| Universal | Black / 80s Green | 52 mm | -100kPa to +20kPa | | | |
| DF21301 | ||||||
| Universal | Black / 80s Green | 60 mm | -100kPa to +20kPa | | | |
| DF20603 | ||||||
| Universal | White / 80s Green | 52 mm | -100kPa to +20kPa | | | |
| DF21303 | ||||||
| Universal | White / 80s Green | 60 mm | -100kPa to +20kPa | | | |
| DF20604 | ||||||
| Universal | White / 90s Red | 52 mm | -100kPa to +20kPa | | | |
| DF21304 | ||||||
| Universal | White / 90s Red | 60 mm | -100kPa to +20kPa | | | |

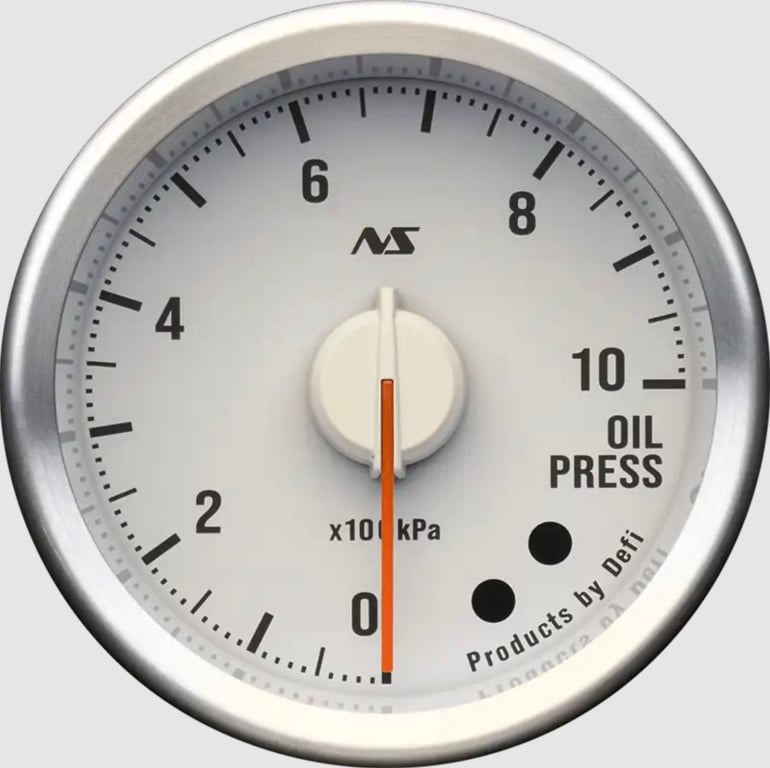

| Vehicle | Color | Diameter | Range | Price | Order | |
|---|---|---|---|---|---|---|
| DF20702 | ||||||

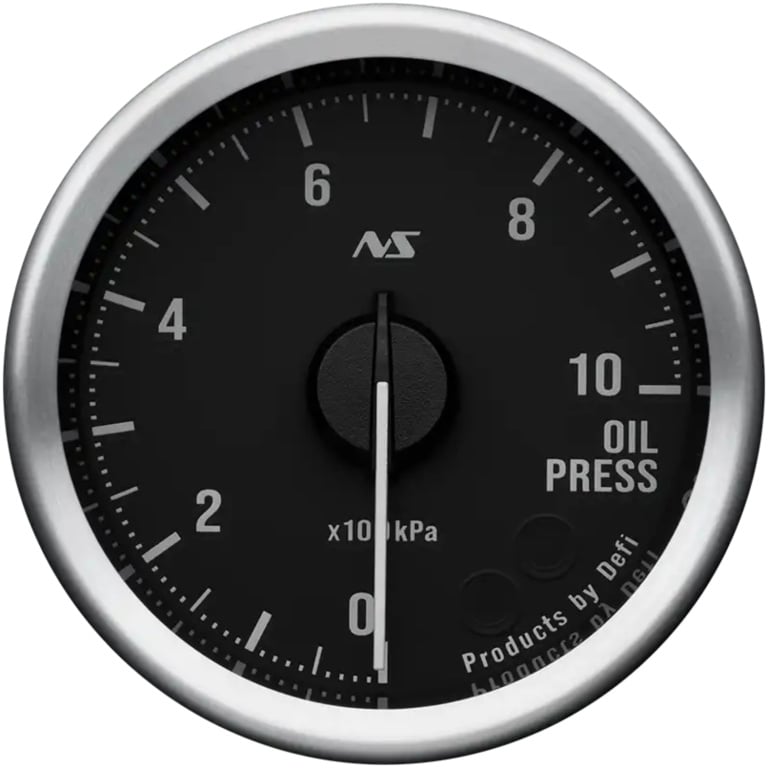

| Universal | Black / 70s White | 52 mm | 0kPa to 1000kPa | | | |
| DF21402 | ||||||

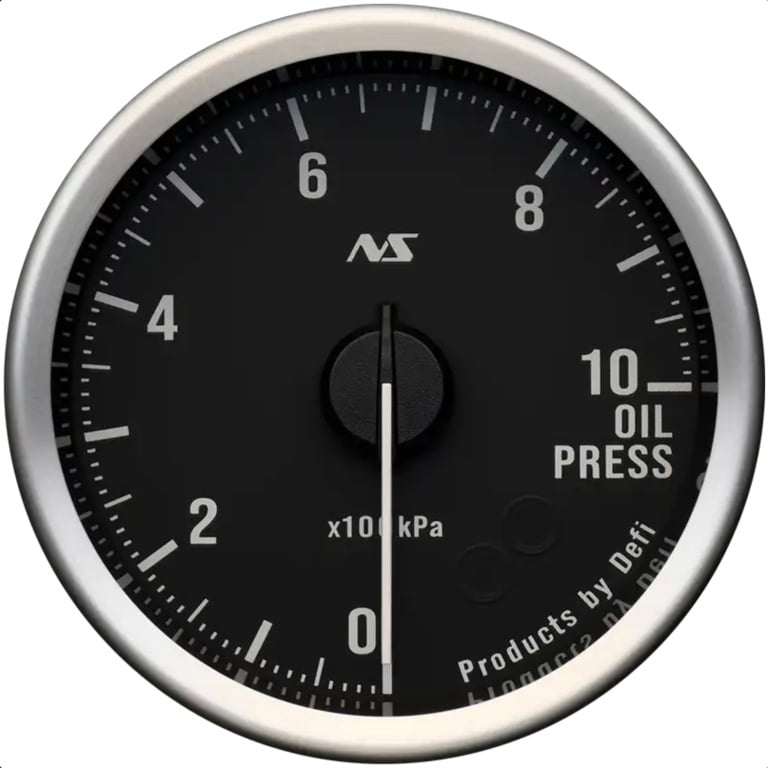

| Universal | Black / 70s White | 60 mm | 0kPa to 1000kPa | | | |
| DF20701 | ||||||
| Universal | Black / 80s Green | 52 mm | 0kPa to 1000kPa | | | |
| DF21401 | ||||||
| Universal | Black / 80s Green | 60 mm | 0kPa to 1000kPa | | | |
| DF20703 | ||||||

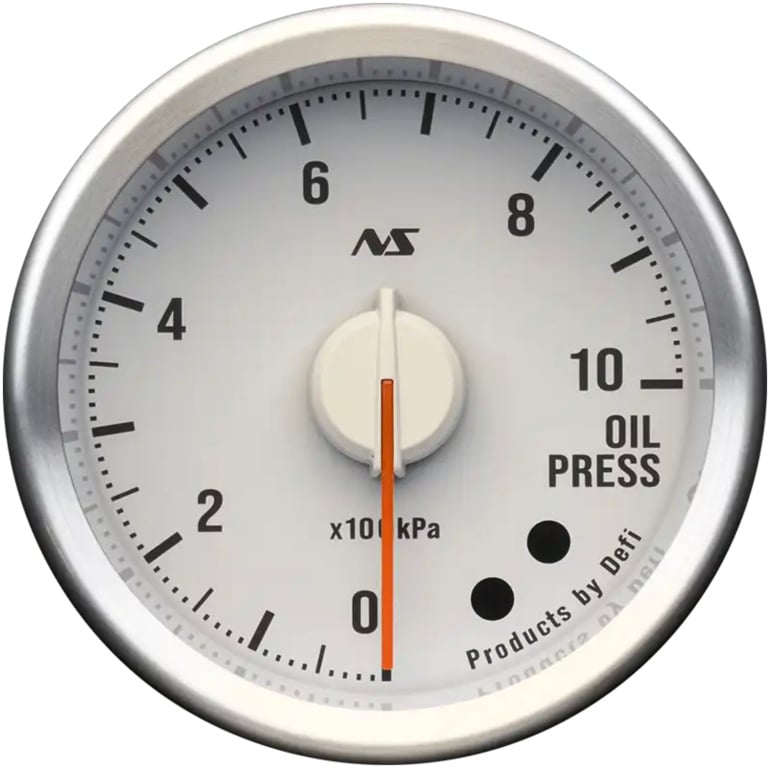

| Universal | White / 80s Green | 52 mm | 0kPa to 1000kPa | | | |
| DF21403 | ||||||

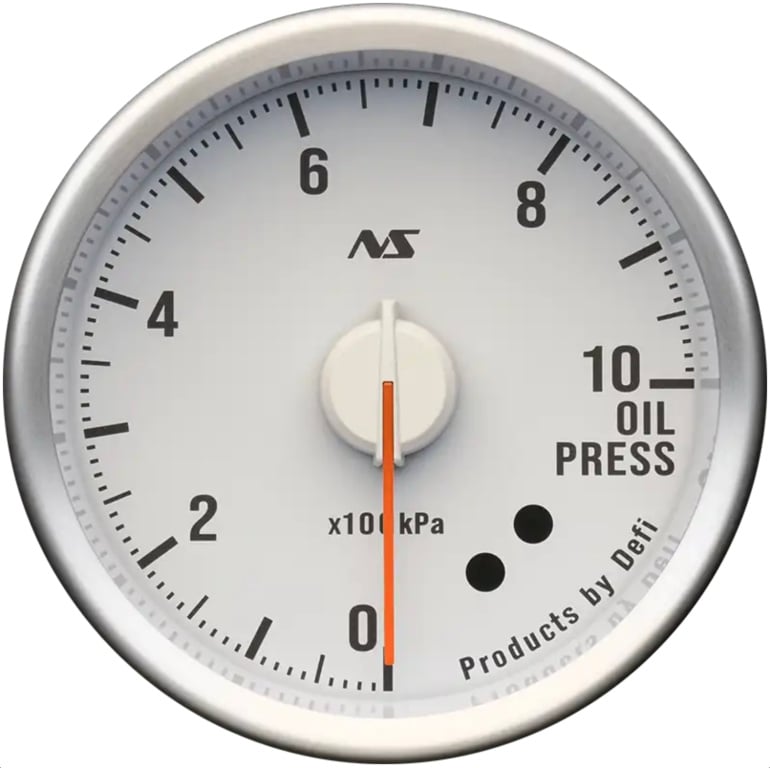

| Universal | White / 80s Green | 60 mm | 0kPa to 1000kPa | | | |
| DF20704 | ||||||
| Universal | White / 90s Red | 52 mm | 0kPa to 1000kPa | | | |
| DF21404 | ||||||
| Universal | White / 90s Red | 60 mm | 0kPa to 1000kPa | | | |

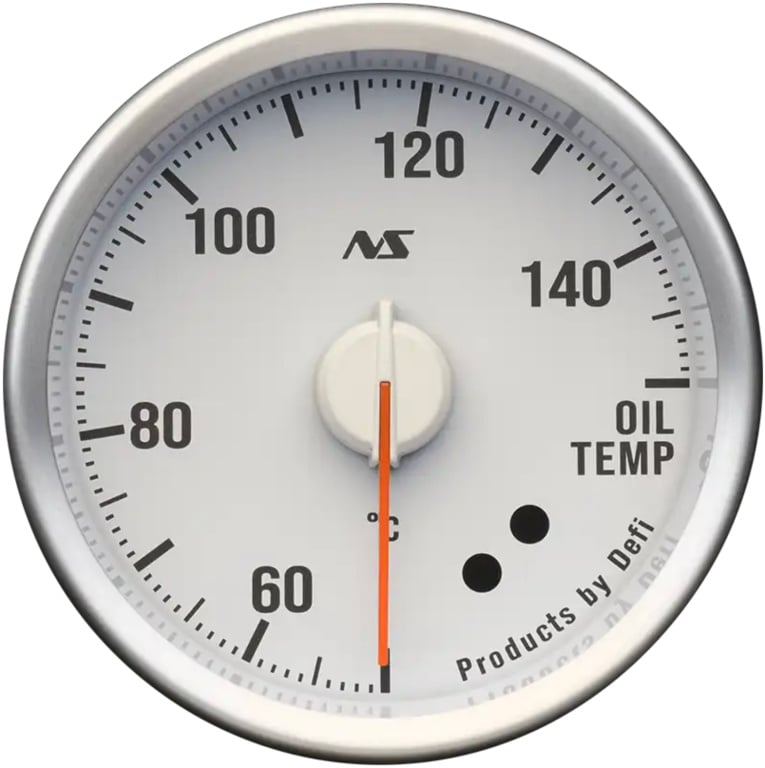

| Vehicle | Color | Diameter | Range | Price | Order | |
|---|---|---|---|---|---|---|
| DF20902 | ||||||

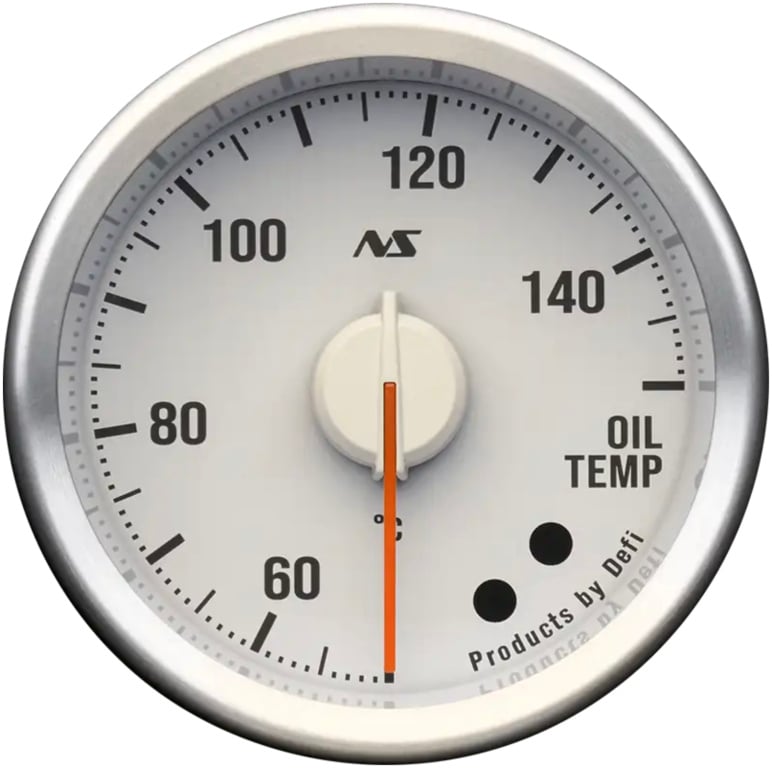

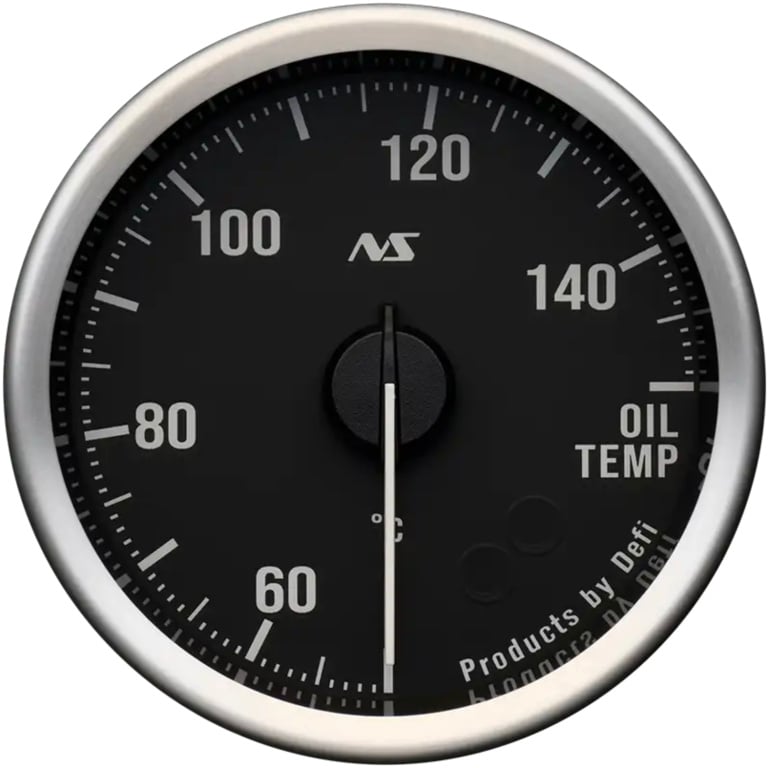

| Universal | Black / 70s White | 52 mm | 50°C to 150°C | | | |
| DF21602 | ||||||
| Universal | Black / 70s White | 60 mm | 50°C to 150°C | | | |
| DF20901 | ||||||
| Universal | Black / 80s Green | 52 mm | 50°C to 150°C | | | |
| DF21601 | ||||||
| Universal | Black / 80s Green | 60 mm | 50°C to 150°C | | | |
| DF20903 | ||||||
| Universal | White / 80s Green | 52 mm | 50°C to 150°C | | | |
| DF21603 | ||||||
| Universal | White / 80s Green | 60 mm | 50°C to 150°C | | | |
| DF20904 | ||||||
| Universal | White / 90s Red | 52 mm | 50°C to 150°C | | | |
| DF21604 | ||||||
| Universal | White / 90s Red | 60 mm | 50°C to 150°C | | | |

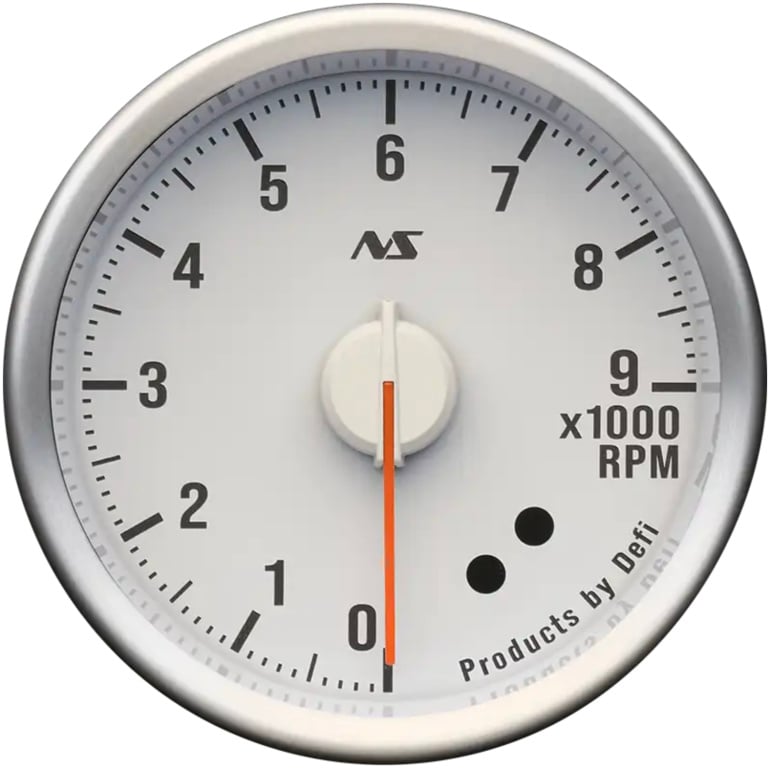

| Vehicle | Color | Diameter | Range | Price | Order | |
|---|---|---|---|---|---|---|
| DF21902 | ||||||

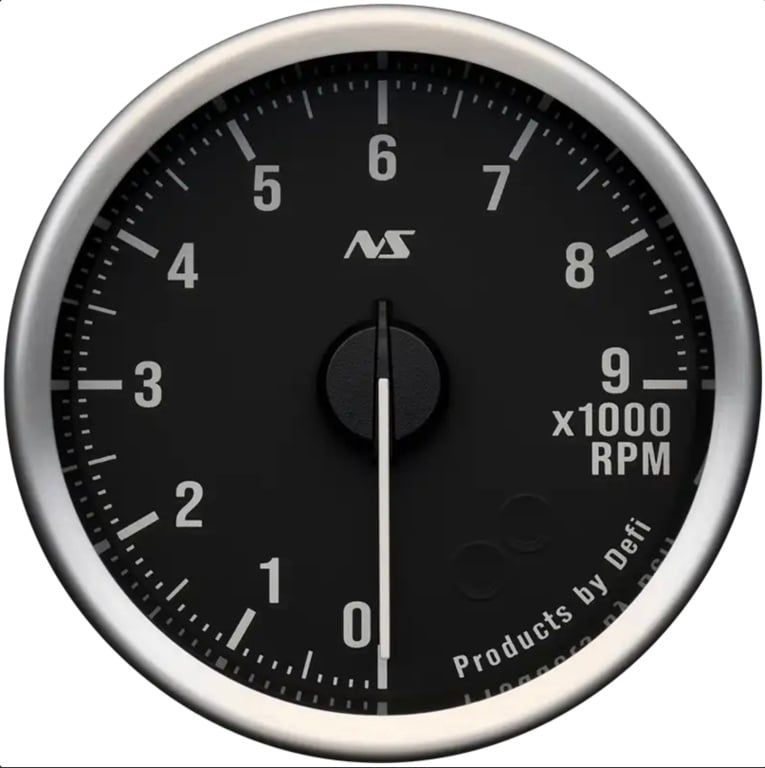

| Universal | Black / 70s White | 60 mm | 0 RPM to 9000 RPM | | | |
| DF21901 | ||||||
| Universal | Black / 80s Green | 60 mm | 0 RPM to 9000 RPM | | | |
| DF21903 | ||||||
| Universal | White / 80s Green | 60 mm | 0 RPM to 9000 RPM | | | |
| DF21904 | ||||||
| Universal | White / 90s Red | 60 mm | 0 RPM to 9000 RPM | | | |

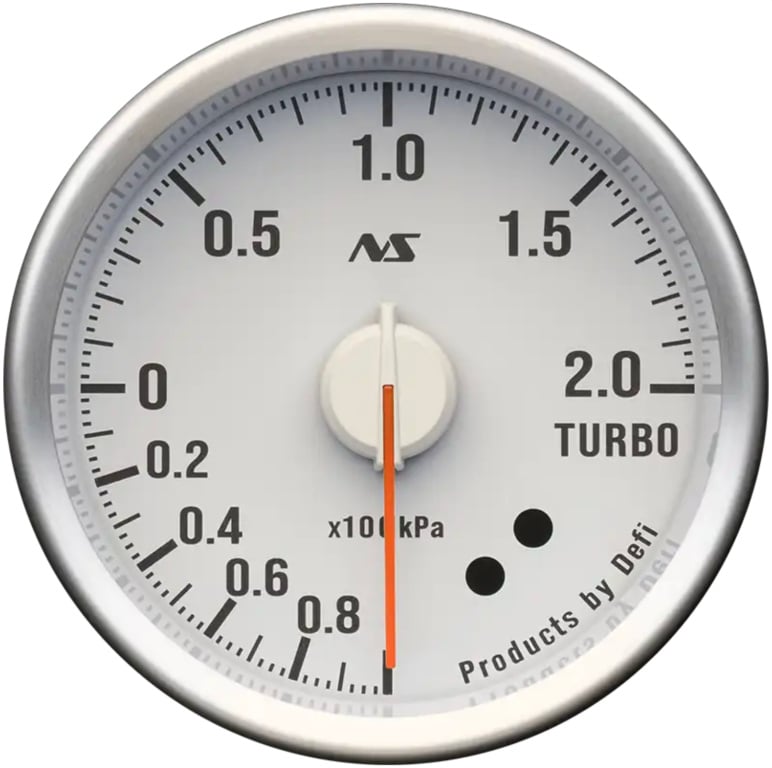

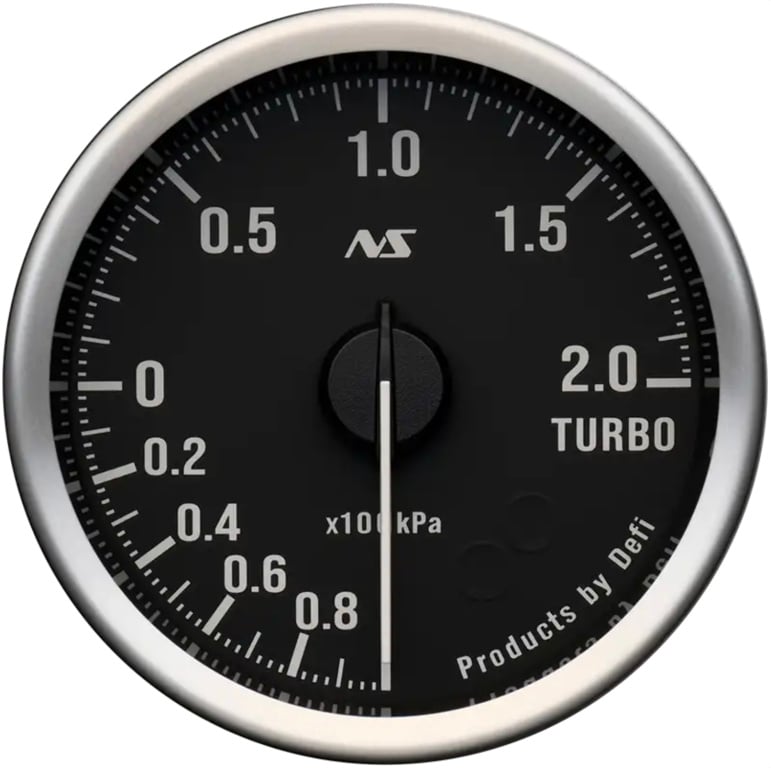

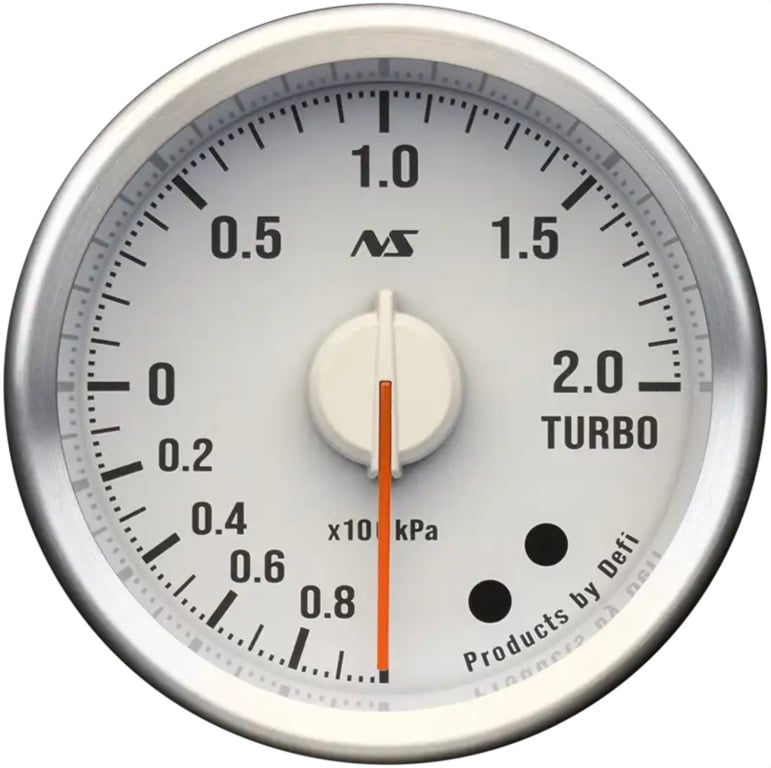

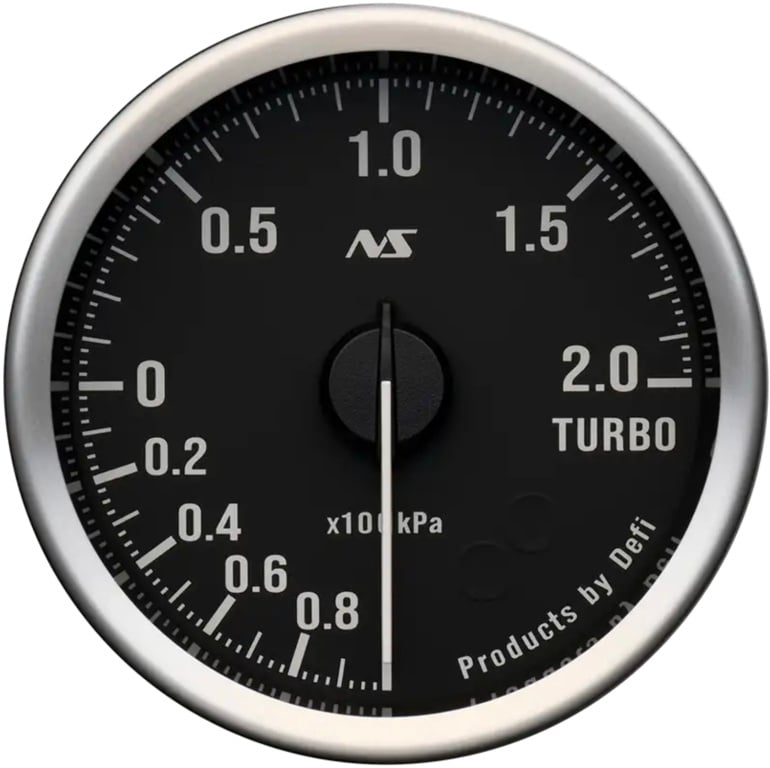

| Vehicle | Color | Diameter | Range | Price | Order | |
|---|---|---|---|---|---|---|
| DF20502 | ||||||

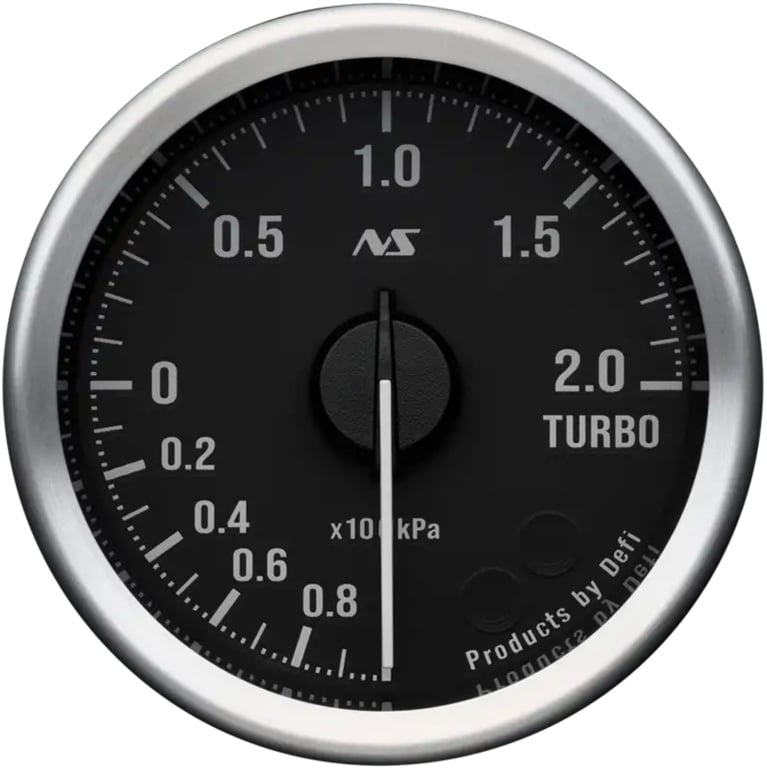

| Universal | Black / 70s White | 52 mm | -100kPa to +200kPa | | | |
| DF21202 | ||||||
| Universal | Black / 70s White | 60 mm | -100kPa to +200kPa | | | |
| DF20501 | ||||||
| Universal | Black / 80s Green | 52 mm | -100kPa to +200kPa | | | |
| DF21201 | ||||||
| Universal | Black / 80s Green | 60 mm | -100kPa to +200kPa | | | |
| DF20503 | ||||||
| Universal | White / 80s Green | 52 mm | -100kPa to +200kPa | | | |
| DF21203 | ||||||
| Universal | White / 80s Green | 60 mm | -100kPa to +200kPa | | | |
| DF20504 | ||||||
| Universal | White / 90s Red | 52 mm | -100kPa to +200kPa | | | |
| DF21204 | ||||||
| Universal | White / 90s Red | 60 mm | -100kPa to +200kPa | | | |

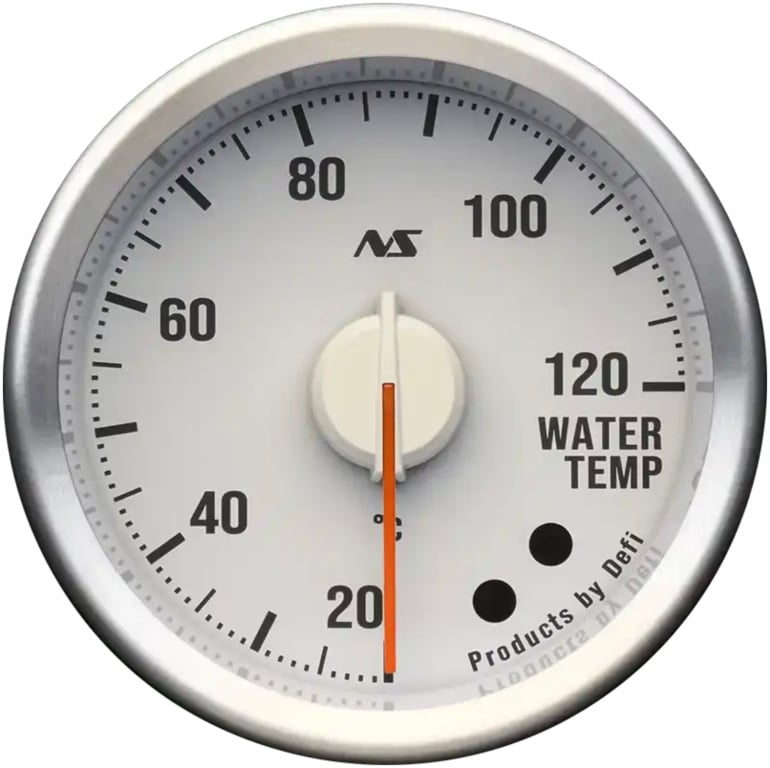

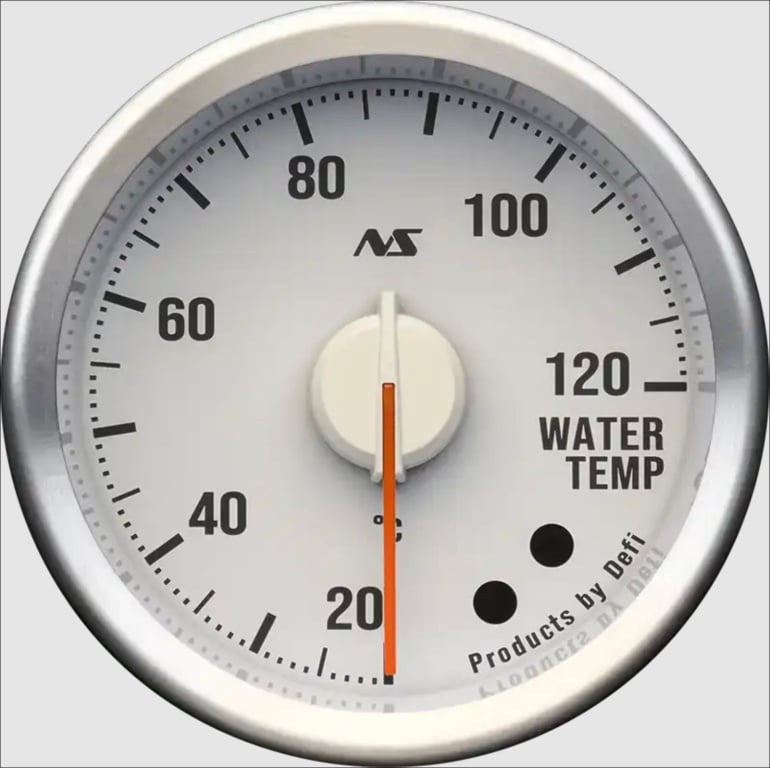

| Vehicle | Color | Diameter | Range | Price | Order | |
|---|---|---|---|---|---|---|
| DF21002 | ||||||

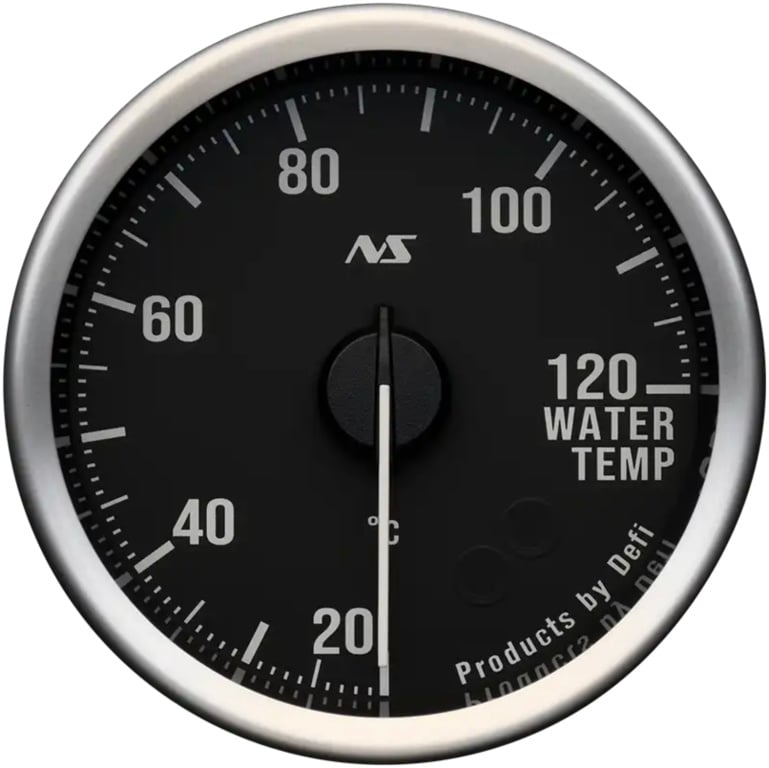

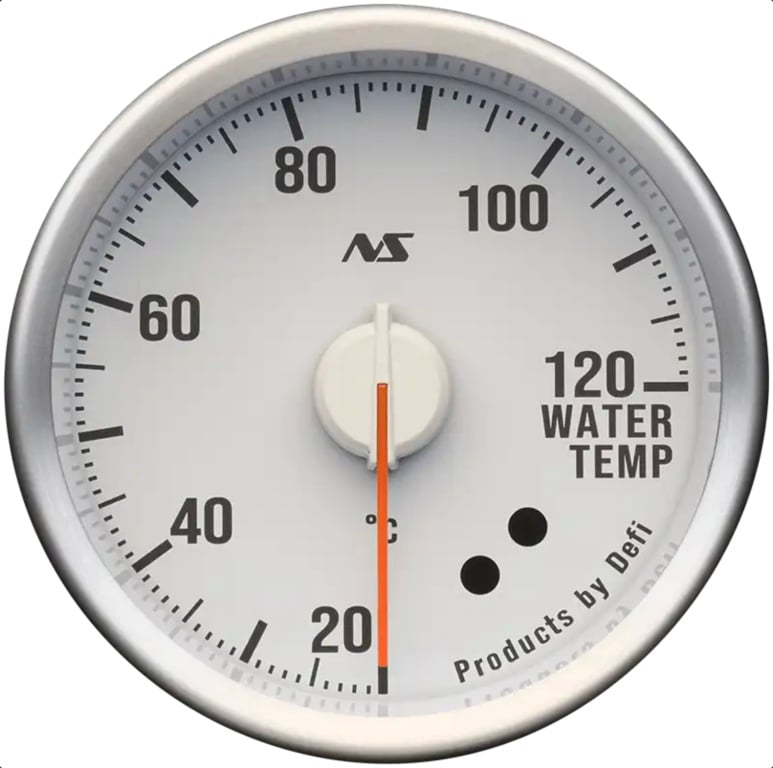

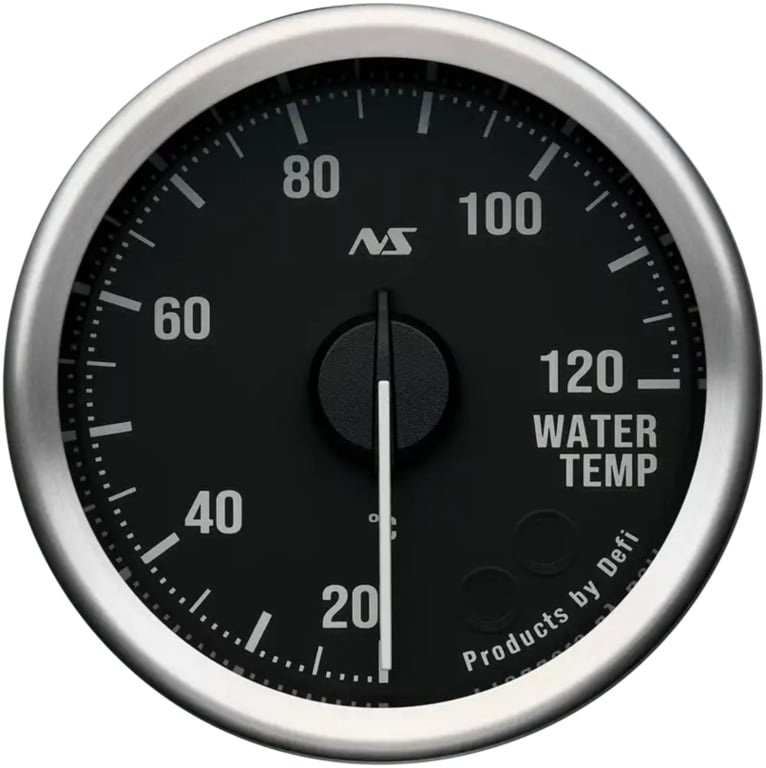

| Universal | Black / 70s White | 52 mm | 20℃ to 120℃ | | | |
| DF21702 | ||||||
| Universal | Black / 70s White | 60 mm | 20℃ to 120℃ | | | |
| DF21001 | ||||||
| Universal | Black / 80s Green | 52 mm | 20℃ to 120℃ | | | |
| DF21701 | ||||||
| Universal | Black / 80s Green | 60 mm | 20℃ to 120℃ | | | |
| DF21003 | ||||||
| Universal | White / 80s Green | 52 mm | 20℃ to 120℃ | | | |
| DF21703 | ||||||
| Universal | White / 80s Green | 60 mm | 20℃ to 120℃ | | | |
| DF21004 | ||||||
| Universal | White / 90s Red | 52 mm | 20℃ to 120℃ | | | |
| DF21704 | ||||||
| Universal | White / 90s Red | 60 mm | 20℃ to 120℃ | | | |
About Defi
Defi is the aftermarket brand of Nippon Seiki Co., Ltd., which was founded in December 1946 in Nagaoka, Niigata Prefecture, to make clocks and instrument gauges. A project team formed in 1995 to bring its gauge technology to tuners, and the Defi brand launched in 1996 with a retrofit head-up display.
In 1998 it introduced the Defi-Link Meter, and in 2018 the DSDF data logger added a GNSS lap timer. Defi makes gauges, displays and sensors for Japanese cars, and tests them at circuit events.
