Nismo Intake Collector - Plenum
Nismo

The Nismo intake collector is designed with form & function in mind, and is fully optimized for air flow in tuning the GT-R engine (400ps to 600ps).

The Nismo intake collector is designed with form & function in mind, and is fully optimized for air flow in tuning the GT-R engine (400ps to 600ps).

This intake collector is a standard item in the NISMO Z-tune GT_R34 Ver.2002. It is completely bolt-on installation, and no modifications on are necessary on the idling control, fuel piping, clutch piping & vacuum piping. (The only minor adjustments needed are on the throttle linkage & throttle sensor). Improved medium speed torque is achieved by improving airflow onto each cylinder, and this is done by refining the diameter & length of the inlet pipe & cross section of the intake collector.

Normal Collector
Based on factory item with respect to form factor, air is not evenly distributed to all 6 cylinders. As a result, the NISMO air collector tried to distribute air flow evenly & equally by redefining the intake form factor.

There is a difference in turbine inlet exhaust gas temperature between the front & the rear. The overall temperature difference has been reduced drastically due to an improved & efficient intake quantity between the cylinders on both sides. (The exhaust gas temperatures at the front-rear turbine was reduced at an average of 18% at 2400 RPM to 7000 RPM)
The fuel supply density is high in order to protect the turbocharger from high exhaust gas temperatures. With the NISMO air collector, temperatures are reduced and this resulted in improved fuel economy & improved output. Both cylinders & ignition timing could be optimized because exhaust gas temperature differences becomes small. (At 4800 RPM to 7600 RPM, output improved by an average of 1.8%, and fuel consumption improved by an average of 0.4%)

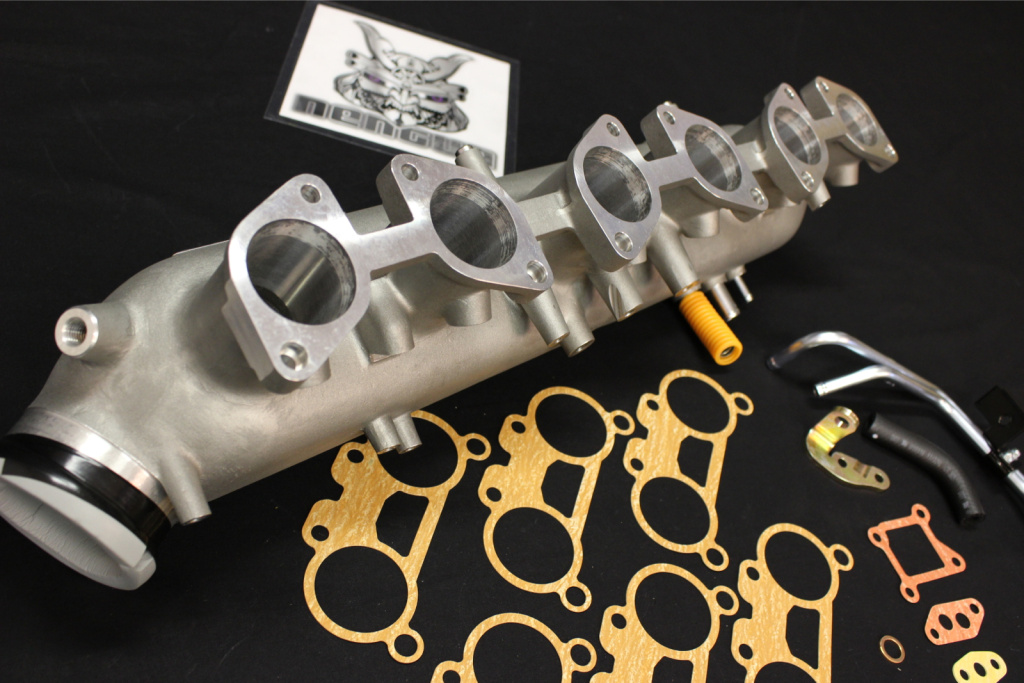

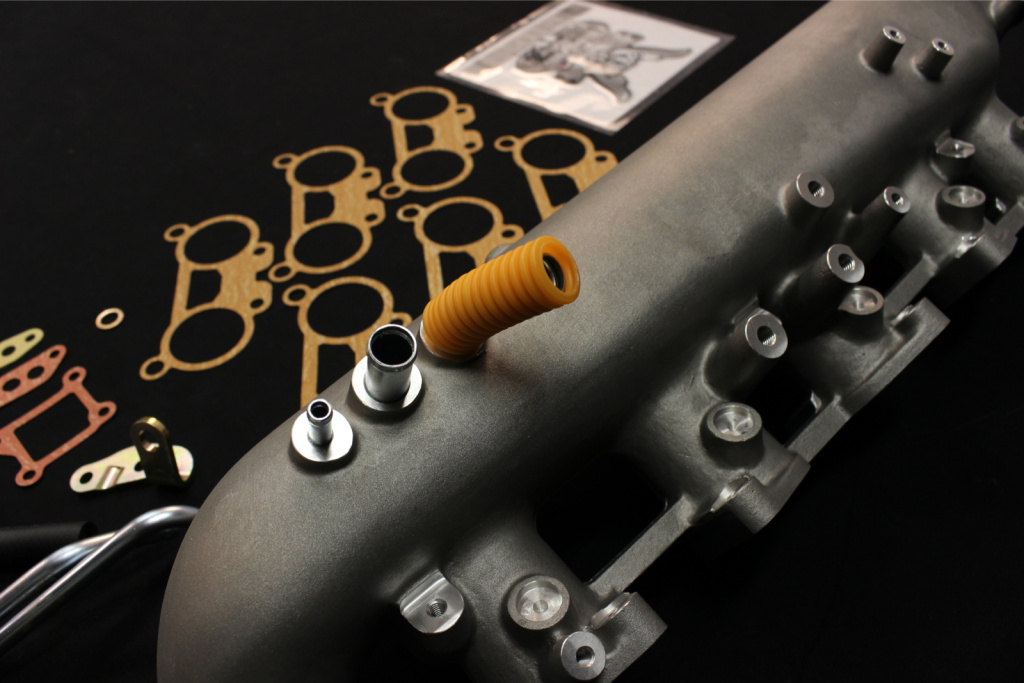

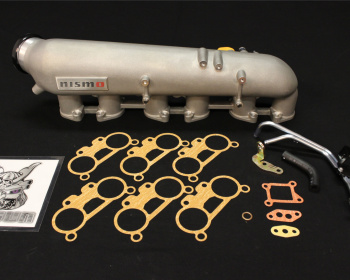

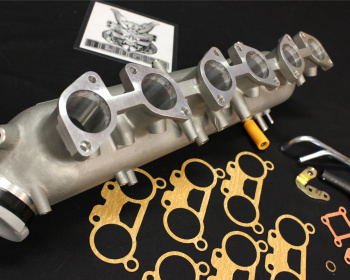

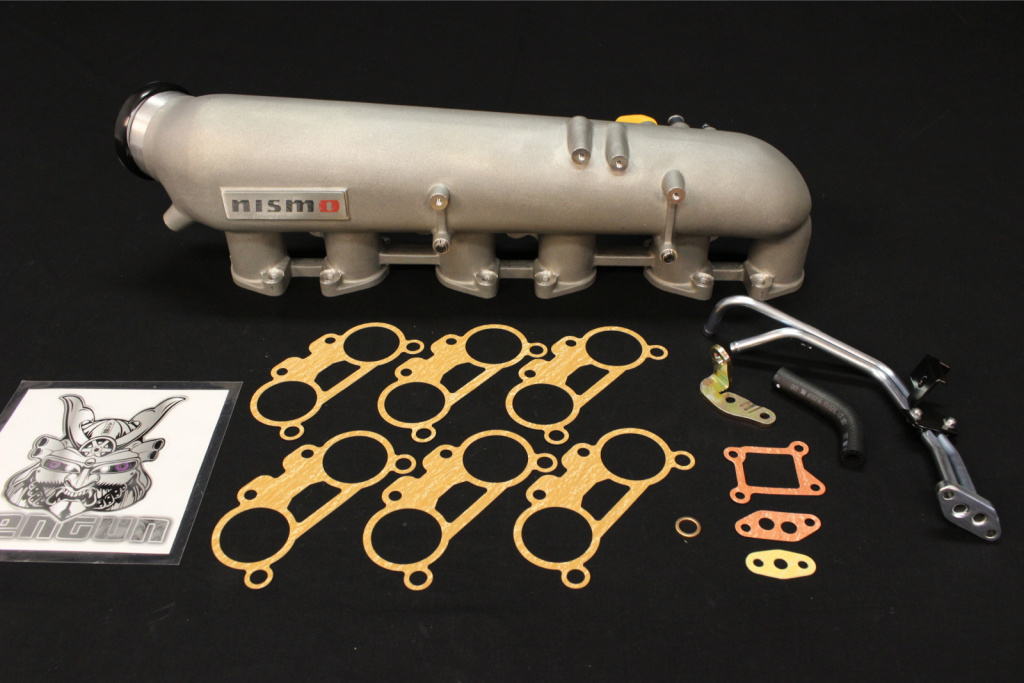

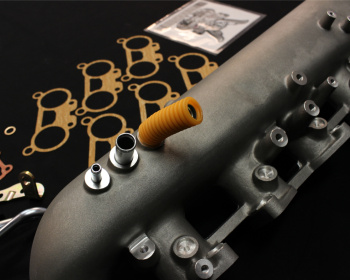

The NISMO air collector installation kit includes the intake collector, the necessary vacuum piping for brake & clutch master, and vacuum hose for clutch master, bracket & gasket.This kit is including intake collector, vacuum piping for brake/clutch master, vacuum hose for clutch master,bracket and gasket for installing.

There is a difference in turbine inlet exhaust gas temperature between the front & the rear. The overall temperature difference has been reduced drastically due to an improved & efficient intake quantity between the cylinders on both sides. (The exhaust gas temperatures at the front-rear turbine was reduced at an average of 18% at 2400 RPM to 7000 RPM)
The fuel supply density is high in order to protect the turbocharger from high exhaust gas temperatures. With the NISMO air collector, temperatures are reduced and this resulted in improved fuel economy & improved output. Both cylinders & ignition timing could be optimized because exhaust gas temperature differences becomes small. (At 4800 RPM to 7600 RPM, output improved by an average of 1.8%, and fuel consumption improved by an average of 0.4%)

The NISMO air collector installation kit includes the intake collector, the necessary vacuum piping for brake & clutch master, and vacuum hose for clutch master, bracket & gasket.This kit is including intake collector, vacuum piping for brake/clutch master, vacuum hose for clutch master,bracket and gasket for installing.

Important Note
Please allow up to 2 months delivery time for this product - these are manufactured by Nismo upon the placement of your order and can take some time.

Product Version Vehicle Compatibility Price Order
14110-RSR45
Nissan BNR32,BCNR33,BNR34 RB26DETT
Skyline - R32 GTR - BNR32
Skyline - R33 GTR - BCNR33
Skyline - R34 GTR - BNR34
USD $ 1,431.76
USD $ 1,839.74
Vehicle Compatibility
Nissan - Skyline - R32 GTR - BNR32
Nissan - Skyline - R33 GTR - BCNR33
Nissan - Skyline - R34 GTR - BNR34
