Blitz Racing Meter SDX

Features

• As with previous models, the internal mechanism uses the latest high-precision stepping motor drive. This ensures accurate readings, smooth pointer movement, and opening and closing movements.
• The backlight uses high-brightness white LEDs, ensuring excellent visibility even during the day.
• It also features a dimmer function that dims the light in conjunction with the illumination power supply at night.
• All meters have the ability to set and display warning and peak indicators, and a self-diagnosis function that causes the pointer to flash if an abnormality is detected in the sensor.
• All RACING METER SDX models come with a dedicated control switch and meter holder.
• Furthermore, the separately sold "central control unit" that is often required for general electric meters has been eliminated. Simply purchase the meter alone and you can install and use it right away. Not only does it eliminate the need for separate items, but it also comes with a comprehensive set of accessories.
• The analog meter comes in three standard lineups: "BOOST", "TEMP" and "PRESS".

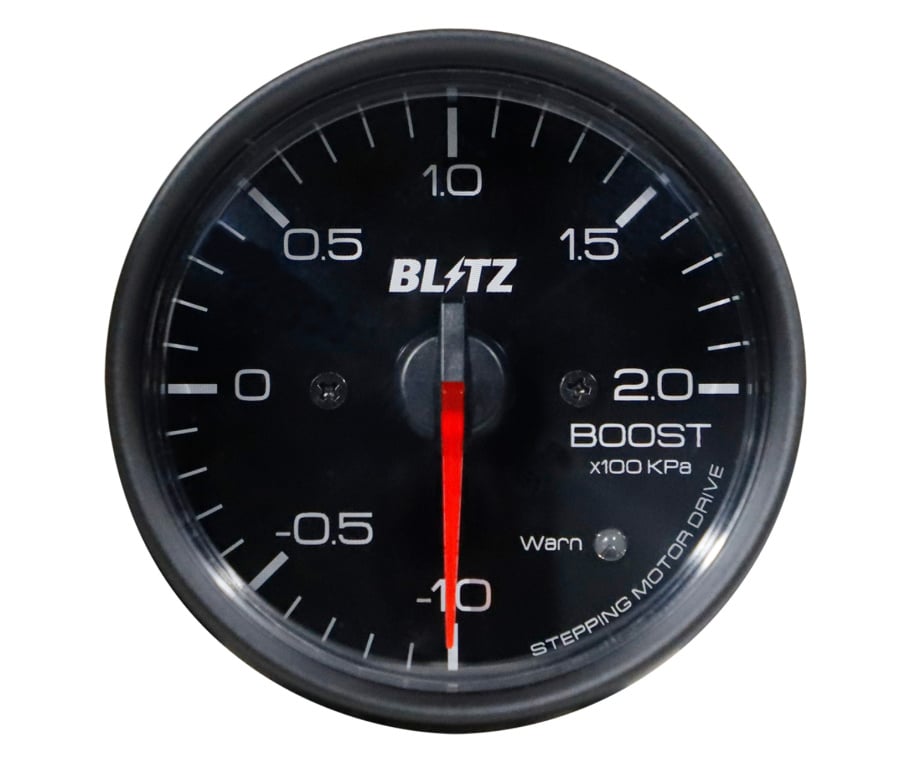

  • BOOST METER
    • This is an intake manifold pressure gauge for turbocharged engines. It displays pressure from the negative pressure range to the positive pressure range (up to 2.0 kPa) supercharged by the turbocharger.
    • The positive pressure range display, combined with the "peak hold function," is useful for checking the maximum boost pressure while driving and for adjusting the boost pressure with a boost controller.
    • φ60 BOOST METER
    • -1.0 to 2.0 units x 100kpa (electric type)

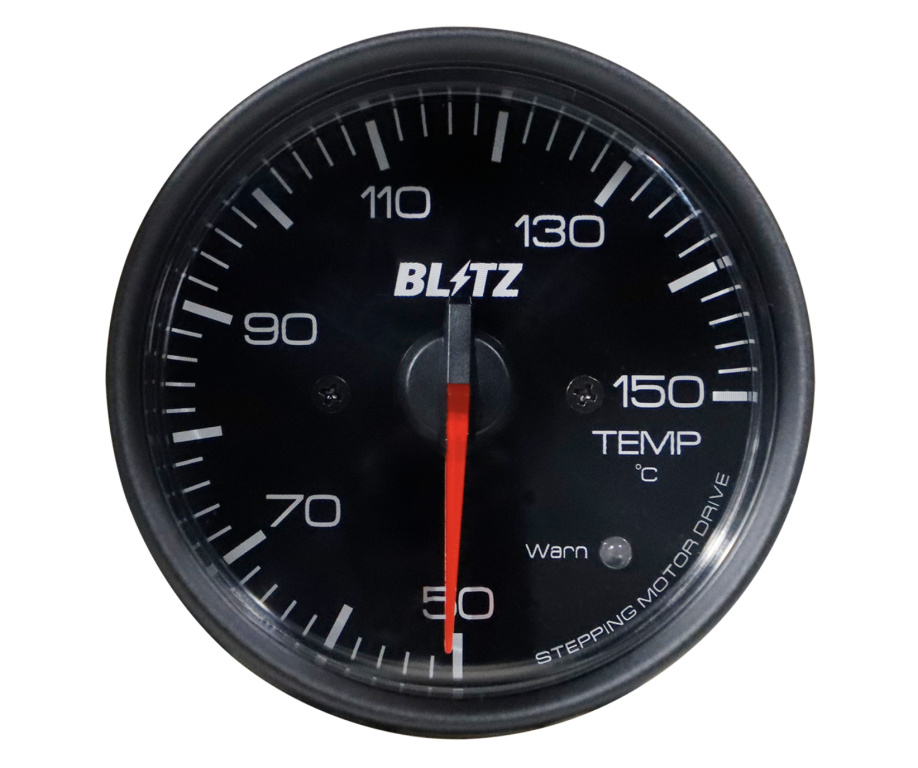

  • TEMP METER
    • Depending on where the temperature sensor is installed, it will display the engine oil temperature or radiator coolant temperature. Engine oil and coolant temperatures often exceed the appropriate temperature during sports driving, which involves frequent high-speed rotations, or during extreme traffic jams in the summer. This is necessary to ensure proper temperature management before putting strain on the engine.
    • φ60 TEMP METER
    • 50 to 150 units °C (electric type)
    • Sensor size 1/8PT

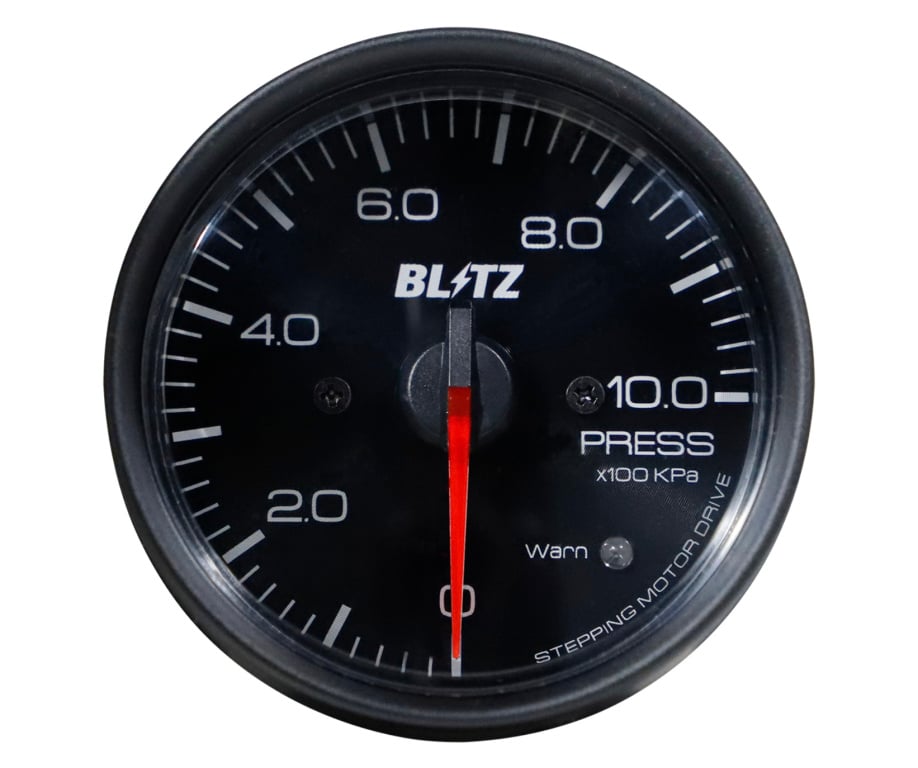

  • PRESS METER
    • Depending on the installation location of the pressure gauge sensor, it will display engine oil pressure or fuel pressure. A drop in engine oil pressure can, in the worst case scenario, lead to engine damage, so it is important to always be aware of the appropriate pressure. It is also useful for checking for fuel system problems and insufficient capacity.
    • φ60 PRESS METER
    • 0 to 10.0 units x 100 kpa (electric type)
    • Sensor size 1/8PT
