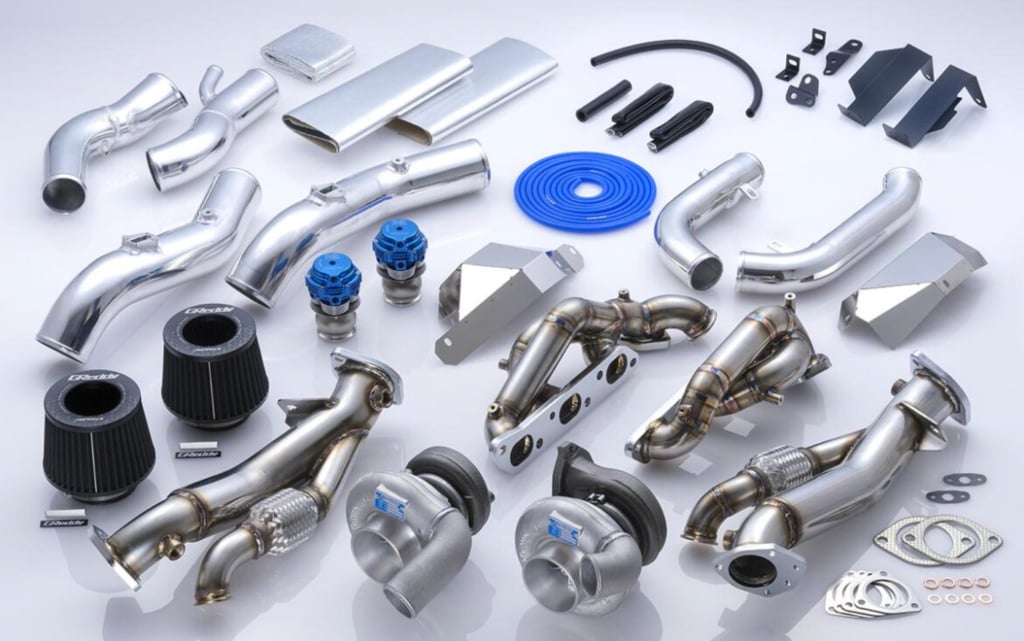

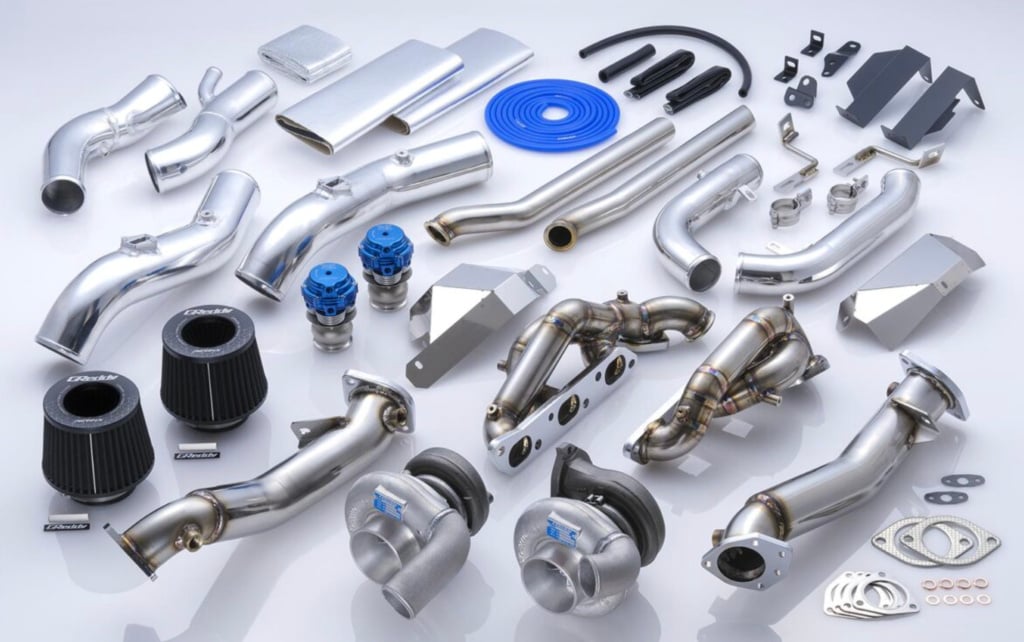

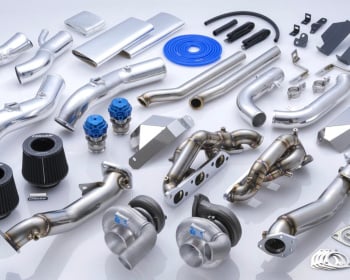

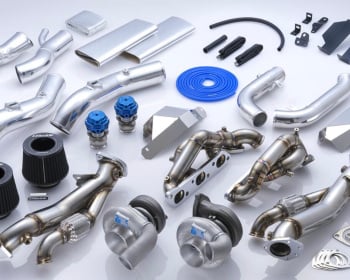

GReddy RX1200 Turbine Kit for R35 GTR

The GReddy RX1200 Turbine Kit for R35 GTR delivers the highest maximum output of the GReddyT/K R35 series, delivering a maximum of 1200hp.

The GReddy RX1200 Turbine Kit for R35 GTR delivers the highest maximum output of the GReddyT/K R35 series, delivering a maximum of 1200hp. Two type of kits are available: wastegate return or atmospheric release, depending on your usage. The exhaust manifold uses a crack-resistant, 3mm-thick, 48φ stainless steel elbow welded type, achieving a significant weight reduction of approximately 6.9kg for both sides. The wastegate valve uses a TiAL 38φ V-Band type, and the optimized valve diameter eliminates the drop after intercept, stabilizing boost. The compact wastegate valve allows for flywheel housing replacement without removing the exhaust manifold, improving maintenance. Multiple wastegate springs are included, allowing you to select the best rate to match your desired boost.

Features

  • Turbine TD06SH-25G-C 10cm2 (20G cover specification) TWIN
  • EX manifold 48φ SUS elbow welded.
  • Front pipe SUS60φ-70φ (x2)
  • W/G TiAL 38φ V-Band type.
  • Suction tube Aluminum 70φ (buffed finish)
  • Compression tube Aluminum 60φ (x2)(buffed finish)
  • AIRINX AY-S  (x2)
  • Wastegate release pipe SUS42.7φ (release kit only)

Notes

  • The original first catalyst cannot be installed, but the second catalyst can be installed.
  • To install this kit, you will need to also install the separately sold GReddy Aluminum Intake Pipe Set for the R35GTR Suction Kit. (CODE: 12020942)
  • A genuine exhaust manifold gasket is required separately.
Vehicle Part Turbocharger Wastegate   Price Order
GT-R - R35
11520108
TD06SH-25G-C 10cm2 Release Type GT-R - R35 - GReddy - RX1200 Turbine Kit for R35 GTR
USD $ 8,456.82
USD $ 10,067.64
1,339,800 JPY
GT-R - R35
11520107
TD06SH-25G-C 10cm2 Return Type GT-R - R35 - GReddy - RX1200 Turbine Kit for R35 GTR
USD $ 8,456.82
USD $ 10,067.64
1,339,800 JPY
GReddy - RX1200 Turbine Kit for R35 GTR
GT-R - R35
Turbocharger TD06SH-25G-C 10cm2
Wastegate Release Type
11520108
USD $ 8,456.82
USD $ 10,067.64
GReddy - RX1200 Turbine Kit for R35 GTR
GT-R - R35
Turbocharger TD06SH-25G-C 10cm2
Wastegate Return Type
11520107
USD $ 8,456.82
USD $ 10,067.64
