GReddy Surge Tank 2JZ PRO Kit
The GReddy Surge Tank 2JZ PRO Kit is a professional-grade surge tank for 2JZ engines
GReddy - Surge Tank 2JZ PRO Kit
GReddy - Surge Tank 2JZ PRO Kit
GReddy - Surge Tank 2JZ PRO Kit
GReddy - Surge Tank 2JZ PRO Kit
GReddy - Surge Tank 2JZ PRO Kit
The GReddy Surge Tank 2JZ PRO Kit is a professional-grade surge tank for 2JZ engines, with a throttle flange and air outlet that can be customized to fit your vehicle.
Features
- This kit is not welded, allowing you to customize the throttle flange and air intake to fit your vehicle. The tank has a 3mm wall thickness, and the addition of press lines increases rigidity, enabling it to handle high boost pressures. The funnel design maximizes intake efficiency through its rectifying effect and increased flow velocity.

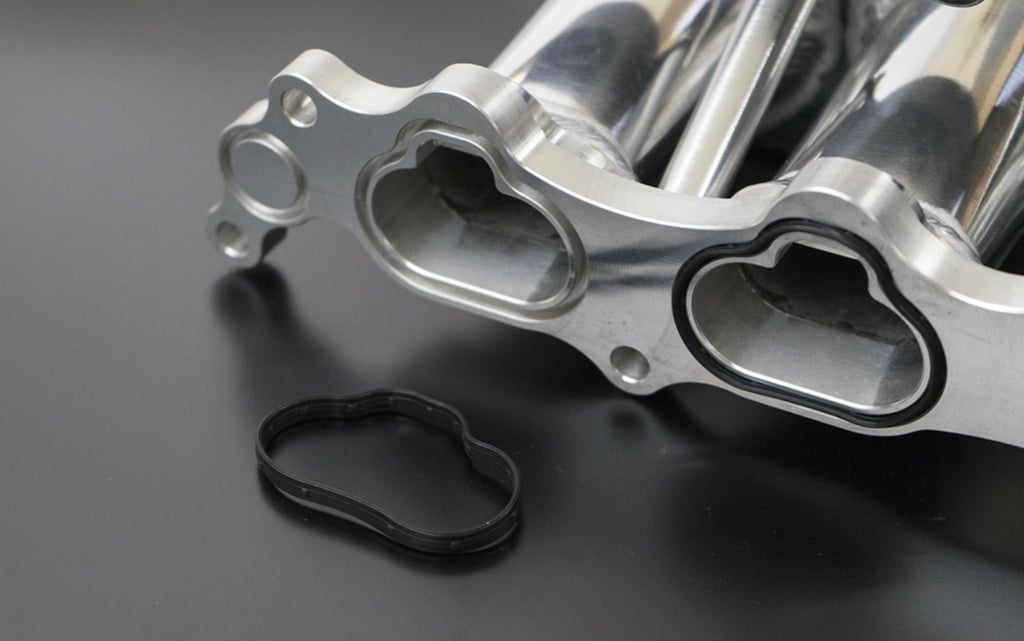

- The O-rings in each part of the seal are specially designed to prevent them from falling off during assembly, and they are made of a fluorine-based material that has excellent gasoline resistance.

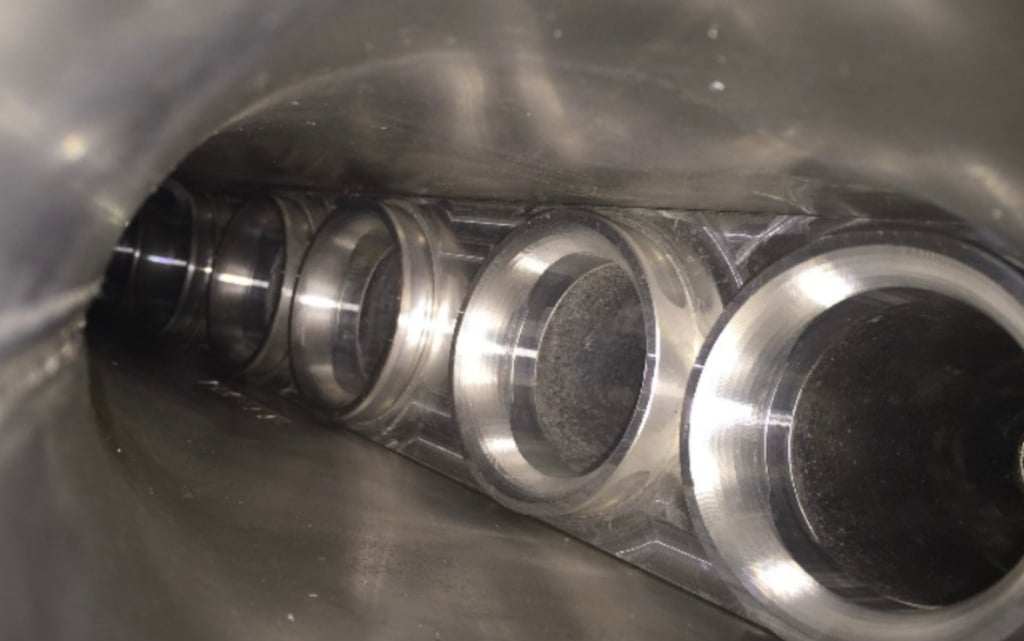

- The internal funnel shape of the tank maximizes intake efficiency through the rectifying effect and increased flow velocity provided by the funnel. (Funnel height: 20 mm)

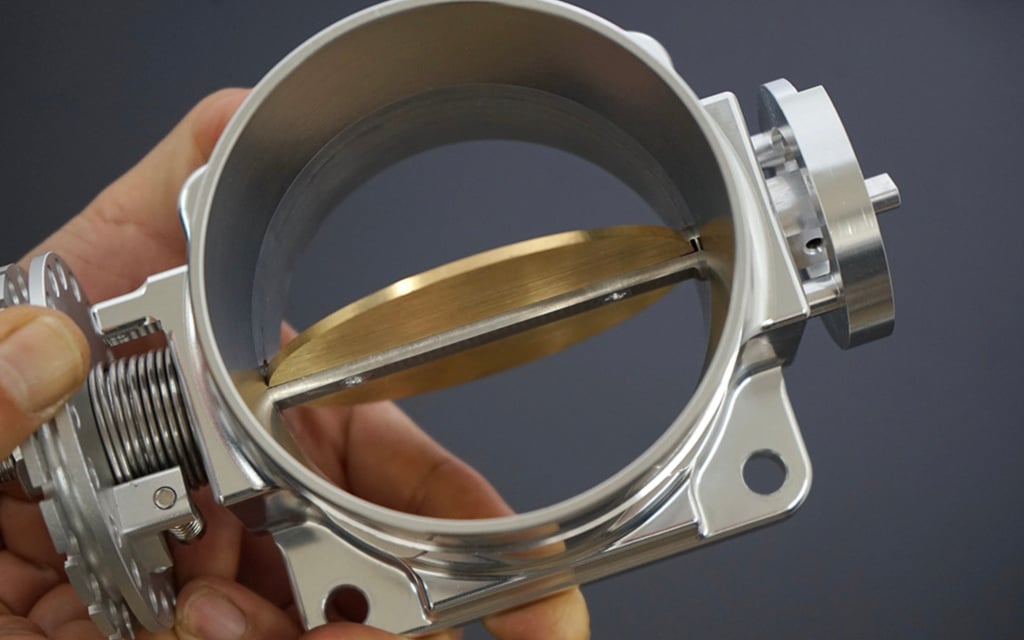

- Butterfly valve diameter: 90mm
- Inner diameter: IN 96mm - OUT 90mm
- Outer diameter (hose opening): 100mm
- Compatible with genuine throttle position sensor
- The throttle shaft has a thin shape that reduces intake resistance and increases the opening area.

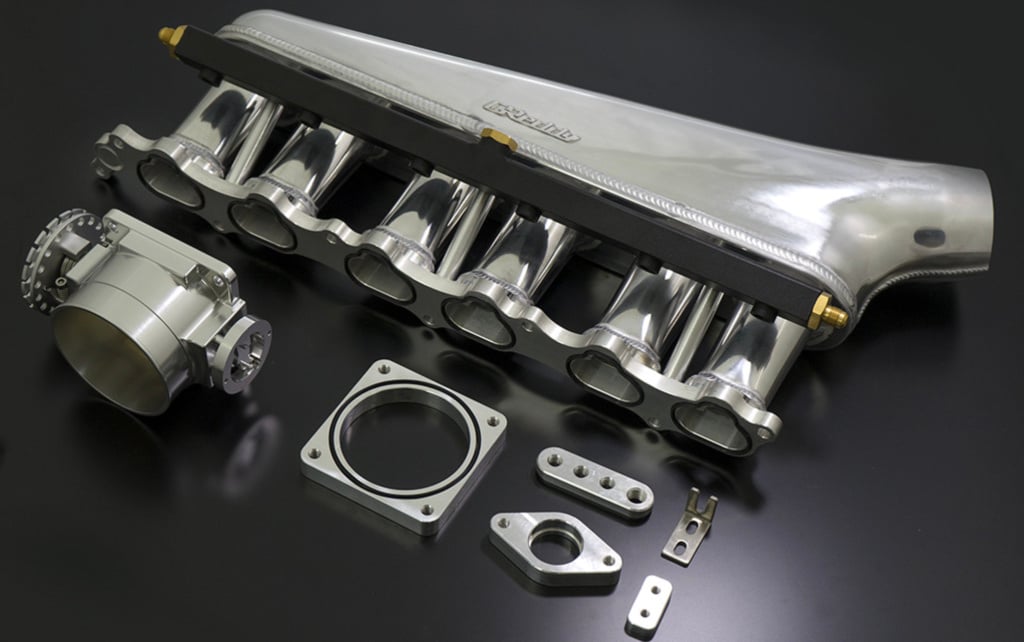

Kit Includes
- Surge tank
- Throttle
- Fuel Delivery Tube
- Tank, Ports and Head Flange are pre-welded
- Throttle Flange and Throttle for welding included
- Collector tank capacity: 4.02L (200% of normal)
- Intake pipe length: 130mm
- Throttle hose diameter: 100mm
- Butterfly valve diameter: 90mm
- Delivery tube for top-feed injectors included.
We ship to the United States and 150 other countries.
Japan Post EMS & ePacket, FedEx, DHL and more.
About GReddy
GReddy is the brand of Trust Co., Ltd., a Japanese tuning company founded in 1977. Trust raced in the Japanese Touring Car Championship, IMSA and at Le Mans, and the GReddy name became one of the best known in tuning through its turbo kits, intercoolers, boost controllers, gauges, exhausts and oil systems.
Trust's turbocharged builds and parts were a large part of the Japanese tuning scene of the 1980s and 1990s, and GReddy parts are still made for most Japanese performance cars, from the Skyline GT-R and Supra to the GR86 and Civic Type R.
