Engine

Hilux Surf - KZN130W

KZN130W

Genuine Engine parts for the Hilux Surf OEM parts supplied direct from Toyota Japan and shipped worldwide.

Part			Price
Nut, Turbo USD $ 1.78
90179-10128	Nut, Turbo		USD $ 1.78 281 JPY
Clamp (for Air Cleaner Hose, No. 1) USD $ 2.17
96111-10800	Clamp (for Air Cleaner Hose, No. 1)		USD $ 2.17 342 JPY
Manifold, Intake
17101-67010	Manifold, Intake		DISCONTINUED
Grommet, Screw (for Glow Plug) USD $ 1.62
90189-04024	Grommet, Screw (for Glow Plug)		USD $ 1.62 256 JPY
Idler Sub-assy, Timing Belt, No.1 USD $ 41.34
13505-67050	Idler Sub-assy, Timing Belt, No.1		USD $ 41.34 6,530 JPY
Camshaft USD $ 338.04
13501-67010	Camshaft		USD $ 338.04 53,392 JPY
Spring, Compression (for Inner) USD $ 4.66
90504-49001	Spring, Compression (for Inner)		USD $ 4.66 736 JPY
Bolt, Union (for Fuel Pipe Support) USD $ 3.25
90401-12097	Bolt, Union (for Fuel Pipe Support)		USD $ 3.25 513 JPY
Pump Assy, Injection Or Supply USD $ 2,395.60
22100-67070	Pump Assy, Injection Or Supply		USD $ 2,395.60 378,378 JPY
Sensor, Throttle Position (for E.f.i.) USD $ 108.63
89452-22090	Sensor, Throttle Position (for E.f.i.)		USD $ 108.63 17,157 JPY
Element Sub-assy, Fuel Filter USD $ 51.07
23303-64010	Element Sub-assy, Fuel Filter		USD $ 51.07 8,067 JPY
Clamp (for Air Cleaner Hose, No. 1) USD $ 4.80
96111-10880	Clamp (for Air Cleaner Hose, No. 1)		USD $ 4.80 758 JPY
Sensor, Water Temperature (for E.f.i.) USD $ 23.43
89422-35010	Sensor, Water Temperature (for E.f.i.)		USD $ 23.43 3,700 JPY
Valve Assy, Timing Control
23010-67030	Valve Assy, Timing Control		DISCONTINUED
Starter Kit, Motor Terminal
28226-54220	Starter Kit, Motor Terminal		CURRENTLY UNAVAILABLE
Plunger, Magnet Switch USD $ 13.54
28235-17030	Plunger, Magnet Switch		USD $ 13.54 2,139 JPY
Starter Kit, Battery Terminal USD $ 7.38
28226-54320	Starter Kit, Battery Terminal		USD $ 7.38 1,166 JPY
Bolt, Stud USD $ 2.03
90116-08348	Bolt, Stud		USD $ 2.03 320 JPY
Nut USD $ 1.49
90179-06158	Nut		USD $ 1.49 235 JPY
Timing Belt
13568-69085	Timing Belt		DISCONTINUED
Sensor, Inlet Air Temperature (for E.f.i.) USD $ 32.82
89424-12010	Sensor, Inlet Air Temperature (for E.f.i.)		USD $ 32.82 5,184 JPY
Bearing (for Alternator Rotor) USD $ 5.43
90099-10140	Bearing (for Alternator Rotor)		USD $ 5.43 858 JPY
Shim (for Combustion Chamber) USD $ 4.66
11165-67020	Shim (for Combustion Chamber)		USD $ 4.66 736 JPY
Intake Pipe
17113-67010	Intake Pipe		DISCONTINUED
Hose, Air, No.2(for Turbocharger) USD $ 17.85
17342-67010	Hose, Air, No.2(for Turbocharger)		USD $ 17.85 2,820 JPY

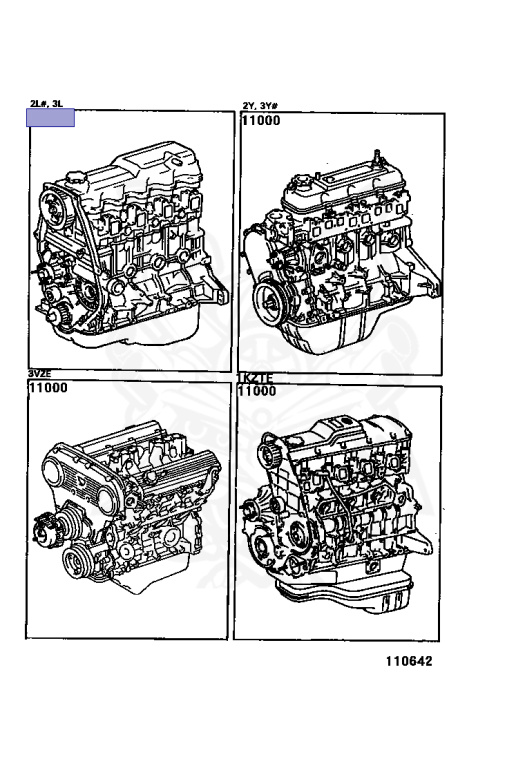

Engine Assy, Partial USD $ 5,689.15
19000-67060	Engine Assy, Partial		USD $ 5,689.15 898,584 JPY
Bolt
91611-61020	Bolt		DISCONTINUED
Nut
94115-41200	Nut		DISCONTINUED
Glow Plug Assy
19850-67020	Glow Plug Assy		DISCONTINUED
Clip USD $ 1.53
82711-14110	Clip		USD $ 1.53 241 JPY
Holder & Nozzle Set, Nozzle USD $ 260.21
23600-69105	Holder & Nozzle Set, Nozzle		USD $ 260.21 41,100 JPY
Tensioner Assy, Chain, No.1
13540-67010	Tensioner Assy, Chain, No.1		DISCONTINUED
Turbocharger Sub-assy
17201-67010	Turbocharger Sub-assy		DISCONTINUED
Valve Sub-assy, Injection Pump Delivery USD $ 14.26
22104-17010	Valve Sub-assy, Injection Pump Delivery		USD $ 14.26 2,253 JPY
Starter Clutch Sub-assy
28011-67030	Starter Clutch Sub-assy		DISCONTINUED
Gasket, Injection Pump USD $ 1.38
90301-49003	Gasket, Injection Pump		USD $ 1.38 218 JPY
O-Ring (for Distributive Head Plug)
90099-14052	O-Ring (for Distributive Head Plug)		DISCONTINUED
O-Ring (for Lever Connecting Pin)
22193-5B302	O-Ring (for Lever Connecting Pin)		DISCONTINUED
O-Ring (for Lever Connecting Pin)
22193-67030	O-Ring (for Lever Connecting Pin)		DISCONTINUED
Pipe Sub-assy, Injection, No.4 USD $ 14.75
23704-67020	Pipe Sub-assy, Injection, No.4		USD $ 14.75 2,330 JPY
Pipe Sub-assy, Injection, No.3 USD $ 14.68
23703-67021	Pipe Sub-assy, Injection, No.3		USD $ 14.68 2,318 JPY
Injection Pipe Sub-assy, No.1 USD $ 14.75
23701-67021	Injection Pipe Sub-assy, No.1		USD $ 14.75 2,330 JPY
NOZZLE ASSY USD $ 80.98
23620-69075	NOZZLE ASSY		USD $ 80.98 12,791 JPY
GASKET(FOR WARNING SWITCH) USD $ 1.82
23344-54010	GASKET(FOR WARNING SWITCH)		USD $ 1.82 288 JPY
GEAR, CAMSHAFT DRIVE USD $ 17.59
13528-67010	GEAR, CAMSHAFT DRIVE		USD $ 17.59 2,778 JPY
FLANGE, CAMSHAFT TIMING PULLEY, NO.1 USD $ 12.31
13585-67010	FLANGE, CAMSHAFT TIMING PULLEY, NO.1		USD $ 12.31 1,944 JPY
AIR CLEANER PIPE
17885-67010	AIR CLEANER PIPE		DISCONTINUED
NOZZLE LEAKAGE PIPE, NO.4 USD $ 16.30
23764-67010	NOZZLE LEAKAGE PIPE, NO.4		USD $ 16.30 2,574 JPY
INTAKE FLANGE GASKET USD $ 7.14
17116-67010	INTAKE FLANGE GASKET		USD $ 7.14 1,127 JPY
DOUBLE SIDED BOLT USD $ 2.63
90109-08234	DOUBLE SIDED BOLT		USD $ 2.63 416 JPY
GASKET In stock and ready to ship! USD $ 2.43
90430-12221	GASKET	In stock and ready to ship!	USD $ 2.43 384 JPY
Gasket, Pipe Fuel Delivary Inlet USD $ 2.30
90201-12109	Gasket, Pipe Fuel Delivary Inlet		USD $ 2.30 363 JPY
Fuel Hose USD $ 4.66
95333-04020	Fuel Hose		USD $ 4.66 736 JPY
GASKET USD $ 2.03
90430-12245	GASKET		USD $ 2.03 320 JPY
BOLT USD $ 1.29
91656-40616	BOLT		USD $ 1.29 204 JPY
Relay, Computer (for EFI) USD $ 37.21
90987-02009	Relay, Computer (for EFI)		USD $ 37.21 5,877 JPY
O-ring, Cooler Evaporator No.1(discharge) USD $ 2.11
90099-14120	O-ring, Cooler Evaporator No.1(discharge)		USD $ 2.11 334 JPY
O-ring, Cooler Evaporator No.1(suction) USD $ 2.25
90099-14121	O-ring, Cooler Evaporator No.1(suction)		USD $ 2.25 356 JPY
GASKET (FOR TURBO WATER PIPE) USD $ 1.55
16347-67010	GASKET (FOR TURBO WATER PIPE)		USD $ 1.55 245 JPY

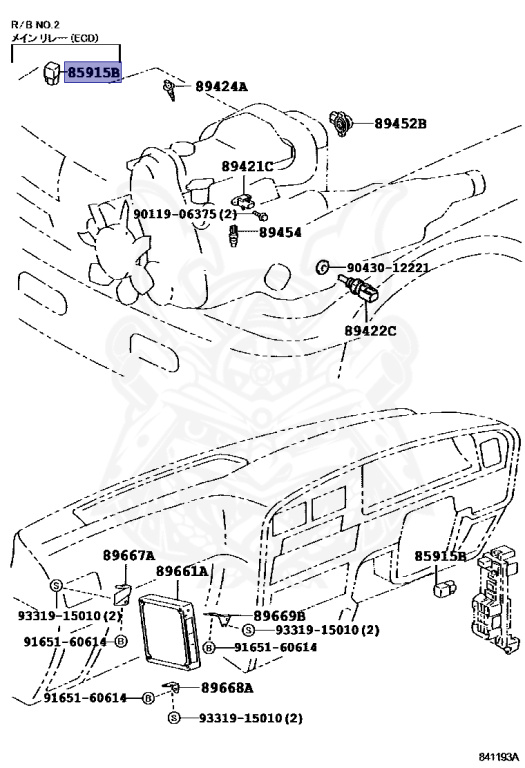

RELAY USD $ 29.69
85915-30050	RELAY		USD $ 29.69 4,690 JPY
SENSOR, FUEL TEMPERATURE USD $ 20.15
89454-60010	SENSOR, FUEL TEMPERATURE		USD $ 20.15 3,182 JPY
PISTON SUB-ASSY w/ PIN USD $ 146.39
13101-67020-01	PISTON SUB-ASSY w/ PIN		USD $ 146.39 23,122 JPY
Bolt, Flywheel Setting USD $ 2.70
90105-13009	Bolt, Flywheel Setting		USD $ 2.70 427 JPY
Crankshaft Pulley USD $ 133.72
13408-67020	Crankshaft Pulley		USD $ 133.72 21,120 JPY
Switch Assy, Neutral Start USD $ 98.90
84540-30270	Switch Assy, Neutral Start		USD $ 98.90 15,621 JPY
Bolt USD $ 1.03
90119-06437	Bolt		USD $ 1.03 163 JPY
Ring, O (for Manual Transmission Oil Cooler Tube Union) USD $ 2.57
90301-11006	Ring, O (for Manual Transmission Oil Cooler Tube Union)		USD $ 2.57 406 JPY
Collar USD $ 1.75
90253-10004	Collar		USD $ 1.75 277 JPY
Gasket (for Oil Pan Drain Plug) USD $ 1.62
90430-12031	Gasket (for Oil Pan Drain Plug)		USD $ 1.62 256 JPY
Head Sub-assy, Cylinder
11101-69125	Head Sub-assy, Cylinder		DISCONTINUED
Holder Assy, Alternator Brush USD $ 13.54
27370-75060	Holder Assy, Alternator Brush		USD $ 13.54 2,139 JPY

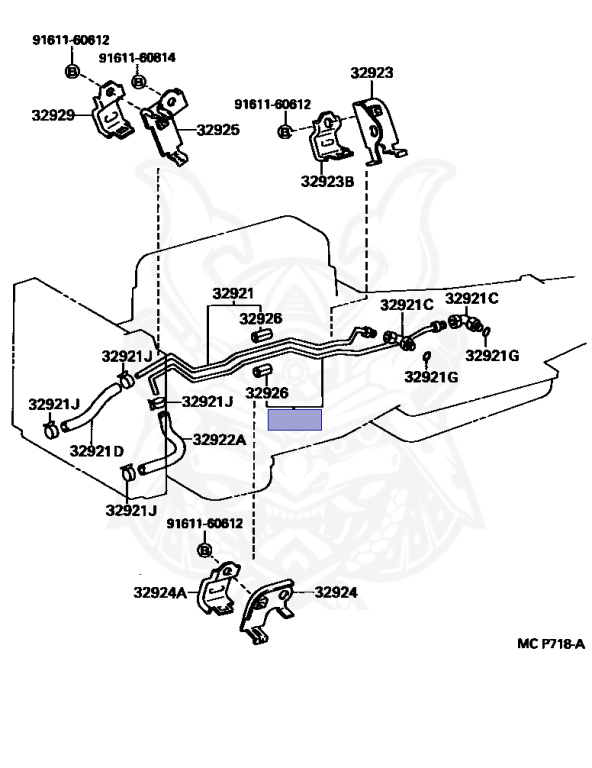

Cushion, Oil Cooler Tube (mtm) USD $ 1.61
32926-30020	Cushion, Oil Cooler Tube (mtm)		USD $ 1.61 255 JPY
Venturi Assy
26100-67040	Venturi Assy		DISCONTINUED
Hose USD $ 4.32
90999-92002	Hose		USD $ 4.32 683 JPY
Plug (for Oil Pan Drain) USD $ 2.17
90341-12012	Plug (for Oil Pan Drain)		USD $ 2.17 342 JPY
Insulator, Engine Mounting, Front USD $ 48.64
12361-67020	Insulator, Engine Mounting, Front		USD $ 48.64 7,683 JPY
Stabilizer, Engine Mounting USD $ 19.21
12381-67010	Stabilizer, Engine Mounting		USD $ 19.21 3,034 JPY
Cylinder Head Sub-assy
11101-69126	Cylinder Head Sub-assy		CURRENTLY UNAVAILABLE
JOINT, NO.1 (FOR IDLE UP DIVICE) USD $ 1.78
90413-04005	JOINT, NO.1 (FOR IDLE UP DIVICE)		USD $ 1.78 281 JPY
Pin, Straight (for Camshaft Knock) USD $ 1.82
90250-05121	Pin, Straight (for Camshaft Knock)		USD $ 1.82 288 JPY
Gasket, Cylinder Head Cover USD $ 12.81
11213-67010	Gasket, Cylinder Head Cover		USD $ 12.81 2,024 JPY
BLOCK SUB-ASSY, CYLINDER USD $ 2,429.25
11401-69545	BLOCK SUB-ASSY, CYLINDER		USD $ 2,429.25 383,692 JPY
OIL CHECK VALVE SUB-ASSY USD $ 5.79
15605-54010	OIL CHECK VALVE SUB-ASSY		USD $ 5.79 915 JPY
WASHER USD $ 3.44
13753-54010	WASHER		USD $ 3.44 543 JPY
Venturi Gasket USD $ 5.60
26171-67010	Venturi Gasket		USD $ 5.60 885 JPY
Intake Manifold USD $ 184.83
17101-67011	Intake Manifold		USD $ 184.83 29,193 JPY
Camshaft Timing Pulley USD $ 17.59
13523-17010	Camshaft Timing Pulley		USD $ 17.59 2,778 JPY
Cylinder Head Cover Sub-assy USD $ 151.62
11210-67010	Cylinder Head Cover Sub-assy		USD $ 151.62 23,948 JPY
Washer USD $ 3.30
90210-08039	Washer		USD $ 3.30 522 JPY
Crankshaft Position Sensor USD $ 37.29
90919-05005	Crankshaft Position Sensor		USD $ 37.29 5,890 JPY
Nut
90179-10016	Nut		DISCONTINUED

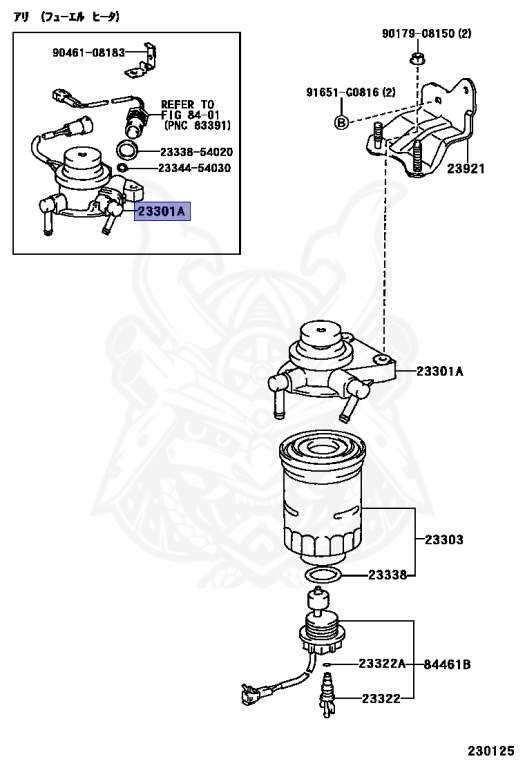

CAP ASSY, FUEL FILTER
23301-67030	CAP ASSY, FUEL FILTER		DISCONTINUED
Clamp USD $ 1.03
90467-11061	Clamp		USD $ 1.03 163 JPY

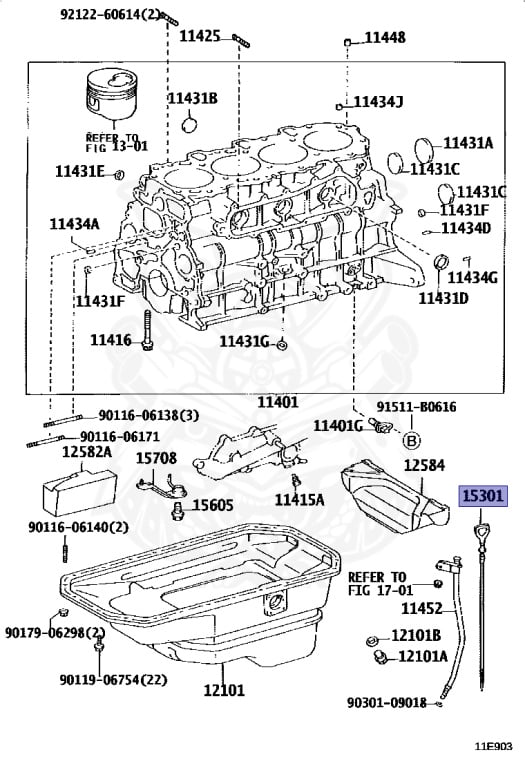

Oile Level Dipstick USD $ 10.46
15301-67020	Oile Level Dipstick		USD $ 10.46 1,652 JPY
BUSH, STEEL USD $ 17.39
15116-54021	BUSH, STEEL		USD $ 17.39 2,747 JPY
Oil Filter Sub-assy USD $ 29.43
90915-30002	Oil Filter Sub-assy		USD $ 29.43 4,648 JPY
BOLT USD $ 1.29
90119-06749	BOLT		USD $ 1.29 203 JPY
CLIP USD $ 1.42
90467-14001	CLIP		USD $ 1.42 224 JPY
UNION BOLT USD $ 3.25
96341-41603	UNION BOLT		USD $ 3.25 513 JPY
Fuel filter sealing ring
23344-64010	Fuel filter sealing ring		DISCONTINUED
O-RING USD $ 3.09
96721-24018	O-RING		USD $ 3.09 488 JPY
CLEANER ASSY, AIR USD $ 359.73
17700-67080	CLEANER ASSY, AIR		USD $ 359.73 56,818 JPY
Air Filter
17801-67050	Air Filter		DISCONTINUED
PIPE SUB-ASSY, TURBO OIL INLET USD $ 28.21
15407-67010	PIPE SUB-ASSY, TURBO OIL INLET		USD $ 28.21 4,456 JPY
GASKET, TURBO OIL INLET USD $ 5.55
15471-58010	GASKET, TURBO OIL INLET		USD $ 5.55 876 JPY
Exhaust manifold
17141-67020	Exhaust manifold		DISCONTINUED
GASKET, EXHAUST MANIFOLD TO HEAD USD $ 32.97
17173-67020	GASKET, EXHAUST MANIFOLD TO HEAD		USD $ 32.97 5,208 JPY
GASKET, COMPRESSOR INLET USD $ 2.77
17276-67010	GASKET, COMPRESSOR INLET		USD $ 2.77 438 JPY
GASKET, TURBO TO EXHAUST MANIFOLD USD $ 7.38
17278-67010	GASKET, TURBO TO EXHAUST MANIFOLD		USD $ 7.38 1,166 JPY
GASKET, TURBINE OUTLET ELBOW USD $ 14.43
17279-67010	GASKET, TURBINE OUTLET ELBOW		USD $ 14.43 2,279 JPY
CLAMP (FOR AIR CLEANER HOSE, NO.2) USD $ 4.25
90467-53002	CLAMP (FOR AIR CLEANER HOSE, NO.2)		USD $ 4.25 672 JPY
NUT USD $ 2.50
90179-08012	NUT		USD $ 2.50 395 JPY
WASHER USD $ 1.69
90201-10109	WASHER		USD $ 1.69 267 JPY
PIN, STRAIGHT (FOR COMBUSTION CHAMBER) USD $ 1.58
90250-02046	PIN, STRAIGHT (FOR COMBUSTION CHAMBER)		USD $ 1.58 250 JPY

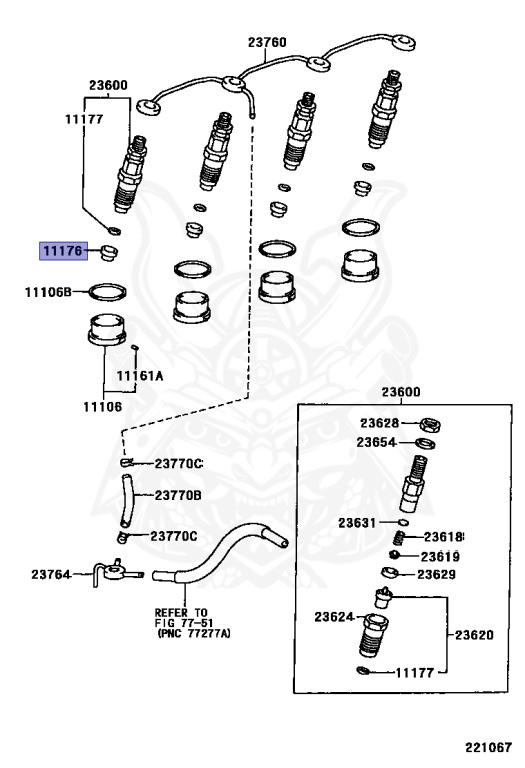

SEAT, INJECTION NOZZLE USD $ 3.30
11176-67010	SEAT, INJECTION NOZZLE		USD $ 3.30 522 JPY
PIN, NOZZLE HOLDER PRESSURE
23619-64010	PIN, NOZZLE HOLDER PRESSURE		DISCONTINUED
NOZZLE LEAKAGE PIPE ASSY USD $ 32.51
23760-67020	NOZZLE LEAKAGE PIPE ASSY		USD $ 32.51 5,135 JPY
INSULATOR, REAR COIL SPRING USD $ 16.06
48257-35010	INSULATOR, REAR COIL SPRING		USD $ 16.06 2,536 JPY
INSULATOR, REAR COIL SPRING, LOWER USD $ 11.43
48258-35010	INSULATOR, REAR COIL SPRING, LOWER		USD $ 11.43 1,805 JPY
VALVE, INTAKE USD $ 10.81
13711-54020	VALVE, INTAKE		USD $ 10.81 1,707 JPY
WASHER, PLATE (FOR VALVE SPRING SEAT) USD $ 1.75
90201-23003	WASHER, PLATE (FOR VALVE SPRING SEAT)		USD $ 1.75 277 JPY
RETAINER, VALVE SPRING USD $ 2.45
13741-54020	RETAINER, VALVE SPRING		USD $ 2.45 387 JPY
LOCK, VALVE SPRING RETAINER USD $ 2.22
90913-03014	LOCK, VALVE SPRING RETAINER		USD $ 2.22 351 JPY
LIFTER, VALVE USD $ 12.97
13751-54010	LIFTER, VALVE		USD $ 12.97 2,048 JPY
Tray, Battery
74431-14030	Tray, Battery		DISCONTINUED
Washer USD $ 1.46
94512-00600	Washer		USD $ 1.46 230 JPY
Nut USD $ 1.20
94180-40600	Nut		USD $ 1.20 190 JPY
V-Belt (for Fan & Alternator) USD $ 28.13
90916-02385	V-Belt (for Fan & Alternator)		USD $ 28.13 4,443 JPY
Gasket (for Oil Pan Drain Plug)
90430-12027	Gasket (for Oil Pan Drain Plug)		DISCONTINUED
O-Ring (for Oil Pump) USD $ 3.18
96721-24022	O-Ring (for Oil Pump)		USD $ 3.18 502 JPY
PLUG USD $ 2.21
90341-18015	PLUG		USD $ 2.21 349 JPY
BRACKET, FUEL TANK CAP LOCK CONTROL ROD
77338-89105	BRACKET, FUEL TANK CAP LOCK CONTROL ROD		DISCONTINUED
OIL FILLER CAP ASSY USD $ 5.55
12180-55010	OIL FILLER CAP ASSY		USD $ 5.55 876 JPY
GASKET, TIMING GEAR (OR CHAIN) COVER USD $ 14.75
11328-67020	GASKET, TIMING GEAR (OR CHAIN) COVER		USD $ 14.75 2,330 JPY
GASKET, OIL PUMP RELIEF VALVE USD $ 2.86
15134-67010	GASKET, OIL PUMP RELIEF VALVE		USD $ 2.86 452 JPY
Bolt USD $ 1.61
91611-61055	Bolt		USD $ 1.61 255 JPY
PLUG, TIGHT USD $ 2.10
96411-63500	PLUG, TIGHT		USD $ 2.10 332 JPY
Gasket Kit, Engine Overhaul
04111-67020	Gasket Kit, Engine Overhaul		DISCONTINUED
SEAL, OIL USD $ 3.78
90311-58006	SEAL, OIL		USD $ 3.78 597 JPY
SEAL, ENGINE REAR OIL USD $ 13.37
90311-95008	SEAL, ENGINE REAR OIL		USD $ 13.37 2,112 JPY
FILTER SUB-ASSY, FUEL SUCTION TUBE USD $ 7.95
77023-22040	FILTER SUB-ASSY, FUEL SUCTION TUBE		USD $ 7.95 1,256 JPY
Fuel tank filler pipe
77201-35440	Fuel tank filler pipe		DISCONTINUED
GASKET USD $ 2.45
15134-67020	GASKET		USD $ 2.45 387 JPY
CONNECTOR, GLOW PLUG NO.1
19871-67020	CONNECTOR, GLOW PLUG NO.1		DISCONTINUED
Computer, Engine Control
89661-3D100	Computer, Engine Control		DISCONTINUED
Filter, Air
88568-89101	Filter, Air		DISCONTINUED
BOLT (FOR OIL RECEIVER PIPE) USD $ 1.47
91651-60618	BOLT (FOR OIL RECEIVER PIPE)		USD $ 1.47 232 JPY
BOLT (FOR CYLINDER HEAD SET) USD $ 8.29
90910-02112	BOLT (FOR CYLINDER HEAD SET)		USD $ 8.29 1,310 JPY
BOLT (FOR PRESSURE REGULATOR VALVE NO.2) USD $ 1.35
90105-05003	BOLT (FOR PRESSURE REGULATOR VALVE NO.2)		USD $ 1.35 213 JPY
Pin, Vacuum Pump Dowel, No.1 USD $ 1.35
29311-76010	Pin, Vacuum Pump Dowel, No.1		USD $ 1.35 213 JPY
INSULATOR, ENGINE MOUNTING, REAR NO.1 USD $ 87.55
12371-65010	INSULATOR, ENGINE MOUNTING, REAR NO.1		USD $ 87.55 13,828 JPY
Relay Assy, Fuel Pump USD $ 23.43
90987-03003	Relay Assy, Fuel Pump		USD $ 23.43 3,700 JPY
PLATE, ENGINE NAME USD $ 2.80
11291-67010	PLATE, ENGINE NAME		USD $ 2.80 443 JPY
Plate, Engine Oil Caution USD $ 1.98
15369-54010	Plate, Engine Oil Caution		USD $ 1.98 313 JPY
LABEL, GLOW PLUG CAUTION
19869-67010	LABEL, GLOW PLUG CAUTION		DISCONTINUED
Label USD $ 3.72
13564-10010	Label		USD $ 3.72 587 JPY
VENTILATION HOSE USD $ 6.57
12261-67010	VENTILATION HOSE		USD $ 6.57 1,037 JPY
Clip (for Ventilation Hose No. 2) USD $ 1.86
90467-22010	Clip (for Ventilation Hose No. 2)		USD $ 1.86 293 JPY
VENTILATION HOSE, NO.2 USD $ 8.26
12262-67010	VENTILATION HOSE, NO.2		USD $ 8.26 1,305 JPY
FILTER, GAS USD $ 8.83
90917-11036	FILTER, GAS		USD $ 8.83 1,395 JPY
CLAMP USD $ 1.93
90929-01327	CLAMP		USD $ 1.93 305 JPY
Oil pan
12101-67070	Oil pan		DISCONTINUED
Inlet manifold gasket
17177-67010	Inlet manifold gasket		DISCONTINUED
SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-50017	SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)		DISCONTINUED
GASKET, EGR INLET USD $ 3.11
25628-67010	GASKET, EGR INLET		USD $ 3.11 491 JPY
BOLT, STUD USD $ 1.41
90116-06048	BOLT, STUD		USD $ 1.41 223 JPY
BOLT, W/WASHER (FOR REPAIR ACTUATOR SET) USD $ 1.35
91621-60822	BOLT, W/WASHER (FOR REPAIR ACTUATOR SET)		USD $ 1.35 213 JPY
GASKET, OIL STRAINER, NO.2 USD $ 1.98
90430-10010	GASKET, OIL STRAINER, NO.2		USD $ 1.98 313 JPY
GASKET, VALVE BODY, NO.1 USD $ 5.36
35433-30064	GASKET, VALVE BODY, NO.1		USD $ 5.36 846 JPY
Oil tube
32922-35270	Oil tube		DISCONTINUED
GASKET (FOR OIL FILLER CAP) USD $ 1.89
90430-37004	GASKET (FOR OIL FILLER CAP)		USD $ 1.89 299 JPY
Label, Engine Service Information
11296-67020	Label, Engine Service Information		DISCONTINUED
Washer, Starter Idle Gear Clutch
28222-77090	Washer, Starter Idle Gear Clutch		CURRENTLY UNAVAILABLE
KNOB, FUEL TANK CAP
77319-89103-S4	KNOB, FUEL TANK CAP		DISCONTINUED

We ship to the United States and 150 other countries.

Japan Post EMS & ePacket, FedEx, DHL and more.

Associated JDM Parts

326 Power Wheel Nut Large + Crown Cap Set

USD $ 45.96 to 47.64

326 Power Wheel Nut Medium + Crown Cap Set

USD $ 43.67

About NENGUN

Since the year 2000, NENGUN has supplied over 500,000 parts direct from Fukuoka, Japan to 170 countries worldwide. If you have any questions, our experienced and friendly customer service team is always happy to help, please send us an enquiry.
