Toda High Comp Piston Kit - B16/B18
Toda

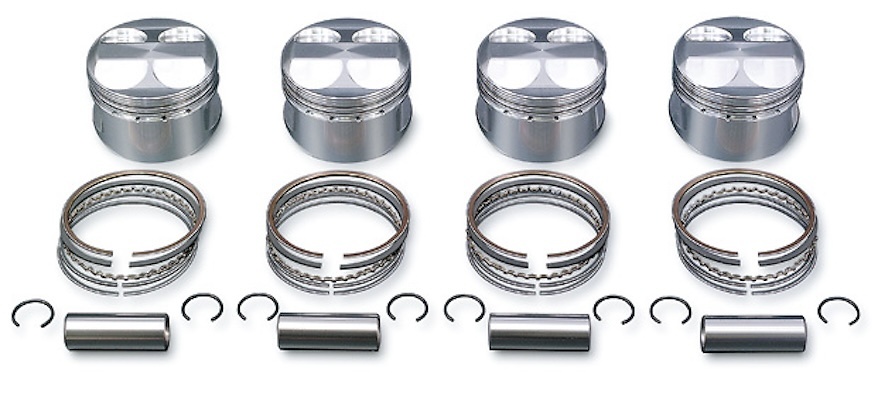

TODA Racing offers high compression forged pistons for the Honda B series DOHC VTEC engines. The kit comes complete with forged pistons, rings, clips, and heavy duty wrist pins. Offers great gains when combined with Spec B and Spec C camshafts. TODA pistons maintain the Honda factory piston to wall clearance and allow for quiet and reliable operation.

The basic form of the piston is an elliptical barrel. This forms the basis from which each part is subjected to high loads and measured for thermal expansion to accuracy of 1/1000(mm). The top edge of the piston uses a castellation design to reduce sticking, improve lubrication and sealing. The design also acts as a scuff-band to reduce run in time.

TODA piston also feature improved oil drainage with redesigned oil channels. Improved oil drainage reduces piston weight during engine operations which is ideal for high rpm use.

TODA pistons are produced in house using a 3000 ton press and come fully balanced within 0.25 grams of each other.

Vehicle Product   Price Order
B16A
Honda B16A/B16B/B18C 81.00mm (B16A 1595cc)( B18C 1797cc)
13010-B16-000
USD $ 743.19
USD $ 844.53
B16A
Honda B16A/B16B/B18C 81.25mm (B16A1605cc)(B18C 1808cc)
13020-B16-000
USD $ 743.19
USD $ 844.53
B16A
Honda B16A/B16B/B18C 81.50mm (B16A 1615cc)( B18C 1820cc)
13030-B16-000
USD $ 743.19
USD $ 844.53
B16A
Honda B16A/B16B/B18C 82.00mm (B16A 1635cc)(B18C 1842cc)
13040-B16-000
USD $ 743.19
USD $ 844.53
B16B
Honda B16A/B16B/B18C 81.00mm (B16A 1595cc)( B18C 1797cc)
13010-B16-000
USD $ 743.19
USD $ 844.53
B16B
Honda B16A/B16B/B18C 81.25mm (B16A1605cc)(B18C 1808cc)
13020-B16-000
USD $ 743.19
USD $ 844.53
B16B
Honda B16A/B16B/B18C 81.50mm (B16A 1615cc)( B18C 1820cc)
13030-B16-000
USD $ 743.19
USD $ 844.53
B16B
Honda B16A/B16B/B18C 82.00mm (B16A 1635cc)(B18C 1842cc)
13040-B16-000
USD $ 743.19
USD $ 844.53
B18C
Honda B16A/B16B/B18C 81.00mm (B16A 1595cc)( B18C 1797cc)
13010-B16-000
USD $ 743.19
USD $ 844.53
B18C
Honda B16A/B16B/B18C 81.25mm (B16A1605cc)(B18C 1808cc)
13020-B16-000
USD $ 743.19
USD $ 844.53
B18C
Honda B16A/B16B/B18C 81.50mm (B16A 1615cc)( B18C 1820cc)
13030-B16-000
USD $ 743.19
USD $ 844.53
B18C
Honda B16A/B16B/B18C 82.00mm (B16A 1635cc)(B18C 1842cc)
13040-B16-000
USD $ 743.19
USD $ 844.53
Product   Order
B16A
Honda B16A/B16B/B18C 81.00mm (B16A 1595cc)( B18C 1797cc)
13010-B16-000
USD $ 743.19
USD $ 844.53
B16A
Honda B16A/B16B/B18C 81.25mm (B16A1605cc)(B18C 1808cc)
13020-B16-000
USD $ 743.19
USD $ 844.53
B16A
Honda B16A/B16B/B18C 81.50mm (B16A 1615cc)( B18C 1820cc)
13030-B16-000
USD $ 743.19
USD $ 844.53
B16A
Honda B16A/B16B/B18C 82.00mm (B16A 1635cc)(B18C 1842cc)
13040-B16-000
USD $ 743.19
USD $ 844.53
B16B
Honda B16A/B16B/B18C 81.00mm (B16A 1595cc)( B18C 1797cc)
13010-B16-000
USD $ 743.19
USD $ 844.53
B16B
Honda B16A/B16B/B18C 81.25mm (B16A1605cc)(B18C 1808cc)
13020-B16-000
USD $ 743.19
USD $ 844.53
B16B
Honda B16A/B16B/B18C 81.50mm (B16A 1615cc)( B18C 1820cc)
13030-B16-000
USD $ 743.19
USD $ 844.53
B16B
Honda B16A/B16B/B18C 82.00mm (B16A 1635cc)(B18C 1842cc)
13040-B16-000
USD $ 743.19
USD $ 844.53
B18C
Honda B16A/B16B/B18C 81.00mm (B16A 1595cc)( B18C 1797cc)
13010-B16-000
USD $ 743.19
USD $ 844.53
B18C
Honda B16A/B16B/B18C 81.25mm (B16A1605cc)(B18C 1808cc)
13020-B16-000
USD $ 743.19
USD $ 844.53
B18C
Honda B16A/B16B/B18C 81.50mm (B16A 1615cc)( B18C 1820cc)
13030-B16-000
USD $ 743.19
USD $ 844.53
B18C
Honda B16A/B16B/B18C 82.00mm (B16A 1635cc)(B18C 1842cc)
13040-B16-000
USD $ 743.19
USD $ 844.53
