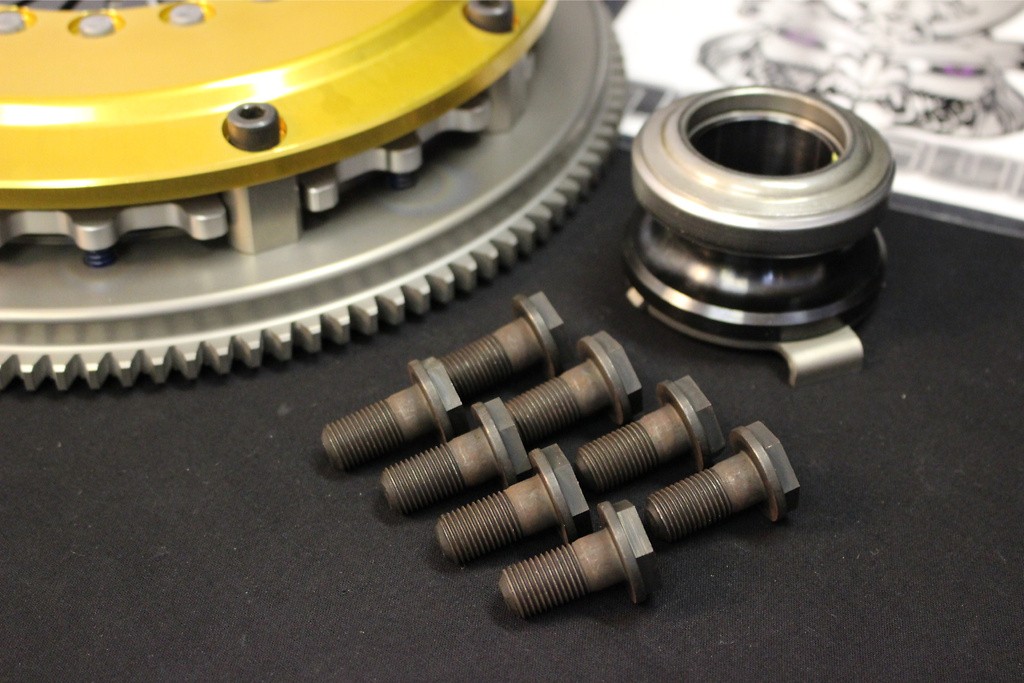

ORC 409 Series - Single Plate Clutch

The ORC Single Plate Clutch System ORC409D series clutch is rated to 420Nm and designed for lightly tuned performance cars.

ORC - 409 Series - Single Plate Clutch

The ORC Single Plate Clutch System 409 series clutch is rated to 420Nm and designed for lightly tuned performance cars. This series consists of a reinforced clutch system based on Ogura racing experience. Each vehicle application is designed individually based on the concept of strength & lightweight.

Features

ORC's 173 mm diameter small disk is suitable for torque transmission of 100kgfm & above.
The ORC systems uses the driving-hub clutch system.
The ORC system will improve the number of connecting shafts from 5 to 9 between the clutch cover, plate & flywheel.
The ORC improve the mating of the clutch cover with the plates by using a circular disk rather than a pentagon shaped disk. The circular shaped clutch cover & plates distribute the sudden torque generated evenly and will prevent the deformation of the clutch parts.
Slits are incorporated to the pressure plate & middle plate to dissipate heat, and protect them from warping due to excessive heat during hard driving.
The parts in the ORC clutch system are checked for its reliability & durability for strength in simulation using sophisticated Finite Element Method Analysis computer software.

All Ogura flywheel (ORC-FW) are designed specifically for each individual vehicle model. This is done via a thorough study of each engine model by collecting test & research data.
All ORC-FW are designed to be strong as well as lightweight using forged using a high grade SCM435 Chrome-molybdenum steel.
As per the ORC systems, all ORC-FW are tested for their strength & durability using the Finite Element Method Analysis.

Specifications

Standard Type rated to 420Nm (43kgf-m)
High Friction Type rated to 450Nm (45kgf-m) (B in the code)

This part is made to order and usually ships 9 days after payment.

Nissan

All

Silent

Silent High Friction

Standard

Vehicle	Part	Type	Operation	Dampered	Price
180SX - RS13	ORC-409DS-02N	Silent	Push Type	Dampered	USD $ 656.71 USD $ 878.54

180SX - RS13	ORC-409D-02N	Standard	Push Type	Dampered	USD $ 613.01 USD $ 820.08

180SX - RS13 CA18DET	ORC-409D-03N	Standard	Push Type	Dampered	USD $ 613.01 USD $ 820.08

Fairlady Z - 350Z - Z33 VQ35HR	ORC-409DS-NS0714	Silent	Push Type	Dampered	USD $ 811.67 USD $ 1,085.84

Fairlady Z - 350Z - Z33 VQ35HR	Must be used with Z-Speed Clutch Slave Cylinder ORC-409D-NS0714	Standard	Push Type	Dampered	USD $ 828.70 USD $ 1,108.62

Fairlady Z - 370Z - Z34	ORC-409DS-NS0714	Silent	Push Type	Dampered	USD $ 811.67 USD $ 1,085.84

Fairlady Z - 370Z - Z34	Must be used with Z-Speed Clutch Slave Cylinder ORC-409D-NS0714	Standard	Push Type	Dampered	USD $ 828.70 USD $ 1,108.62

Silvia - S13	ORC-409DS-02N	Silent	Push Type	Dampered	USD $ 656.71 USD $ 878.54

Silvia - S13	ORC-409D-02N	Standard	Push Type	Dampered	USD $ 613.01 USD $ 820.08

Silvia - S13 CA18DET	ORC-409D-03N	Standard	Push Type	Dampered	USD $ 613.01 USD $ 820.08

Silvia - S14	ORC-409DS-02N	Silent	Push Type	Dampered	USD $ 656.71 USD $ 878.54

Silvia - S14	ORC-409D-02N	Standard	Push Type	Dampered	USD $ 613.01 USD $ 820.08

Silvia - S15 5MT	ORC-409DS-02N	Silent	Push Type	Dampered	USD $ 656.71 USD $ 878.54

Silvia - S15 5MT	ORC-409D-02N	Standard	Push Type	Dampered	USD $ 613.01 USD $ 820.08

Silvia - S15 6MT	ORC-409DS-02N5	Silent	Push Type	Dampered	USD $ 624.36 USD $ 835.26

Silvia - S15 6MT	ORC-409D-02N5	Standard	Push Type	Dampered	USD $ 613.01 USD $ 820.08

Skyline - R32 GTS-t/4 - HCR32 RB25DET	ORC-409DS-01N	Silent	Push Type	Dampered	USD $ 624.36 USD $ 835.26

Skyline - R32 GTS-t/4 - HCR32 RB25DET	ORC-409DSB-01N 3 in stock and ready to ship!	Silent High Friction	Push Type	Dampered	USD $ 641.39 USD $ 858.04

Skyline - R32 GTS-t/4 - HCR32 RB25DET	ORC-409D-01N	Standard	Push Type	Dampered	USD $ 613.01 USD $ 820.08

Skyline - R33 GTS-t - ECR33 RB25DET	ORC-409DS-01N	Silent	Push Type	Dampered	USD $ 624.36 USD $ 835.26

Skyline - R33 GTS-t - ECR33 RB25DET	ORC-409DSB-01N 3 in stock and ready to ship!	Silent High Friction	Push Type	Dampered	USD $ 641.39 USD $ 858.04

Skyline - R33 GTS-t - ECR33 RB25DET	ORC-409D-01N	Standard	Push Type	Dampered	USD $ 613.01 USD $ 820.08

Skyline - R34 25GTT - ER34	ORC-P409D-NS0101	Standard	Pull Type	Dampered	USD $ 783.29 USD $ 1,047.88

Skyline - V36	ORC-409DS-NS0714	Silent	Push Type	Dampered	USD $ 811.67 USD $ 1,085.84

Skyline - V36	Must be used with Z-Speed Clutch Slave Cylinder ORC-409D-NS0714	Standard	Push Type	Dampered	USD $ 828.70 USD $ 1,108.62

Skyline GT-R - BNR32 early model	ORC-409DS-01N	Silent	Push Type	Dampered	USD $ 624.36 USD $ 835.26

Skyline GT-R - BNR32 early model	ORC-409DSB-01N 3 in stock and ready to ship!	Silent High Friction	Push Type	Dampered	USD $ 641.39 USD $ 858.04

Skyline GT-R - BNR32 early model	ORC-409D-01N	Standard	Push Type	Dampered	USD $ 613.01 USD $ 820.08

180SX - RS13

Type	Silent
Operation	Push Type
Dampered	Dampered

ORC-409DS-02N

USD $ 656.71

USD $ 878.54

180SX - RS13

Type	Standard
Operation	Push Type
Dampered	Dampered

ORC-409D-02N

USD $ 613.01

USD $ 820.08

180SX - RS13

CA18DET

Type	Standard
Operation	Push Type
Dampered	Dampered

ORC-409D-03N

USD $ 613.01

USD $ 820.08

Fairlady Z - 350Z - Z33

VQ35HR

Type	Silent
Operation	Push Type
Dampered	Dampered

ORC-409DS-NS0714

USD $ 811.67

USD $ 1,085.84

Fairlady Z - 350Z - Z33

VQ35HR

Must be used with Z-Speed Clutch Slave Cylinder

Type	Standard
Operation	Push Type
Dampered	Dampered

ORC-409D-NS0714

USD $ 828.70

USD $ 1,108.62

Fairlady Z - 370Z - Z34

Type	Silent
Operation	Push Type
Dampered	Dampered

ORC-409DS-NS0714

USD $ 811.67

USD $ 1,085.84

Fairlady Z - 370Z - Z34

Must be used with Z-Speed Clutch Slave Cylinder

Type	Standard
Operation	Push Type
Dampered	Dampered

ORC-409D-NS0714

USD $ 828.70

USD $ 1,108.62

Silvia - S13

Type	Silent
Operation	Push Type
Dampered	Dampered

ORC-409DS-02N

USD $ 656.71

USD $ 878.54

Silvia - S13

Type	Standard
Operation	Push Type
Dampered	Dampered

ORC-409D-02N

USD $ 613.01

USD $ 820.08

Silvia - S13

CA18DET

Type	Standard
Operation	Push Type
Dampered	Dampered

ORC-409D-03N

USD $ 613.01

USD $ 820.08

Silvia - S14

Type	Silent
Operation	Push Type
Dampered	Dampered

ORC-409DS-02N

USD $ 656.71

USD $ 878.54

Silvia - S14

Type	Standard
Operation	Push Type
Dampered	Dampered

ORC-409D-02N

USD $ 613.01

USD $ 820.08

Silvia - S15

5MT

Type	Silent
Operation	Push Type
Dampered	Dampered

ORC-409DS-02N

USD $ 656.71

USD $ 878.54

Silvia - S15

5MT

Type	Standard
Operation	Push Type
Dampered	Dampered

ORC-409D-02N

USD $ 613.01

USD $ 820.08

Silvia - S15

6MT

Type	Silent
Operation	Push Type
Dampered	Dampered

ORC-409DS-02N5

USD $ 624.36

USD $ 835.26

Silvia - S15

6MT

Type	Standard
Operation	Push Type
Dampered	Dampered

ORC-409D-02N5

USD $ 613.01

USD $ 820.08

Skyline - R32 GTS-t/4 - HCR32

RB25DET

Type	Silent
Operation	Push Type
Dampered	Dampered

ORC-409DS-01N

USD $ 624.36

USD $ 835.26

Skyline - R32 GTS-t/4 - HCR32

RB25DET

Type	Silent High Friction
Operation	Push Type
Dampered	Dampered

ORC-409DSB-01N

3 in stock and ready to ship!

USD $ 641.39

USD $ 858.04

Skyline - R32 GTS-t/4 - HCR32

RB25DET

Type	Standard
Operation	Push Type
Dampered	Dampered

ORC-409D-01N

USD $ 613.01

USD $ 820.08

Skyline - R33 GTS-t - ECR33

RB25DET

Type	Silent
Operation	Push Type
Dampered	Dampered

ORC-409DS-01N

USD $ 624.36

USD $ 835.26

Skyline - R33 GTS-t - ECR33

RB25DET

Type	Silent High Friction
Operation	Push Type
Dampered	Dampered

ORC-409DSB-01N

3 in stock and ready to ship!

USD $ 641.39

USD $ 858.04

Skyline - R33 GTS-t - ECR33

RB25DET

Type	Standard
Operation	Push Type
Dampered	Dampered

ORC-409D-01N

USD $ 613.01

USD $ 820.08

Skyline - R34 25GTT - ER34

Type	Standard
Operation	Pull Type
Dampered	Dampered

ORC-P409D-NS0101

USD $ 783.29

USD $ 1,047.88

Skyline - V36

Type	Silent
Operation	Push Type
Dampered	Dampered

ORC-409DS-NS0714

USD $ 811.67

USD $ 1,085.84

Skyline - V36

Must be used with Z-Speed Clutch Slave Cylinder

Type	Standard
Operation	Push Type
Dampered	Dampered

ORC-409D-NS0714

USD $ 828.70

USD $ 1,108.62

Skyline GT-R - BNR32

early model

Type	Silent
Operation	Push Type
Dampered	Dampered

ORC-409DS-01N

USD $ 624.36

USD $ 835.26

Skyline GT-R - BNR32

early model

Type	Silent High Friction
Operation	Push Type
Dampered	Dampered

ORC-409DSB-01N

3 in stock and ready to ship!

USD $ 641.39

USD $ 858.04

Skyline GT-R - BNR32

early model

Type	Standard
Operation	Push Type
Dampered	Dampered

ORC-409D-01N

USD $ 613.01

USD $ 820.08

Toyota

All

Silent

Standard

Vehicle	Part	Type	Operation	Dampered	Conversion Kit	Price
86 - ZN6	ORC-409D-TT1213A-SE	Standard	Pull Type	Dampered		USD $ 786.69 USD $ 1,052.43

Celica GT-Four - ST185H 3S-GTE	ORC-409DS-03T	Silent	Push Type	Dampered		USD $ 656.71 USD $ 878.54

Celica GT-Four - ST185H 3S-GTE	ORC-409D-03T	Standard	Push Type	Dampered		USD $ 613.01 USD $ 820.08

Celica GT-Four - ST205 3S-GTE	ORC-409DS-03T	Silent	Push Type	Dampered		USD $ 656.71 USD $ 878.54

Celica GT-Four - ST205 3S-GTE	ORC-409D-03T	Standard	Push Type	Dampered		USD $ 613.01 USD $ 820.08

Chaser - JZX90 1JZ-GTE	ORC-409D-02T	Standard	Push Type	Dampered	Included	USD $ 840.05 USD $ 1,123.81

Chaser - JZX100 1JZ-GTE	ORC-409D-02T	Standard	Push Type	Dampered	Included	USD $ 840.05 USD $ 1,123.81

Cresta - JZX90 1JZ-GTE	ORC-409D-02T	Standard	Push Type	Dampered	Included	USD $ 840.05 USD $ 1,123.81

Cresta - JZX100 1JZ-GTE	ORC-409D-02T	Standard	Push Type	Dampered	Included	USD $ 840.05 USD $ 1,123.81

Mark 2 - JZX90 1JZ-GTE	ORC-409D-02T	Standard	Push Type	Dampered	Included	USD $ 840.05 USD $ 1,123.81

Mark 2 - JZX100 1JZ-GTE	ORC-409D-02T	Standard	Push Type	Dampered	Included	USD $ 840.05 USD $ 1,123.81

Mark 2 - JZX110 1JZ-GTE	ORC-409D-02T	Standard	Push Type	Dampered	Included	USD $ 840.05 USD $ 1,123.81

MR2 - SW20 3S-GTE	ORC-409DS-03T	Silent	Push Type	Dampered		USD $ 656.71 USD $ 878.54

MR2 - SW20 3S-GTE	ORC-409D-03T	Standard	Push Type	Dampered		USD $ 613.01 USD $ 820.08

Soarer 2.5GT-T - JZZ30 1JZ-GTE	ORC-409D-02T	Standard	Push Type	Dampered	Included	USD $ 840.05 USD $ 1,123.81

Supra A70 MKIII - JZA70 1JZ-GTE	ORC-409D-02T	Standard	Push Type	Dampered	Included	USD $ 840.05 USD $ 1,123.81

86 - ZN6

Type	Standard
Operation	Pull Type
Dampered	Dampered

ORC-409D-TT1213A-SE

USD $ 786.69

USD $ 1,052.43

Celica GT-Four - ST185H

3S-GTE

Type	Silent
Operation	Push Type
Dampered	Dampered

ORC-409DS-03T

USD $ 656.71

USD $ 878.54

Celica GT-Four - ST185H

3S-GTE

Type	Standard
Operation	Push Type
Dampered	Dampered

ORC-409D-03T

USD $ 613.01

USD $ 820.08

Celica GT-Four - ST205

3S-GTE

Type	Silent
Operation	Push Type
Dampered	Dampered

ORC-409DS-03T

USD $ 656.71

USD $ 878.54

Celica GT-Four - ST205

3S-GTE

Type	Standard
Operation	Push Type
Dampered	Dampered

ORC-409D-03T

USD $ 613.01

USD $ 820.08

Chaser - JZX90

1JZ-GTE

Type	Standard
Operation	Push Type
Dampered	Dampered
Conversion Kit	Included

ORC-409D-02T

USD $ 840.05

USD $ 1,123.81

Chaser - JZX100

1JZ-GTE

Type	Standard
Operation	Push Type
Dampered	Dampered
Conversion Kit	Included

ORC-409D-02T

USD $ 840.05

USD $ 1,123.81

Cresta - JZX90

1JZ-GTE

Type	Standard
Operation	Push Type
Dampered	Dampered
Conversion Kit	Included

ORC-409D-02T

USD $ 840.05

USD $ 1,123.81

Cresta - JZX100

1JZ-GTE

Type	Standard
Operation	Push Type
Dampered	Dampered
Conversion Kit	Included

ORC-409D-02T

USD $ 840.05

USD $ 1,123.81

Mark 2 - JZX90

1JZ-GTE

Type	Standard
Operation	Push Type
Dampered	Dampered
Conversion Kit	Included

ORC-409D-02T

USD $ 840.05

USD $ 1,123.81

Mark 2 - JZX100

1JZ-GTE

Type	Standard
Operation	Push Type
Dampered	Dampered
Conversion Kit	Included

ORC-409D-02T

USD $ 840.05

USD $ 1,123.81

Mark 2 - JZX110

1JZ-GTE

Type	Standard
Operation	Push Type
Dampered	Dampered
Conversion Kit	Included

ORC-409D-02T

USD $ 840.05

USD $ 1,123.81

MR2 - SW20

3S-GTE

Type	Silent
Operation	Push Type
Dampered	Dampered

ORC-409DS-03T

USD $ 656.71

USD $ 878.54

MR2 - SW20

3S-GTE

Type	Standard
Operation	Push Type
Dampered	Dampered

ORC-409D-03T

USD $ 613.01

USD $ 820.08

Soarer 2.5GT-T - JZZ30

1JZ-GTE

Type	Standard
Operation	Push Type
Dampered	Dampered
Conversion Kit	Included

ORC-409D-02T

USD $ 840.05

USD $ 1,123.81

Supra A70 MKIII - JZA70

1JZ-GTE

Type	Standard
Operation	Push Type
Dampered	Dampered
Conversion Kit	Included

ORC-409D-02T

USD $ 840.05

USD $ 1,123.81

Mitsubishi

All

Standard

Vehicle	Part	Type	Operation	Dampered	Price
Lancer Evolution V - CP9A	ORC-P409D-MB0101	Standard	Pull Type	Dampered	USD $ 783.29 USD $ 1,047.88

Lancer Evolution VI - CP9A	ORC-P409D-MB0101	Standard	Pull Type	Dampered	USD $ 783.29 USD $ 1,047.88

Lancer Evolution VII - CT9A	ORC-P409D-MB0101	Standard	Pull Type	Dampered	USD $ 783.29 USD $ 1,047.88

Lancer Evolution VIII - CT9A	ORC-P409D-MB0101	Standard	Pull Type	Dampered	USD $ 783.29 USD $ 1,047.88

Lancer Evolution V - CP9A

Type	Standard
Operation	Pull Type
Dampered	Dampered

ORC-P409D-MB0101

USD $ 783.29

USD $ 1,047.88

Lancer Evolution VI - CP9A

Type	Standard
Operation	Pull Type
Dampered	Dampered

ORC-P409D-MB0101

USD $ 783.29

USD $ 1,047.88

Lancer Evolution VII - CT9A

Type	Standard
Operation	Pull Type
Dampered	Dampered

ORC-P409D-MB0101

USD $ 783.29

USD $ 1,047.88

Lancer Evolution VIII - CT9A

Type	Standard
Operation	Pull Type
Dampered	Dampered

ORC-P409D-MB0101

USD $ 783.29

USD $ 1,047.88

Honda

All

SE (Smart Engage)

Vehicle	Part	Type	Operation	Dampered	Conversion Kit	Release Bearing	Price	Order
Civic Type R - FK8	ORC-409D-HD0910-SE	SE (Smart Engage)	Push Type	Dampered	Yes	Yes	USD $ 726.53 USD $ 971.94

Civic Type R - FK8

Type	SE (Smart Engage)
Operation	Push Type
Dampered	Dampered
Conversion Kit	Yes
Release Bearing	Yes

ORC-409D-HD0910-SE

USD $ 726.53

USD $ 971.94

Mazda

All

Silent

Standard

Vehicle	Part	Type	Operation	Dampered	Price
RX-7 - FC3S	ORC-409DS-01Z	Silent	Push Type	Dampered	USD $ 656.71 USD $ 878.54

RX-7 - FC3S	ORC-409D-01Z	Standard	Push Type	Dampered	USD $ 613.01 USD $ 820.08

RX-7 - FD3S	ORC-P409D-MZ0102	Standard	Pull Type	Dampered	USD $ 783.29 USD $ 1,047.88

RX-7 - FC3S

Type	Silent
Operation	Push Type
Dampered	Dampered

ORC-409DS-01Z

USD $ 656.71

USD $ 878.54

RX-7 - FC3S

Type	Standard
Operation	Push Type
Dampered	Dampered

ORC-409D-01Z

USD $ 613.01

USD $ 820.08

RX-7 - FD3S

Type	Standard
Operation	Pull Type
Dampered	Dampered

ORC-P409D-MZ0102

USD $ 783.29

USD $ 1,047.88

Subaru

All

Standard

Vehicle	Part	Type	Operation	Dampered	Price
BRZ - ZC6	ORC-409D-TT1213A-SE	Standard	Pull Type	Dampered	USD $ 786.69 USD $ 1,052.43

Impreza Sports Wagon WRX - GF8	ORC-P409D-SB0101	Standard	Pull Type	Dampered	USD $ 783.29 USD $ 1,047.88

Impreza WRX - GC8	ORC-P409D-SB0101	Standard	Pull Type	Dampered	USD $ 783.29 USD $ 1,047.88

Impreza WRX STI - GDB	ORC-P409D-SB0102	Standard	Pull Type	Dampered	USD $ 783.29 USD $ 1,047.88

Impreza WRX STI - GRB	ORC-P409D-SB0102	Standard	Pull Type	Dampered	USD $ 783.29 USD $ 1,047.88

Impreza WRX STI - GVB	ORC-P409D-SB0102	Standard	Pull Type	Dampered	USD $ 783.29 USD $ 1,047.88

Legacy Touring Wagon - BG5	ORC-P409D-SB0101	Standard	Pull Type	Dampered	USD $ 783.29 USD $ 1,047.88

BRZ - ZC6

Type	Standard
Operation	Pull Type
Dampered	Dampered

ORC-409D-TT1213A-SE

USD $ 786.69

USD $ 1,052.43

Impreza Sports Wagon WRX - GF8

Type	Standard
Operation	Pull Type
Dampered	Dampered

ORC-P409D-SB0101

USD $ 783.29

USD $ 1,047.88

Impreza WRX - GC8

Type	Standard
Operation	Pull Type
Dampered	Dampered

ORC-P409D-SB0101

USD $ 783.29

USD $ 1,047.88

Impreza WRX STI - GDB

Type	Standard
Operation	Pull Type
Dampered	Dampered

ORC-P409D-SB0102

USD $ 783.29

USD $ 1,047.88

Impreza WRX STI - GRB

Type	Standard
Operation	Pull Type
Dampered	Dampered

ORC-P409D-SB0102

USD $ 783.29

USD $ 1,047.88

Impreza WRX STI - GVB

Type	Standard
Operation	Pull Type
Dampered	Dampered

ORC-P409D-SB0102

USD $ 783.29

USD $ 1,047.88

Legacy Touring Wagon - BG5

Type	Standard
Operation	Pull Type
Dampered	Dampered

ORC-P409D-SB0101

USD $ 783.29

USD $ 1,047.88

Discontinued

All

Silent

Vehicle	Part	Type	Operation	Dampered	Price
Chaser - JZX90 1JZ-GTE	ORC-409DS-02T	Silent	Push Type	Dampered	DISCONTINUED This part is no longer available

Chaser - JZX100 1JZ-GTE	ORC-409DS-02T	Silent	Push Type	Dampered	DISCONTINUED This part is no longer available

Cresta - JZX90 1JZ-GTE	ORC-409DS-02T	Silent	Push Type	Dampered	DISCONTINUED This part is no longer available

Cresta - JZX100 1JZ-GTE	ORC-409DS-02T	Silent	Push Type	Dampered	DISCONTINUED This part is no longer available

Mark 2 - JZX90 1JZ-GTE	ORC-409DS-02T	Silent	Push Type	Dampered	DISCONTINUED This part is no longer available

Mark 2 - JZX100 1JZ-GTE	ORC-409DS-02T	Silent	Push Type	Dampered	DISCONTINUED This part is no longer available

Mark 2 - JZX110 1JZ-GTE	ORC-409DS-02T	Silent	Push Type	Dampered	DISCONTINUED This part is no longer available

Soarer 2.5GT-T - JZZ30 1JZ-GTE	ORC-409DS-02T	Silent	Push Type	Dampered	DISCONTINUED This part is no longer available

Supra A70 MKIII - JZA70 1JZ-GTE	ORC-409DS-02T	Silent	Push Type	Dampered	DISCONTINUED This part is no longer available

Chaser - JZX90

1JZ-GTE

Type	Silent
Operation	Push Type
Dampered	Dampered

ORC-409DS-02T
