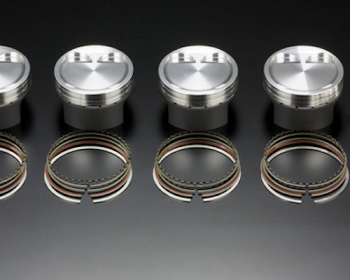

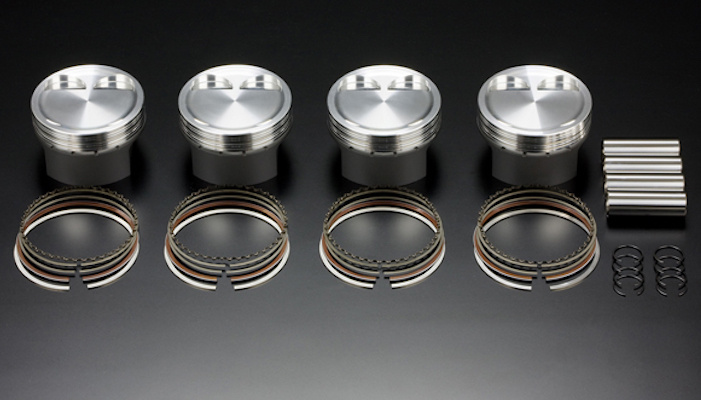

Toda M16A(ZC31S/ZC32S) High Comp Forged Piston Kit

The TODA M16A(ZC31S/ZC32S) High Comp Forged Piston Kit helps to increase the capacity through a larger bore improves overall engine performance.
Capacity: 1884cc - Bore: 85.0mm - 13050-M16-B00
Capacity: 1884cc - Bore: 85.0mm - 13050-M16-B00

The TODA M16A(ZC31S/ZC32S) High Comp Forged Piston Kit helps to increase the capacity from 1,586cc to 1,884cc through a larger bore improves overall engine performance. While retaining the standard stroke, the engines sporty characteristics are maintained.  A Defric Coating (Lubricous film) is applied to the piston skirts for a reduction in friction and loads as well as improved durability.

Features

  • Bore × Stroke: 85mm diameter × 83mm
  • Displacement: 1884cc
  • Crown Volume: -8.2cc/-9.9cc
  • Projection Height: -0.3mm
  • Reference Compression Ratio: (with TODA Head Gasket t=0.6mm) 12.2:1

Notes

  • TODA Power Liner KIT and TODA Head Gasket are required. (Sold separately)
  • Crown volume is measured "from the piston shoulder"/"from the deck of the block".
  • Piston shoulder height is measured from the deck of the block.
  • The compression ratios given above are only to be taken as a guide, measurements are required.

This part usually ships 28 days after payment, contact us for details.

Vehicle Part Capacity Bore   Price Order
Swift Sport - ZC31S
13050-M16-B00
 1884cc 85.0mm Swift Sport - ZC31S - Capacity: 1884cc - Bore: 85.0mm - 13050-M16-B00
USD $ 675.56
USD $ 734.31
Swift Sport - ZC32S
13050-M16-B00
 1884cc 85.0mm Swift Sport - ZC32S - Capacity: 1884cc - Bore: 85.0mm - 13050-M16-B00
USD $ 675.56
USD $ 734.31
Capacity: 1884cc - Bore: 85.0mm - 13050-M16-B00
Swift Sport - ZC31S
Capacity 1884cc
Bore 85.0mm
13050-M16-B00
USD $ 675.56
USD $ 734.31
Capacity: 1884cc - Bore: 85.0mm - 13050-M16-B00
Swift Sport - ZC32S
Capacity 1884cc
Bore 85.0mm
13050-M16-B00
USD $ 675.56
USD $ 734.31
Yes! We ship to the United States and 150 other countries worldwide!

Add parts to your shopping cart and begin checkout to select from Japan Post EMS & ePacket, FedEx, DHL and more shipping options.
